Kelly KLS4840D - Standard Wiring Diagram

Kelly KLS-D Brushless Motor Controller User’s Manual V 1.5.02
9

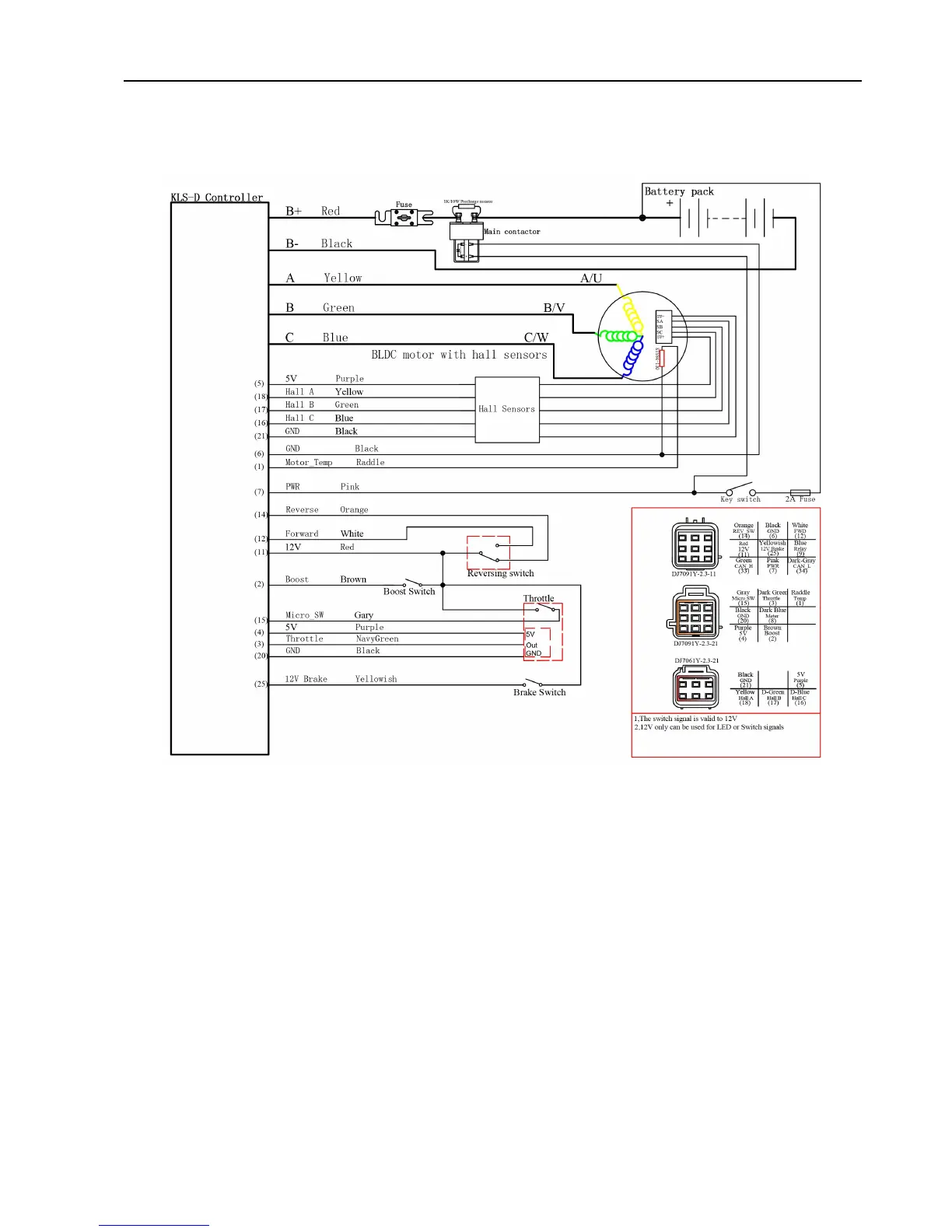

3.2.2 Standard Wiring of KLS-D Controller
Figure 3: KLS-D controller standard wiring
(Battery voltage can be used for controller supply)
