Kelly KLS4840D - Pin Definition of KLS-D Controller

Kelly KLS-D Brushless Motor Controller User’s Manual V 1.5.02
7
3.2 Connections
3.2.1 Pin definition of KLS-D Controller

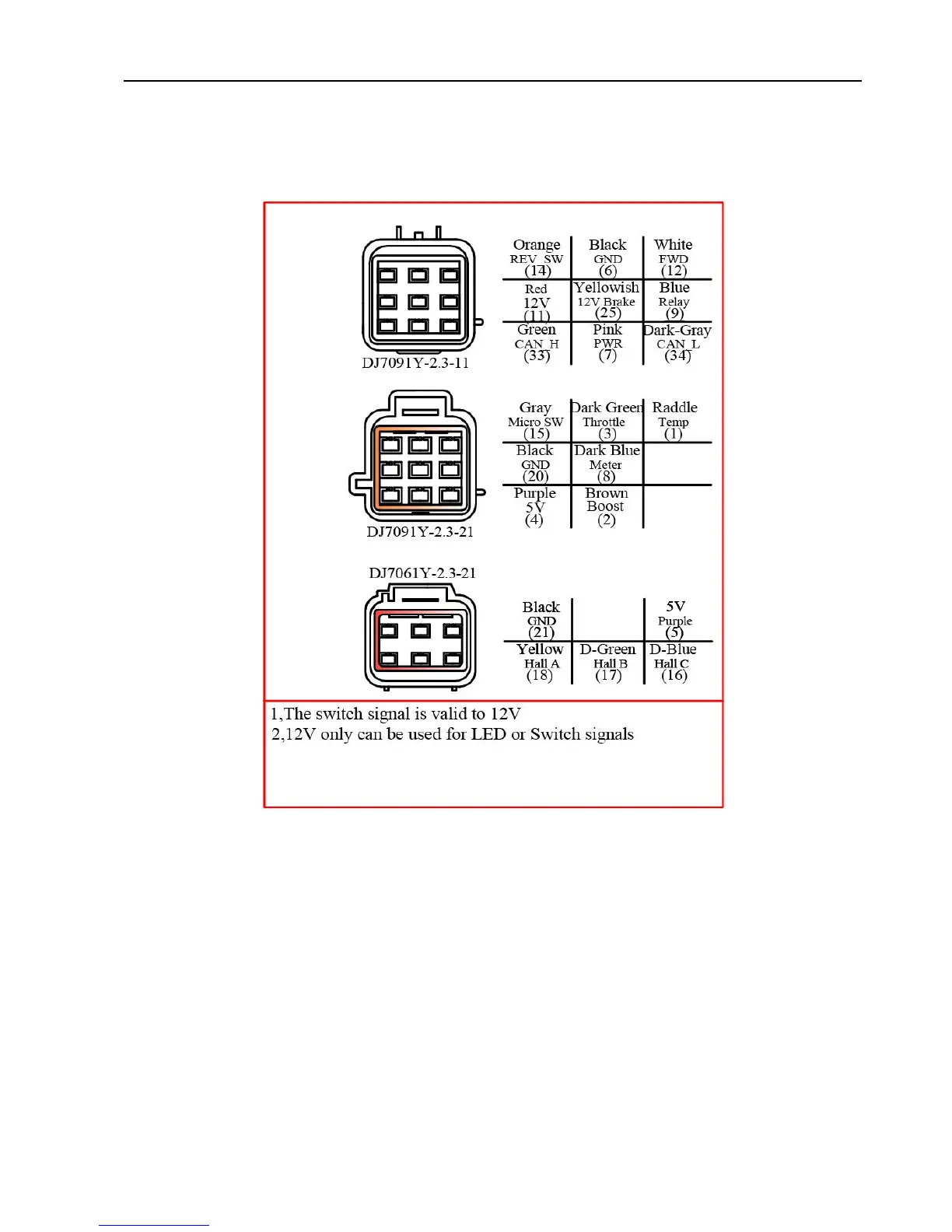

Figure 2: waterproof connector
DJ7091Y-2.3-11 Pin Definition
(14) REV_SW: Reverse switch input. Orange
(6) RTN: Signal return or power supply return. Black
(12) FWD: Forward switch White
(11) 12V:12V Source Red
(25) 12V brake switch. Yellowish
(9) Relay: Main contactor driver. Blue
(33)CAN-H:Green
(7) PWR: Controller power supply (input). Pink
