Wiring diagrams
Wiring diagrams for TEC, TECX, TECP

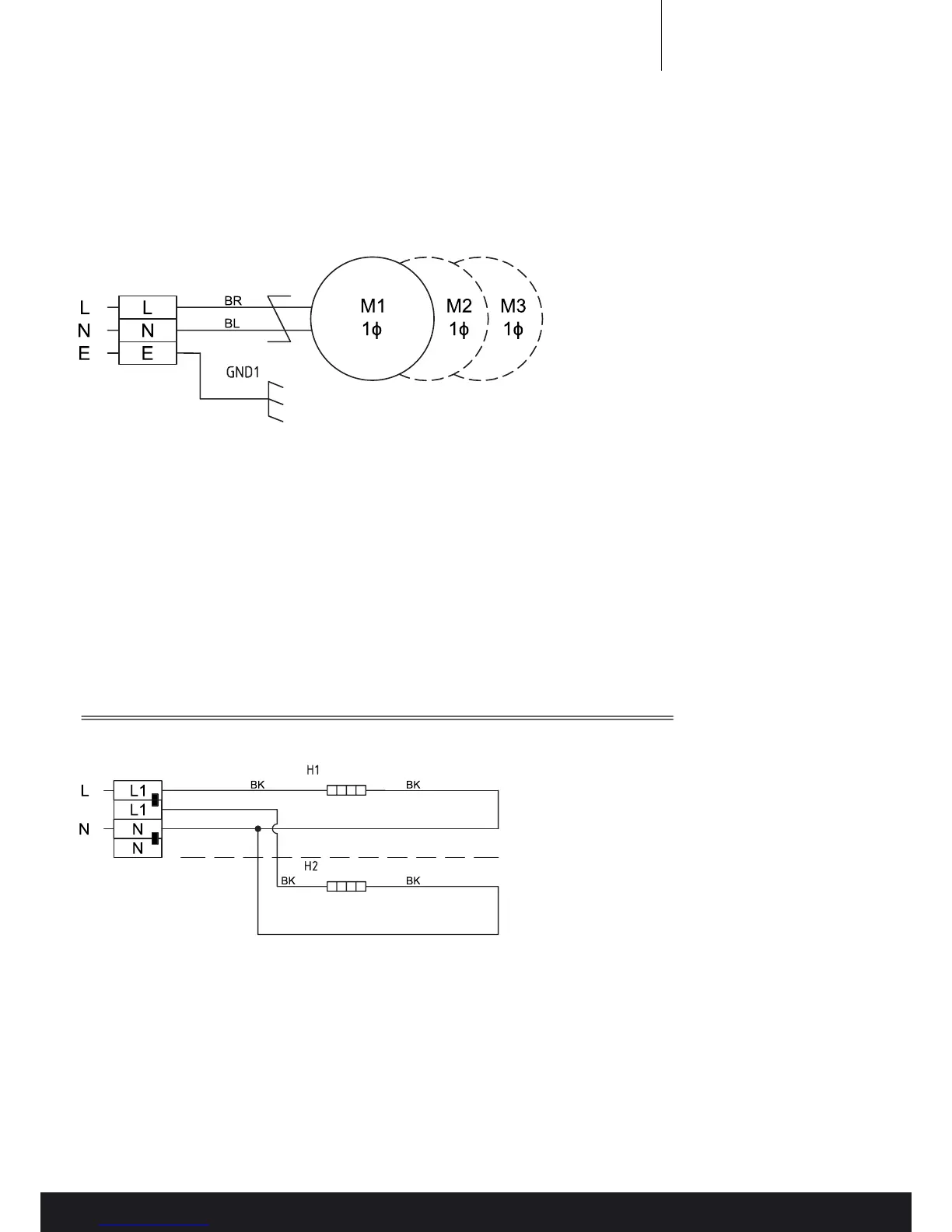

TEC (1 PHASE FAN SUPPLY)
Note:
1. Fan Supply 230V - 1Ph - 50Hz.
2. Applies To TEC Range Only.
• TEC 1-3.5 1 Fan.
• TEC 4-5 2 Fans
• TEC 7 & 8 3 Fans
3. For Heater Arrangement:
• Ref. Drg. 271-111-451
4. Terminal Box(S): 44-10-602-W; 110-621-W.
TEC DEFROST HEATERS
Note:
1. Supply 230V - 1Ph - 50Hz.
2. Applies To TEC Range Only.
3. For Fan Arrangement:
• Ref. Drg. 271-111-450.
4. Terminal Box(S): 218-143-110.
271-111-450
271-111-451
Tray Heaters ( +
Wall mount option)
