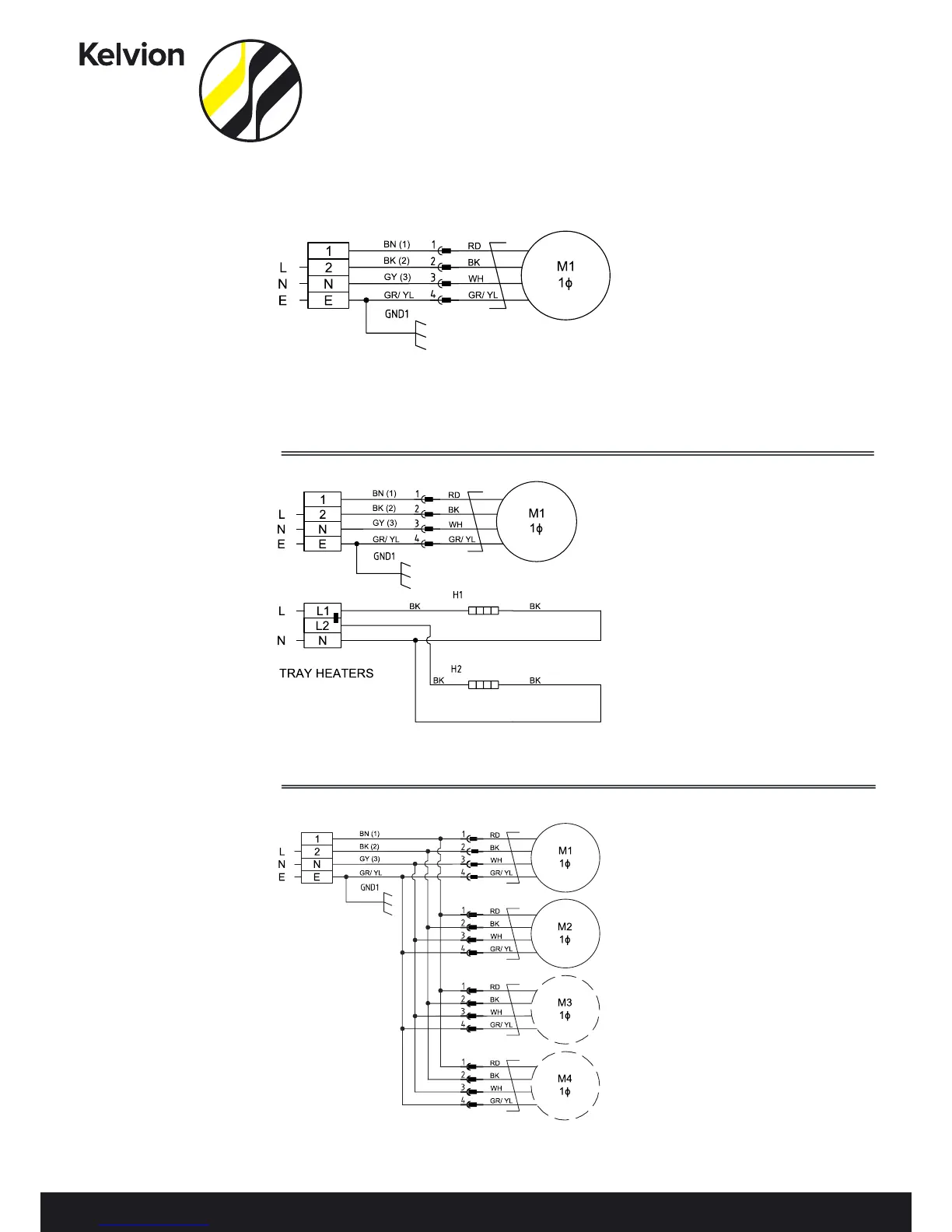

Kelvion TEC1 - Wiring for DSR; DSR 19-22 Wiring; DSR 36-83 Wiring

Searle Air Cooler
DSR 19 & 22 (FAN SUPPLY)
Note:
1. Supply 230V - 1Ph - 50Hz.
2. Applies To DSR Range Only:
• DSR 19, DSR 22
3. High Speed: Connect Supply To
Terminal Block Terminals 2 And N.
4. Low Speed: Link Terminal Block Terminals 1 & 2.
5. Terminal Box: 210-604-W
DSR 19 & 22 (FAN & DEFROST)
Note:
1. Supply 230V - 1Ph - 50Hz.
2. Applies To DSR Range Only:
• DSR 19, DSR 22
3. High Speed: Connect Supply To
Terminal Block Terminals 2 And N.
4. Low Speed: Link Terminal Block
Terminals 1 & 2.
5. Heater Option: Remove Link Before
Connecting 2nd Phase Supply.
6. Terminal Box: 210-608-W
DSR 36 to 83 (FAN SUPPLY)
Note:
1. Supply 230V - 1Ph - 50Hz.
2. Applies to DSR Range Only:
• DSR 36, 42 (2 fan)
• DSR 51, 62 (3 fan)
• DSR 68, 83 (4 fan) 62 (3 fan)
3. High speed: Connect supply to
terminal block terminals 2 and N
4. Low speed: Link terminal
block terminals 1 and 2
5. For heater arrangement,
ref. DRG 271-113-403
6. Terminal box(s): 210-604-W(36&42)
210-605-W(51&62); 210-606-W(68&83)
Wiring diagrams for DSR
271-113-405
271-113-400
271-113-401
