Searle Air Cooler

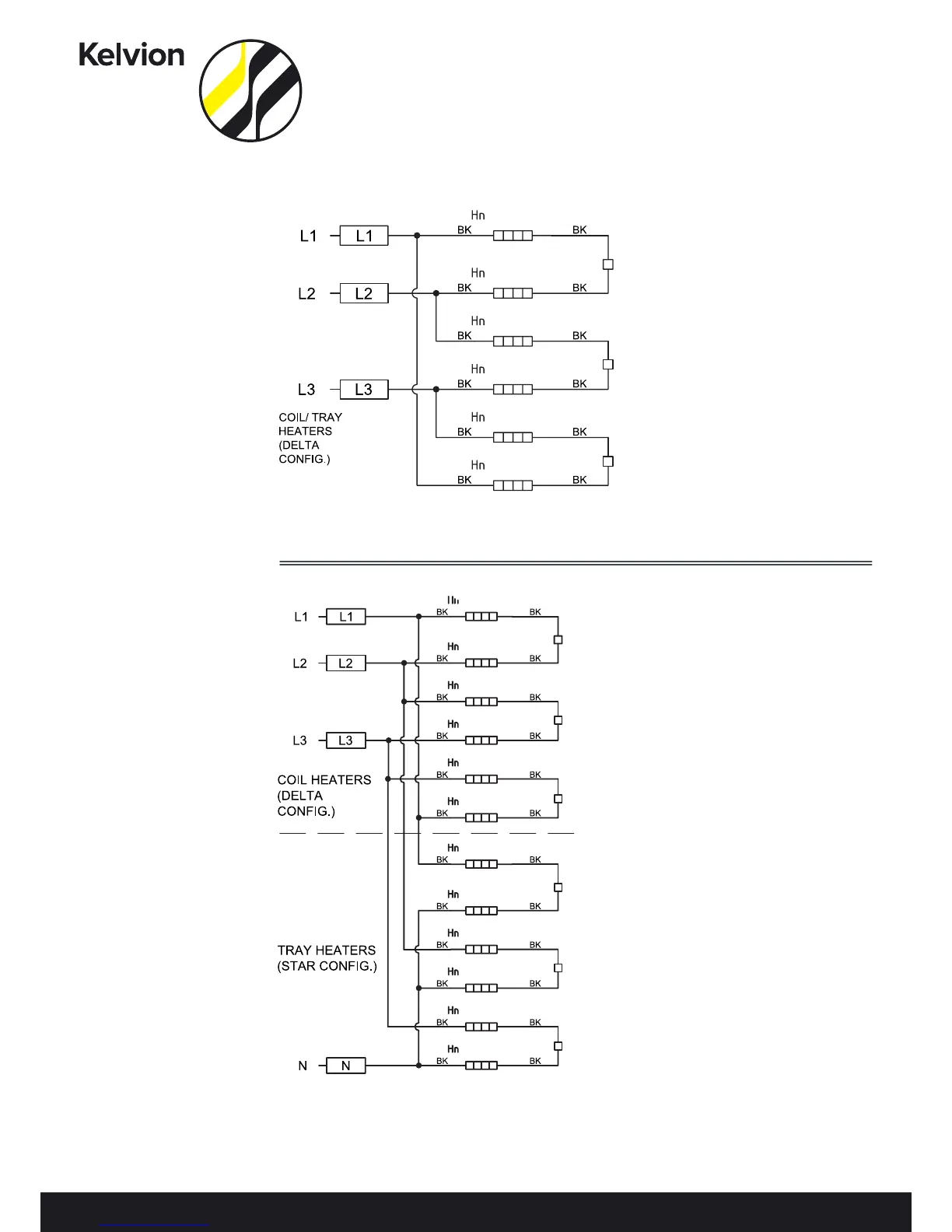

FM 20 to 36 (DEFROST DELTA/STAR)
Note:
1. Defrost heater supply 400v - 3ph -50Hz.
2. Applies to FM range only
3. For clarity multiple defrost
Heaters not shown.
4. For fan arrangement ref. Drg
271-112-210 And 271-112-211.
5. Terminal box(s): 21-000-623(L1&L2);
23-000-624(L3).
6. For peripheral heater Arrangement
ref. Drg. 271-112-214.
FM 20 to 36 (DEFROST DELTA)
1. Note:
2. Defrost heater supply 400v -
3ph-50Hz.
3. Applies to FM range only
4. For clarity multiple defrost heaters
not shown.
5. For fan arrangement ref. Drg
271-112-210 And 271-112-211.
6. Terminal box(s): 21-000-623(L1&L2);
23-000-624(L3).
7. For peripheral heater
Arrangement ref. Drg. 271-112-214.
271-112-212
271-112-213
