Kelvion TEC1 - Wiring for LSR; LSR 12 n Fan and Defrost Wiring

33
FM 20 to 36 (DEFROST DELTA)
1. Note:
2. Defrost heater supply 400v -
3ph-50Hz.
3. Applies to FM range only
4. For clarity multiple defrost heaters
not shown.
5. For fan arrangement ref. Drg
271-112-210 And 271-112-211.
6. Terminal box(s): 21-000-623(L1&L2);
23-000-624(L3).
7. For peripheral heater
Arrangement ref. Drg. 271-112-214.
Wiring diagrams
Wiring diagrams for LSR

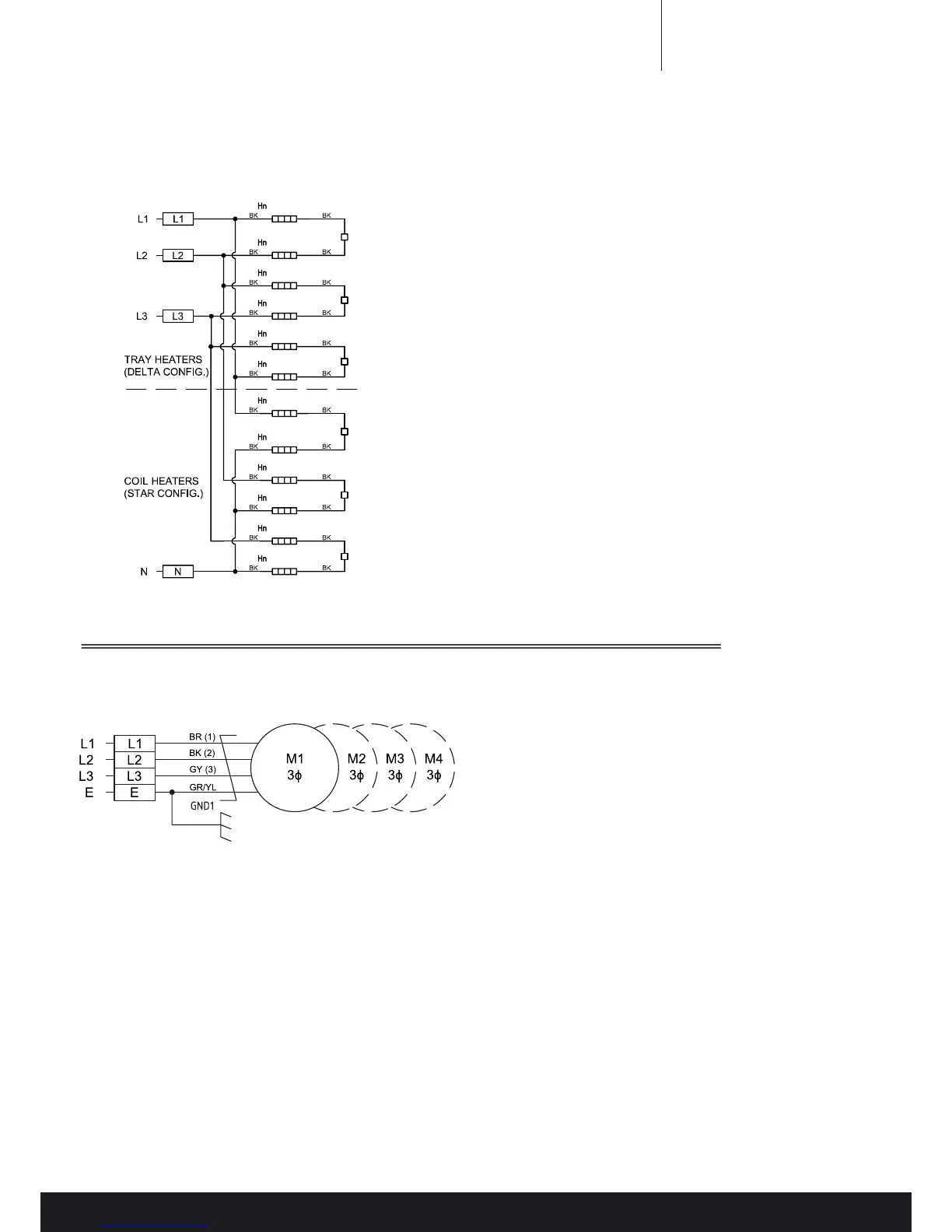

LSR 12n (DEFROST WIRING)
Note:
1. Defrost heater supply 400v - 3ph -50Hz.
2. Applies to LSR range only
3. For clarity multiple defrost Heaters not shown.
4. For fan arrangement ref. Drg 271-115-173-F.
5. Terminal box: 290-668-w or 431-010-124
LSR 12n (FAN SUPPLY)
Note:
1. Fan supply 400v - 3ph - 50hz.
2. Applies to LSR range only.
3. Common fan junction box.
4. For heater arrangement:
• Ref. Drg. 271-115-173-E
5. Terminal box: 290-636-w.
271-115-173-E
271-115-173-F
