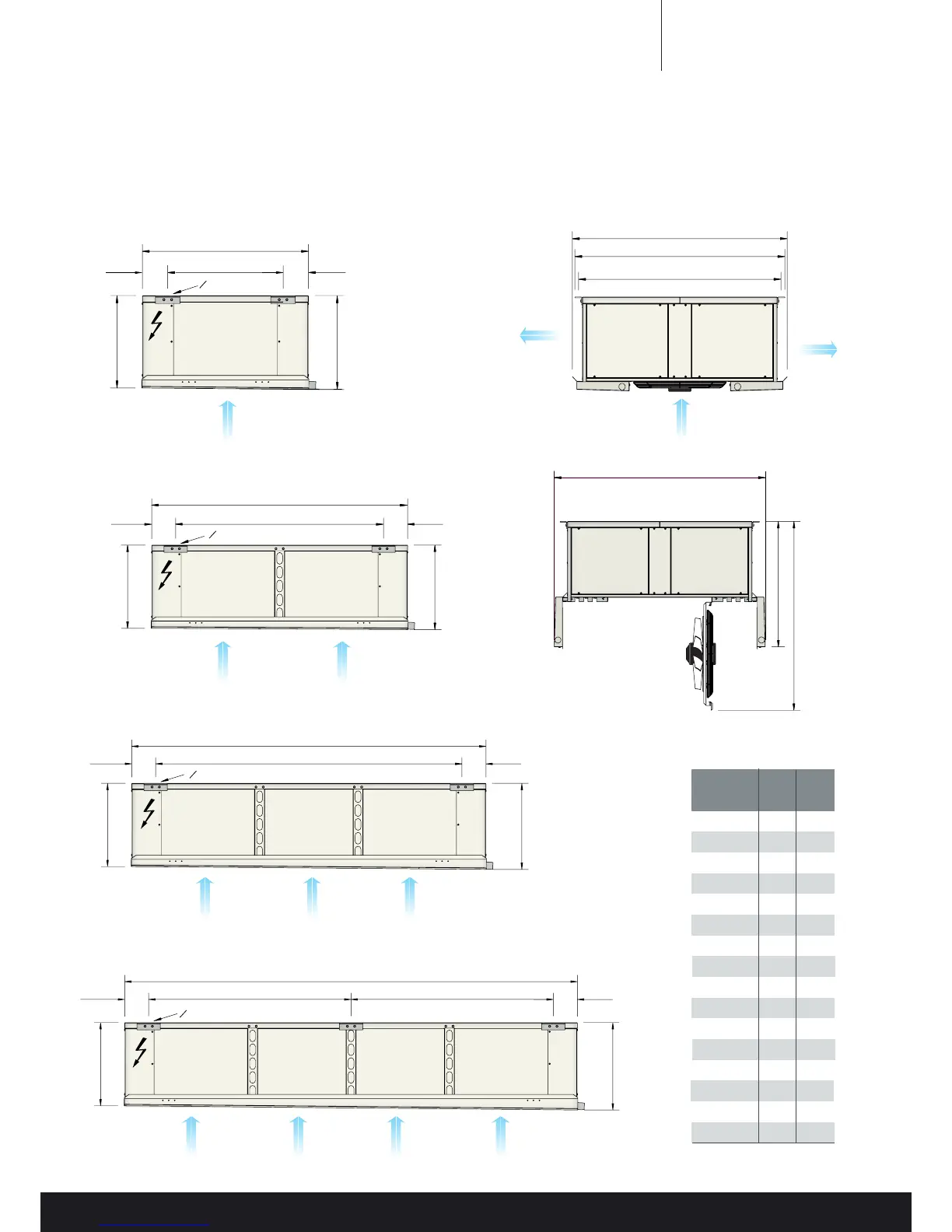

Product dimensions
LSR 121
1080 Overall length
750 Fixing centres
O21.0 4 holes
165165
570 580
1.1/2“ drain connection
1396 Over splash guard
1369 Over hangers
1319 Fixing centres
LSR 122
1755 Overall length
1425 Fixing centres
O21.0 4holes
165
165
570
580
1.1/2“ drain connection
Coil conns end
Coil conns end
1469 Over open drain pans
Removable
access
panels
both ends
Removable
access
panels
both ends
860.5
Required space
1295.5
Required space
LSR121-44
LSR121-64
LSR122-44
LSR122-64
LSR123-44
LSR123-64
LSR124-44
LSR124-64
LSR121-46
LSR121-66
LSR122-46
LSR122-66
LSR123-46
LSR123-66
LSR124-46
LSR124-66
117
130
180
200
237
266
301
341
114
125
175
192
230
256
292
326
151
180
232
277
314
382
405
496
141
165
216
254
291
348
374
446
Model
Cu/Al
weight
(kg)
Cu/Cu
weight
(kg)
LSR drawings and dimensions
LSR 123
Coil conns end
2430 Overall length
2100 Fixing centres
O21.0 4holes
165165
570
590
1.1/2“ drain connection
LSR 124
Coil conns end
3105 Overall length
1387.5 Fixing centres
O21.0 6 holes
165
165
570
600
1.1/2“ drain connection
1387.5 Fixing centres
