• Now lift the SmartMaster carefully backwards down off the pallet.
• Loosen the clamp fasteners on the top panel, open the maintenance door and
check that the filter cartridges are undamaged and fitted properly. Please refer
to the notes under Section 7.3 Changing Filters.
KEMPER SmartMaster Operating Instructions - EN
• Now lift the SmartMaster carefully backwards down off the pallet.
• Loosen the clamp fasteners on the top panel, open the maintenance door and
check that the filter cartridges are undamaged and fitted properly. Please refer
to the notes under Section 7.3 Changing Filters.

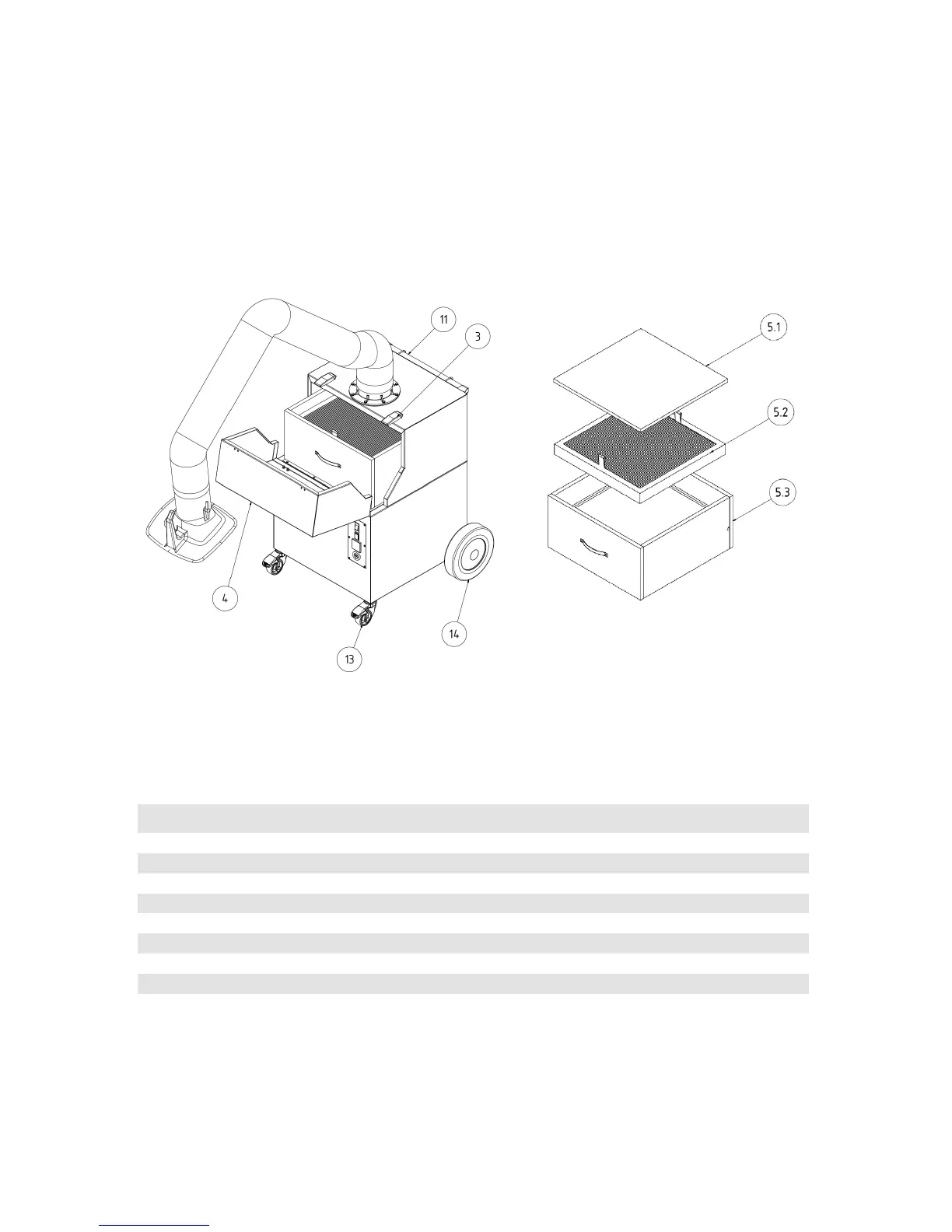

Figure 3, Unpacking and Assembly
Item
Designation
Quantity
3
Clamp fastener
2
4
Maintenance door
1
5
Filter set
1
5.1
Prefilter
1
5.2
Prefilter cassette
1
5.3
Main filter
1
11
Handle bar
1
13
Swivel castor with brake (front wheel)
2
14
Rear wheel
2
