8.3.2. IGBT module, V1
• IGBT module can be tested by multimeter if using the diode tester function. Module holds six diodes and in many
cases they may be defective if IGBT is damaged
• When measuring IGBT unit diodes you must disconnect other end of main transformer (X7)
o After measuring connect other end (X7) back
Measurings:

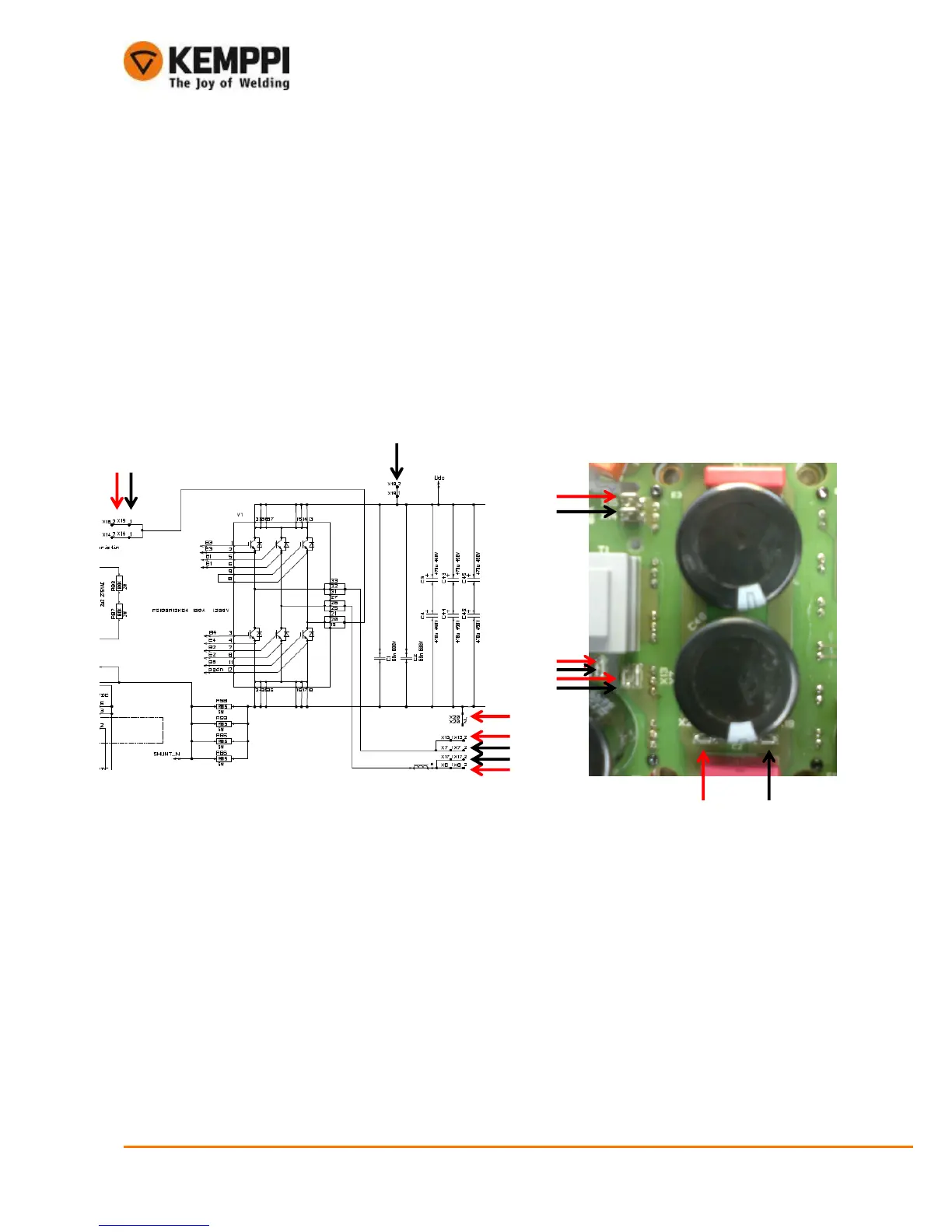

1) Negative test pole (1, black) to connector X19, positive test pole (1, red) to connectors X13, X14 and X17 one at time
Result: 0,3…0,6diodes Ok
2) Positive test pole (2, red) to connector X20, negative test pole (2, black) to connectors and X13, X14 and X17 one at time
Result: 0,3…0,6diodes Ok
