Kemppi MasterTig 3500 Service Manual

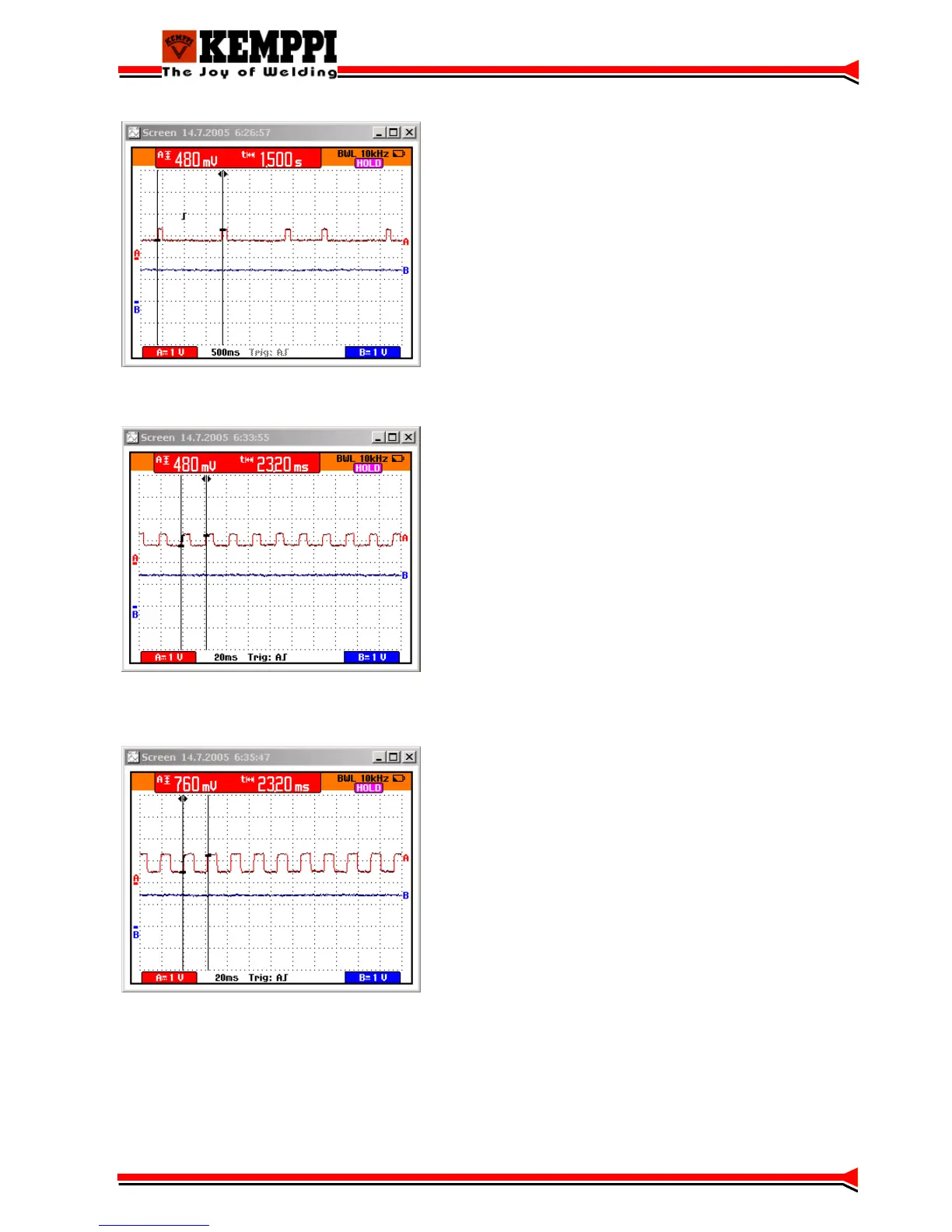

A=Pin 2 voltage
Pulse ratio approx. 10 %, pause current 40 % and cycle time 1,5
s (0,7 Hz)
B= Pin 1 voltage
Set value information from control card A001´s set value circuit
A= Pin 2 voltage
Pulse ratio approx. 50 %, pause current 40 % and cycle time
approx. 0,2 s (50Hz)
B= Pin 1 voltage
Set value information from control card A001´s set value circuit
A= Pin 2 voltage
Pulse ratio approx. 50 %, pause current min. and cycle time
approx. 0,2 s (50Hz)
B= Pin 1 voltage
Set value information from control card A001´s set value
circuit
