Kemppi MasterTig 3500 - Secondary Diode Voltage Analysis; Waveforms for Master;Mastertig 2800;3500

Kemppi MasterTig 3500
31 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
C

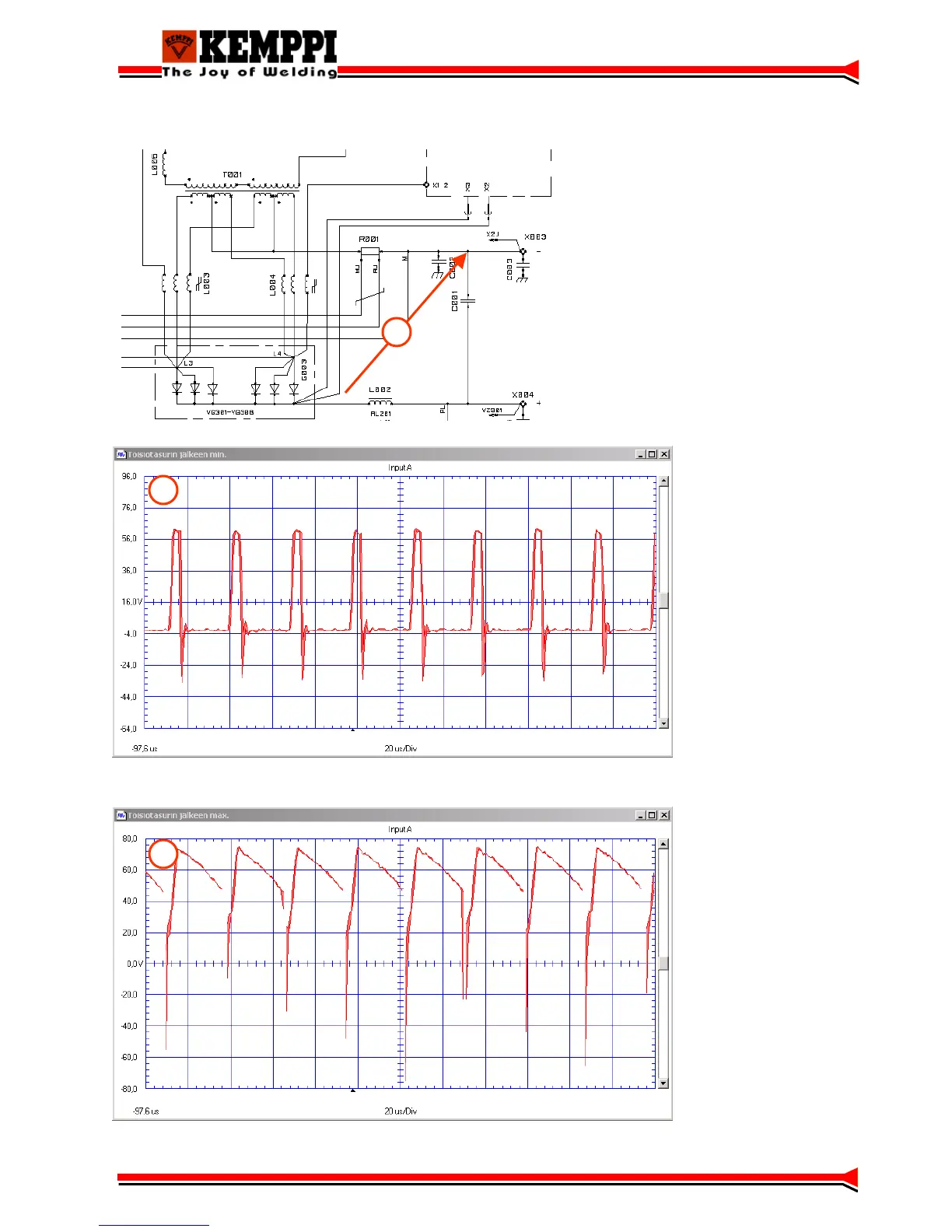

Voltage over the secondary diodes with minimum power(2800/3500). Frequency is approx. 38 kHz (measuring point C).
Voltage over the secondary diodes with maximum power (2800/3500). Frequency approx. 38 kHz (measuring point C).
Voltage after the secondary diodes (Master / Mastertig 2800/3500)
