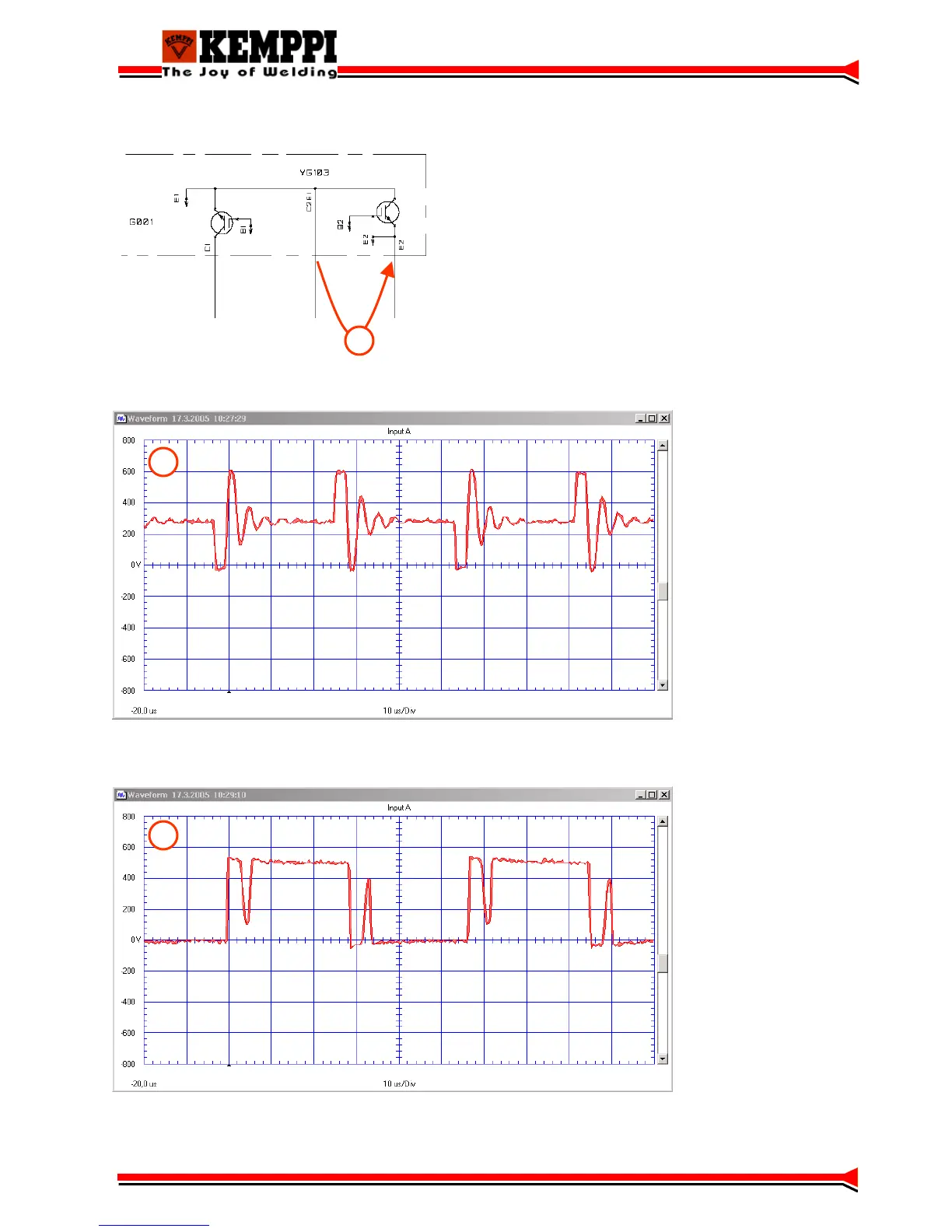

Voltage over the lower IGBT with minimum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point B).
Voltage over the lower IGBT with maximum power (2800/3500). Inverter operating frequency approx. 19 kHz (measuring point B).
Voltage over the lower IGBT (Master / Mastertig 2800/3500)
