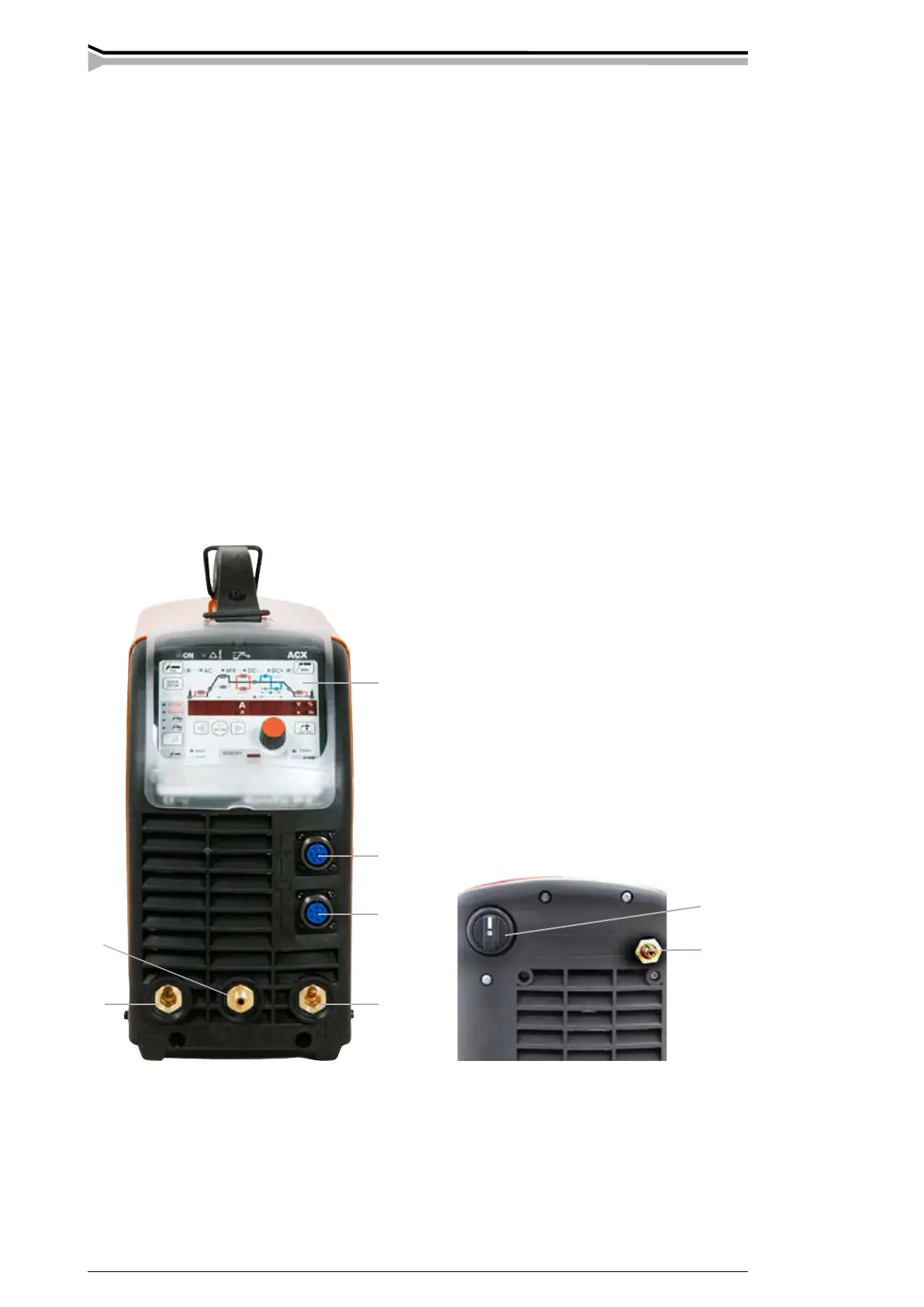

Front of machine
1. Function panel
2. Remote control connector
3. TIG torch control connector
4. Shield gas and current connector for TIG torch
5. (+) connector for electrode holder
6. (–) connector for earth cable
Markings for (+/–) poles on the machine front are
embossed.
Rear of machine
1. Mains switch
2. Snap connector for gas
2. INSTALLATION
2.1. REMOVAL FROM PACKAGING
The equipment is packed in durable packages designed especially for it. However, it is necessary
to check the equipment before using it to make sure that the equipment or any part of it has not
got damaged during transportation. Also check that the delivery corresponds to your order and
that you have received all necessary instructions for installing and operating the equipment. The
packaging material is recyclable.
2.2. LOCATING THE MACHINE
Place the machine on a horizontal, stable and clean ground. Protect the machine from rain and
direct sunshine. Check that there is enough space for cooling air circulation in front of and behind
the machine.
2.3. SERIAL NUMBER
Serial number of the machine is marked on the rating plate. The serial number is the only proper
means of identifying parts for a specic product. It is important to make correct reference to the
serial number of the product when making repairs or ordering spare parts.
