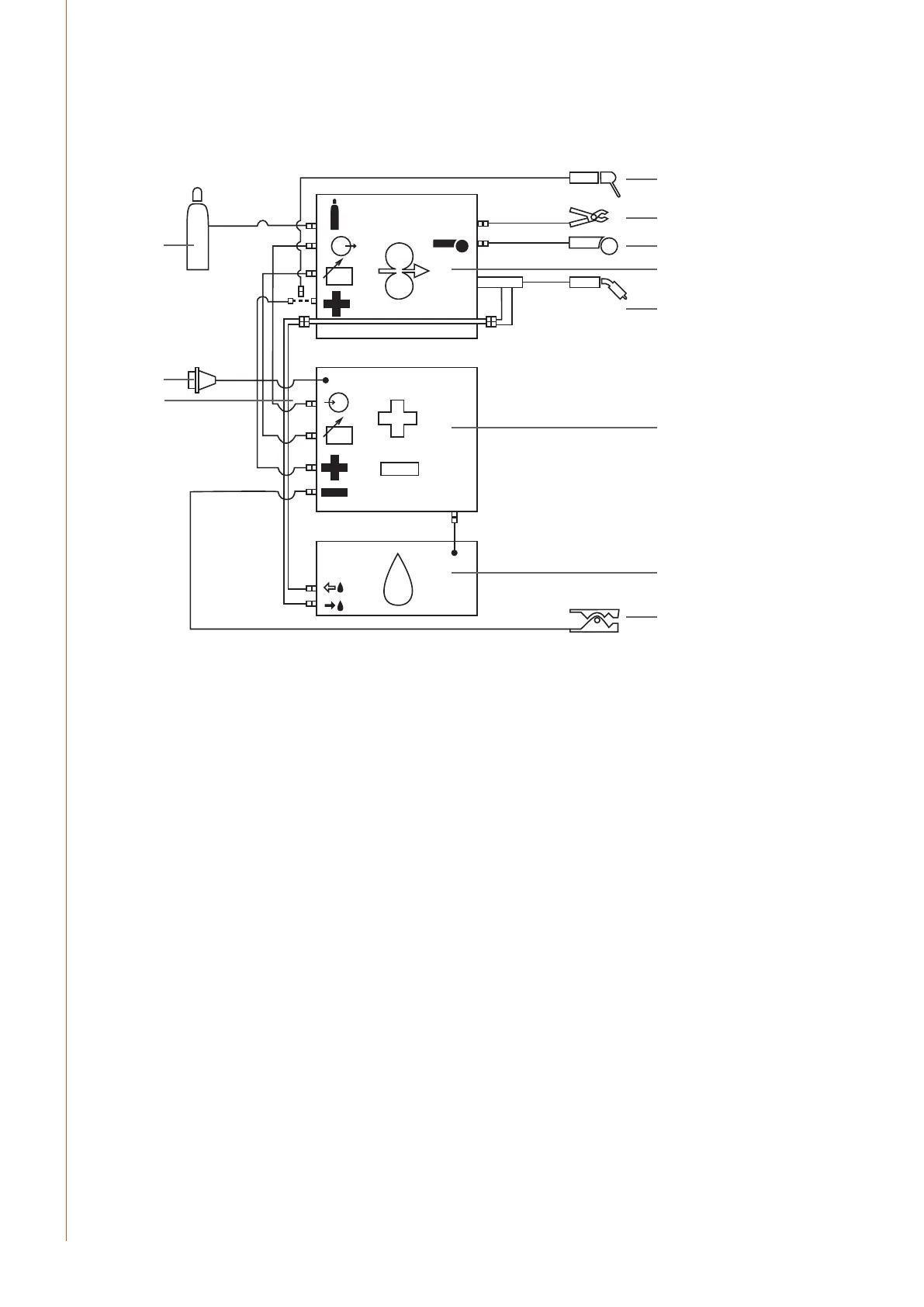

2.2 Connecting cables
2.2.1 Liquid-cooled system: FastMig X + WFX + Cool X
1.
4.
8.
10.
2.
3.
9.
5.
6.
11.
7.
V
V
1. WFX wire feed unit
2. FastMig X power source
3. Cool X cooling unit and power connection
4. Gas supply
5. MMA electrode holder
6. Remote control device
7. Liquid-cooled welding gun
8. Power cable
9. Earth return cable and clamp
10. Measurement cable (from power source to wire feeder)
11. Voltage sensing cable (from wire feeder to work piece)
NOTE! WFX wire feeders can also be used with FastMig Pulse power source, but in that case
measurement cable and voltage sensing cable will not be used.
