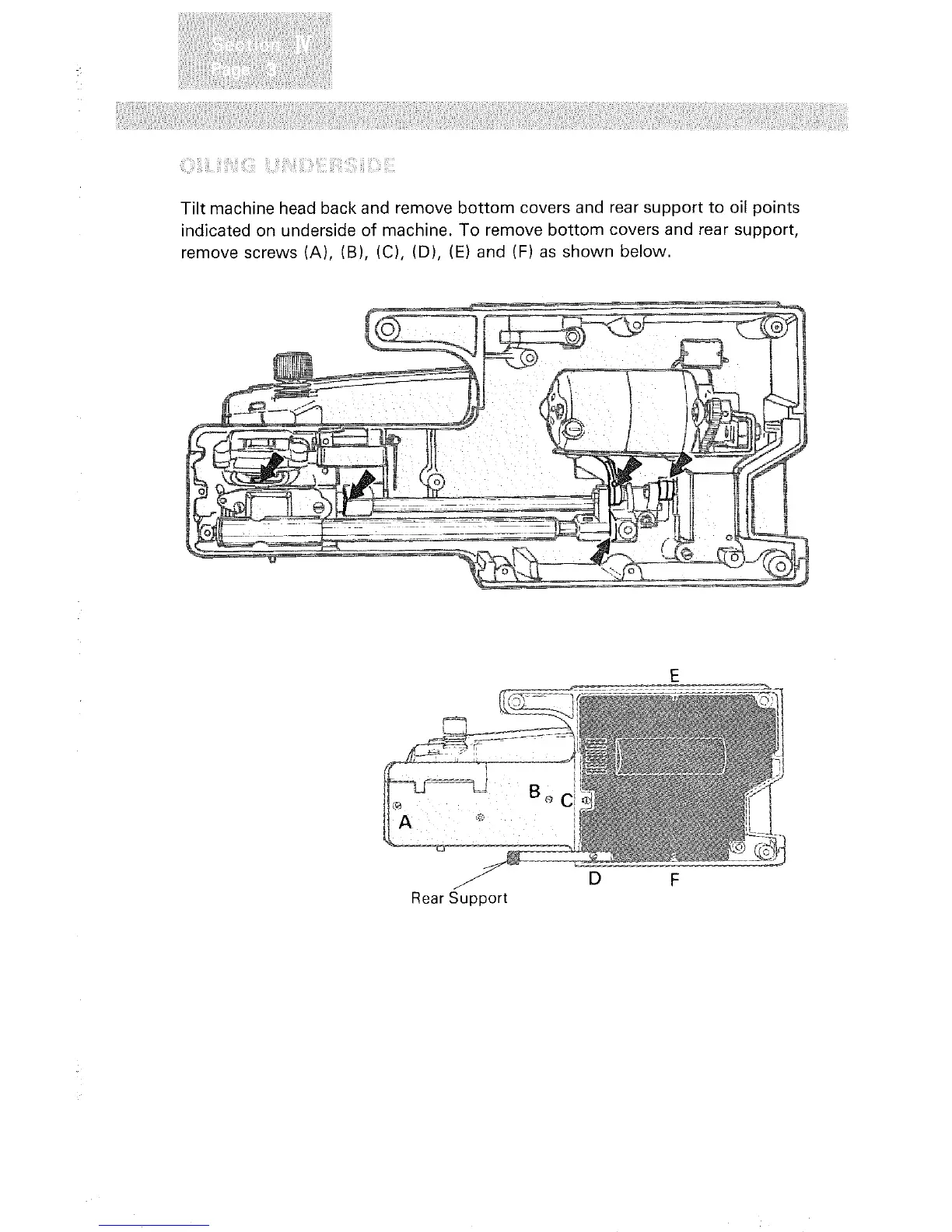

Tiltmachineheadbackandremovebottomcoversandrearsupporttooilpoints
indicatedonundersideofmachine.Toremovebottomcoversandrearsupport,
removescrews(A),(B),(C),(D),(E)and(F)asshownbelow.
Rear Support
D
