1,
2.
3.
4.

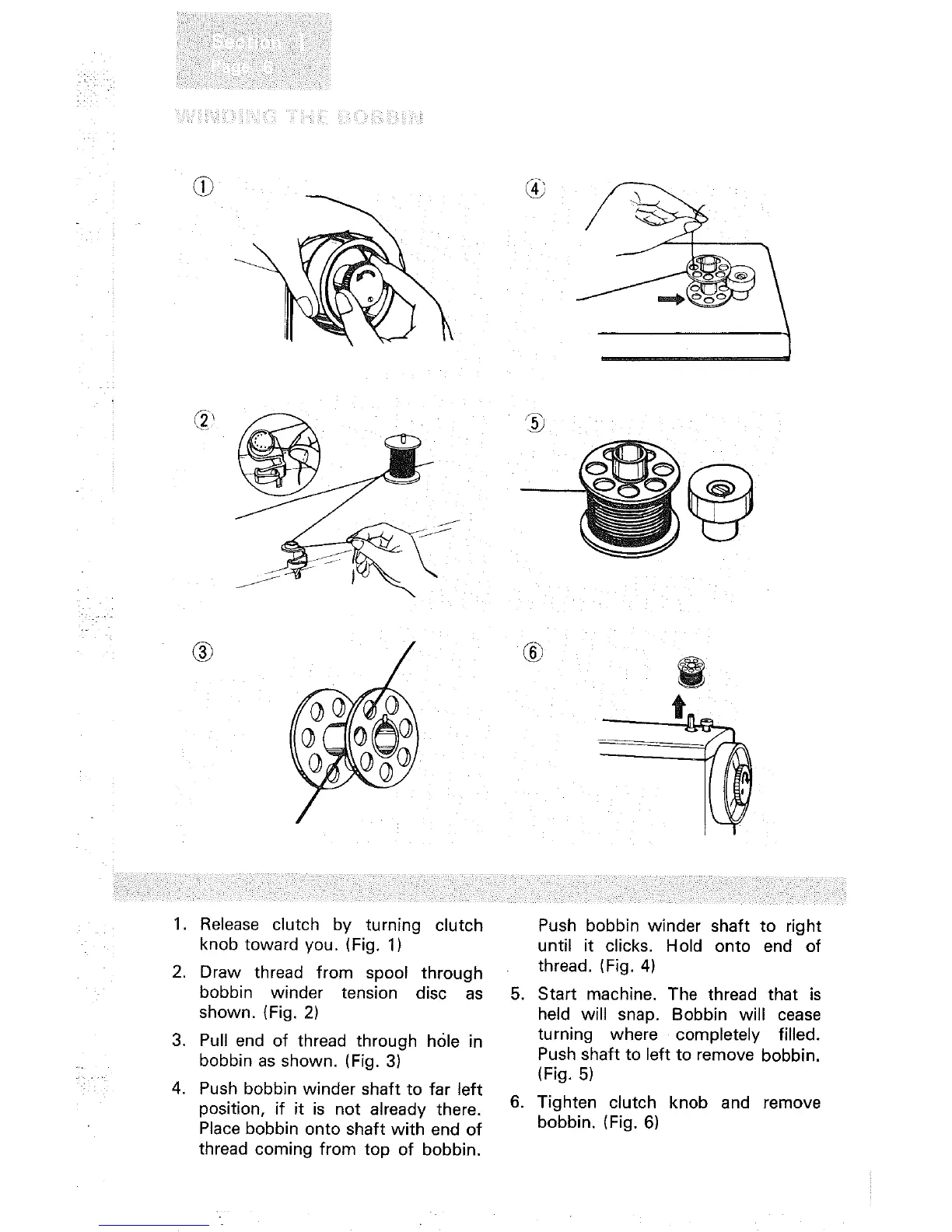

Release clutch by turning clutch
knob toward you. (Fig. 1)
Draw thread from spool through
bobbin winder tension disc as
shown. (Fig. 2)
Pull end of thread through hole in
bobbin as shown. (Fig. 3)
Push bobbin winder shaft to far left
position, if it is not already there.
Place bobbin onto shaft with end of
thread coming from top of bobbin.
Push bobbin winder shaft to right
until it clicks. Hold onto end of
thread. (Fig. 4)
5. Start machine. The thread that is
held will snap. Bobbin will cease
turning where completely filled.
Push shaft to left to remove bobbin.
(Fig. 5)
6. Tighten clutch knob and remove
bobbin. (Fig. 6)
