Kenmore 1252 - Threading the Bobbin Case

i_i__i_il_
• i/
® (# ®
®
\
f \
® ®

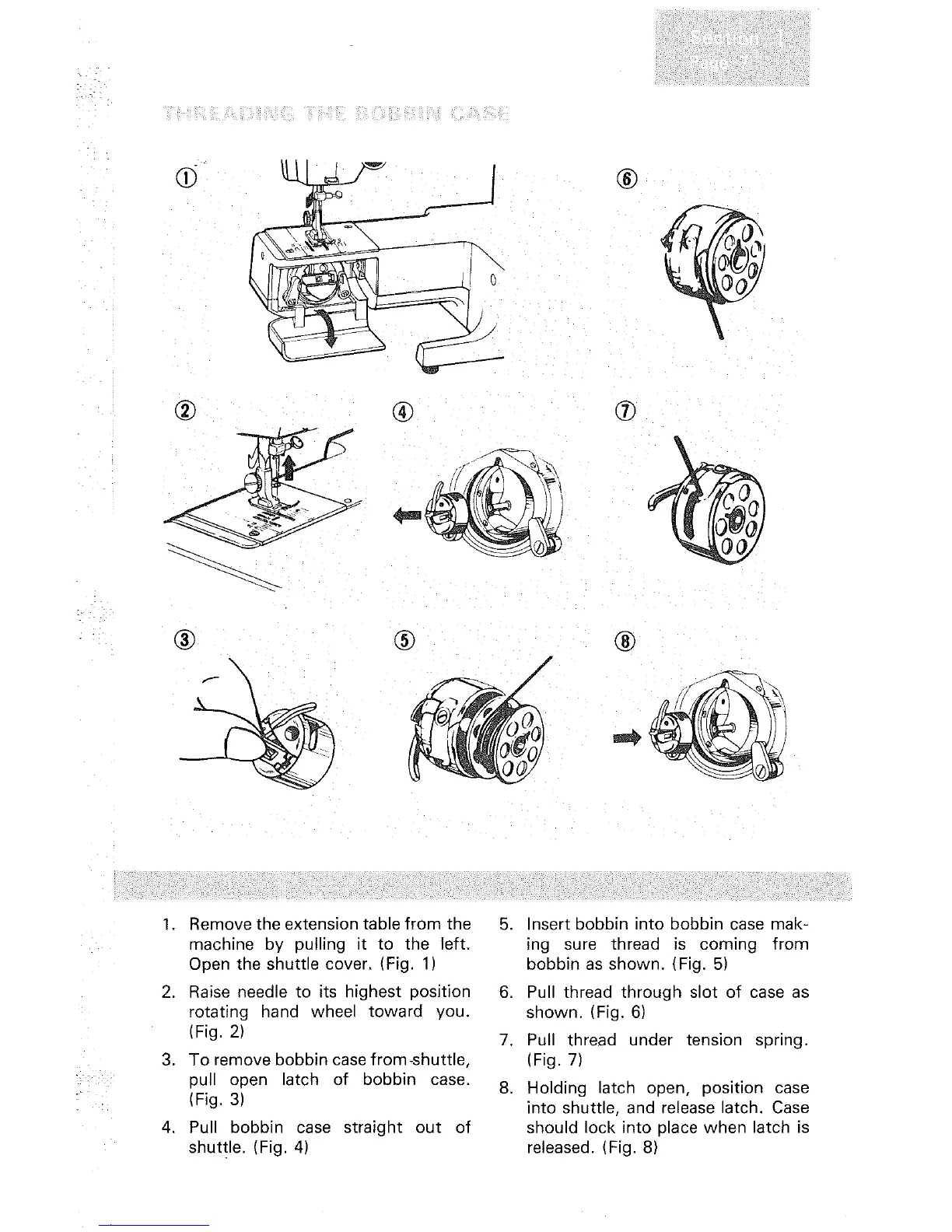

1. Remove the extension table from the
machine by pulling it to the left.
Open the shuttle cover. (Fig. 1)
2. Raise needle to its highest position
rotating hand wheel toward you.
(Fig. 2)
3. To remove bobbin case from-shuttle,
pull open latch of bobbin case.
(Fig. 3)
4. Pull bobbin case straight out of
shuttle. (Fig. 4)
5, Insert bobbin into bobbin case mak-
ing sure thread is coming from
bobbin as shown. (Fig. 5)
6. Pull thread through slot of case as
shown (Fig. 6)
7. Pull thread under tension spring.
(Fig, 7)
8, Holding latch open, position case
into shuttle, and release latch. Case
should lock into place when latch is
released. (Fig. 8)
