Fig2
Fig.4
Fig.5

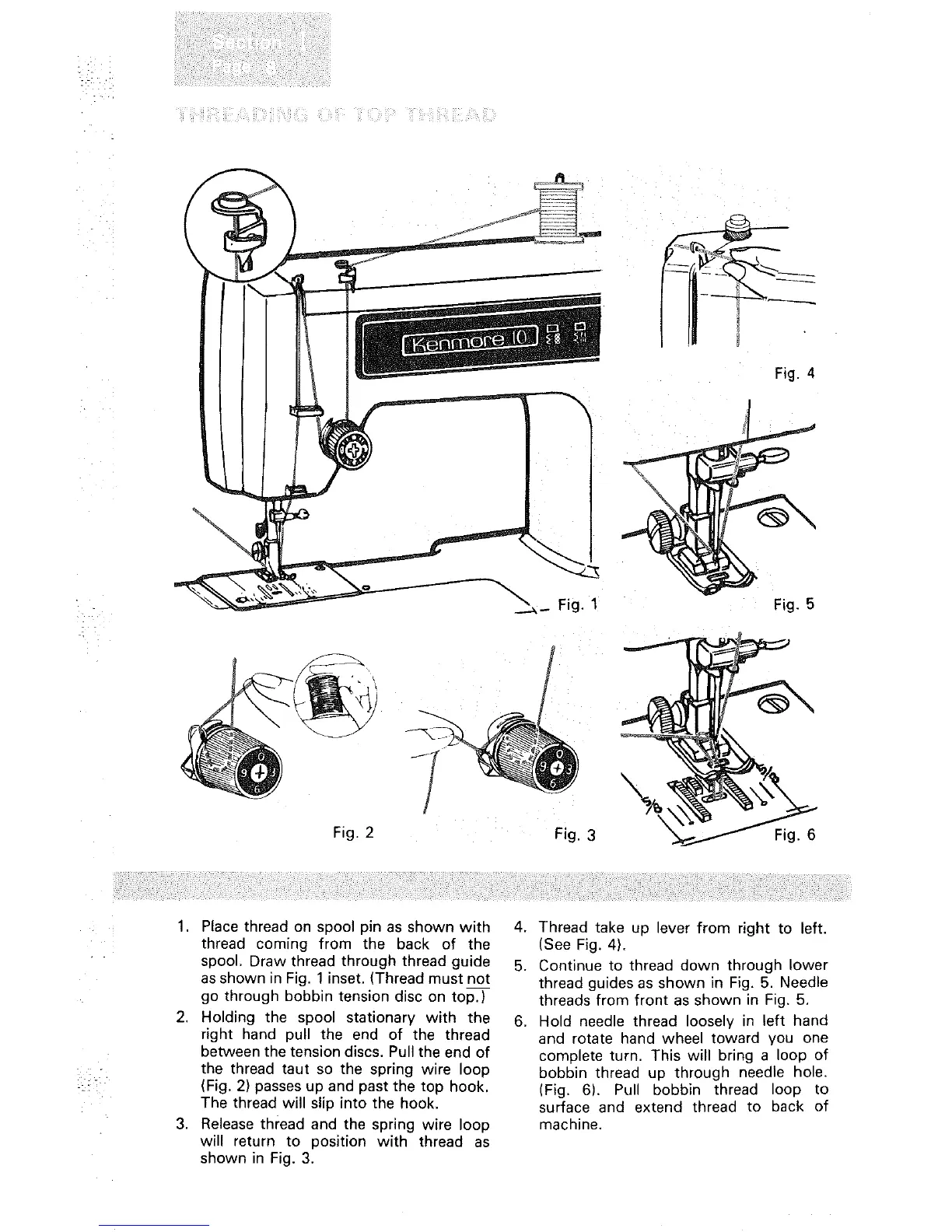

1. Place thread on spool pin as shown with
thread corn ng from the back of the
spool. Draw thread through thread guide
as shown in Fig. 1 inset. (Thread must not
go through bobbin tension disc on top.)
2. Holding the spool stationary with the
right hand pull the end of the thread
between the tension discs. Pull the end of
the thread taut so the spring wire loop
(Fig. 2) passes up and past the top hook.
The thread will slip into the hook.
3. Release thread and the spring wire loop
will return to position with thread as
shown in Fig. 3.
4. Thread take up lever from right to left.
(See Fig. 4).
5. Continue to thread down through lower
thread guides as shown in Fig. 5. Needle
threads from front as shown in Fig. 5,
6. Hold needle thread loosely in left hand
and rotate hand wheel toward you one
complete turn. This will bring a loop of
bobbin thread up through needle hole.
(Fig. 6). Pull bobbin thread loop to
surface and extend thread to back of
machine.
