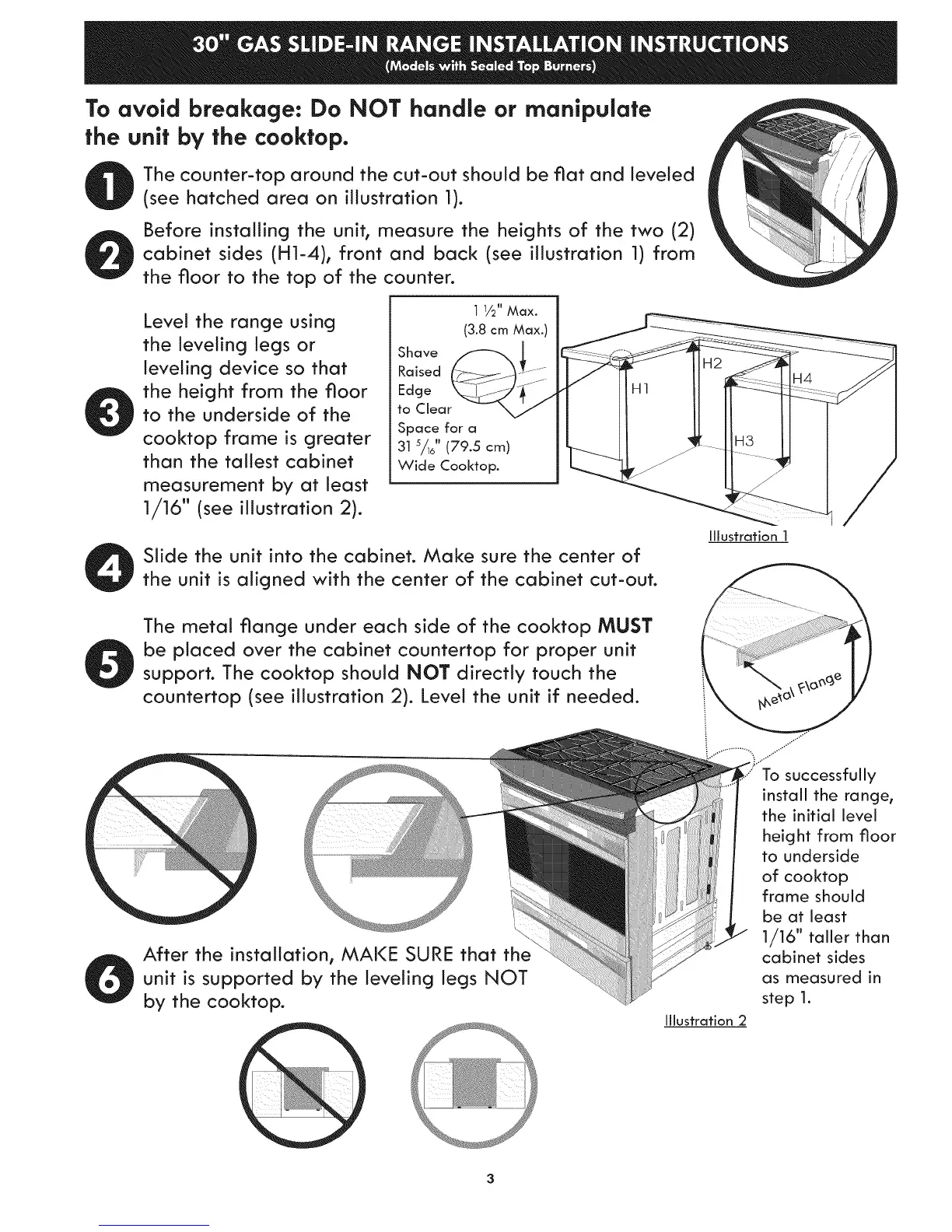

To avoid breakage: Do NOT handle or manipulate
the unit by the cooktop.
The counter-top around the cut-out should be fiat and leveled
(see hatched area on illustration 1).
Before installing the unit, measure the heights of the two (2)
cabinet sides (H1-4), front and back (see illustration 1) from
the floor to the top of the counter.
Level the range using
the leveling legs or
leveling device so that
the height from the floor
to the underside of the
cooktop frame is greater
than the tallest cabinet
measurement by at least
1/16" (see illustration 2).
Shave _
Raised
Edge
to Clear
Space for a
31 s/1J' (79.5 cm) I__
Wide Cooktop.
H1
Slide the unit into the cabinet. Make sure the center of
the unit is aligned with the center of the cabinet cut-out.
/
Illustration 1
The metal flange under each side of the cooktop MUST
be placed over the cabinet countertop for proper unit
support. The cooktop should NOT directly touch the
countertop (see illustration 2). Level the unit if needed.
After the installation, MAKE SURE that the
unit is supported by the leveling legs NOT
by the cooktop.
Illustration 2
j..."
To successfully
install the range,
the initial level
height from floor
to underside
of cooktop
frame should
be at least
1/16" taller than
cabinet sides
as measured in
step 1.
3
