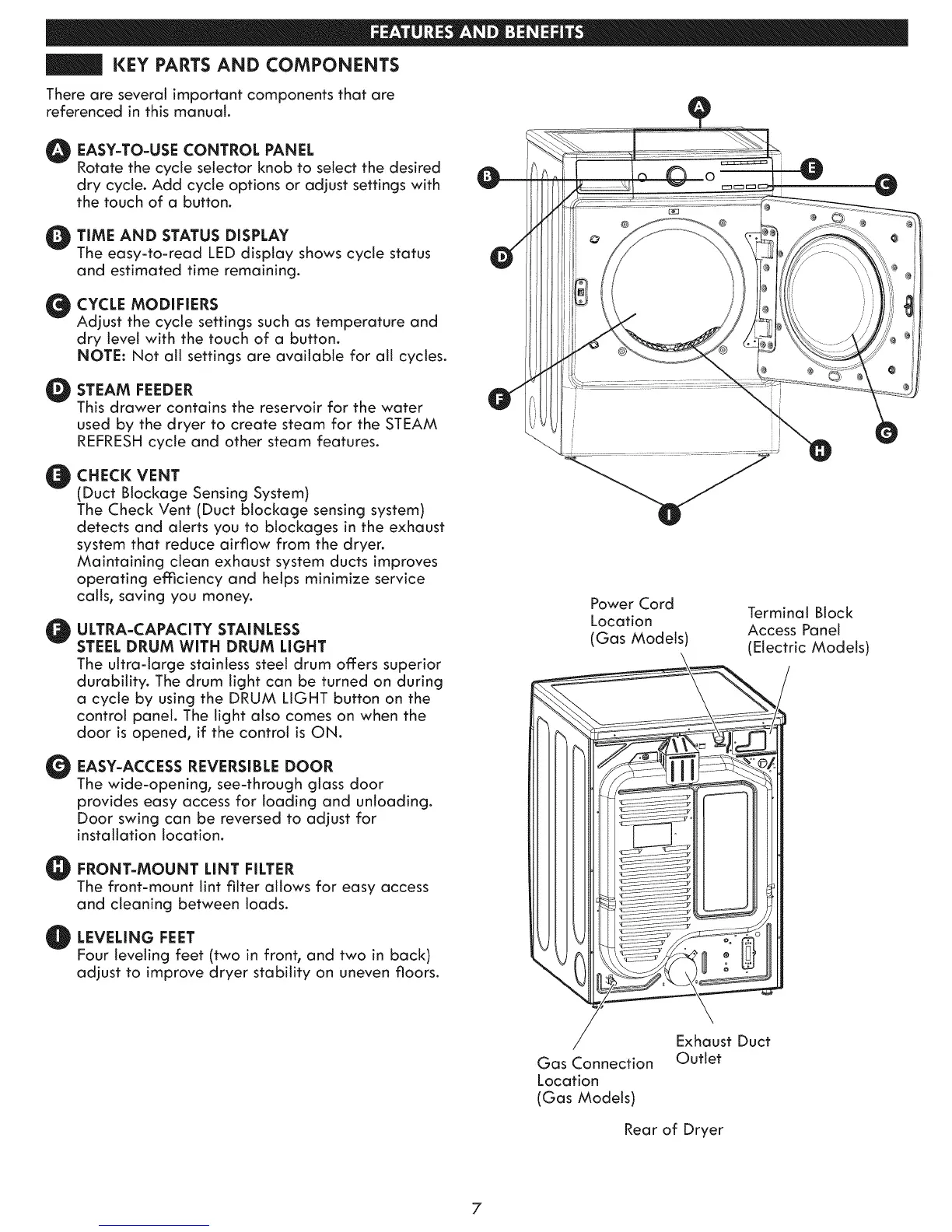

KEY PARTS AND COMPONENTS
There are several important components that are
referenced in this manual.
O ASY-TO-USE CONTROL PANEL
Rotate the cycle selector knob to select the desired
dry cycle. Add cycle options or adjust settings with
the touch of a button.
O IME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status
and estimated time remaining.
_ YCLE MODIFIERS
Adjust the cycle settings such as temperature and
dry level with the touch of a button.
NOTE: Not all settings are available for all cycles.
O TEAM FEEDER
This drawer contains the reservoir for the water
used by the dryer to create steam for the STEAM
REFRESH cycle and other steam features.
O HECI< VENT
(Duct Blockage Sensing System)
The Check Vent (Duct blockage sensing system)
detects and alerts you to blockages in the exhaust
system that reduce airflow from the dryer.
Maintaining clean exhaust system ducts improves
operating emciency and helps minimize service
calls, saving you money.
O LTRA-CAPACITY STAINLESS
STEEL DRUM WiTH DRUM LIGHT
The ultra-large stainless steel drum offers superior
durability. The drum light can be turned on during
a cycle by using the DRUM LIGHT button on the
control panel. The light also comes on when the
door is opened, if the control is ON.
O ASY-ACCESS REVERSIBLE DOOR
The wide-opening,see-throughglassdoor
provideseasy access forloadingand unloading.
Door swing can be reversedto adjustfor
installation location.
FRONT-MOUNT LINT FILTER
The front-mount lint filter allows for easy access
and cleaning between loads.
LEVELING FEET
Four leveling feet (two in front, and two in back)
adjust to improve dryer stability on uneven floors.
Power Cord
Location
(Gas Models)
Terminal Block
Access Panel
(Electric Models)
Gas Connection
Location
(Gas Models)
Exhaust Duct
Outlet
Rear of Dryer
