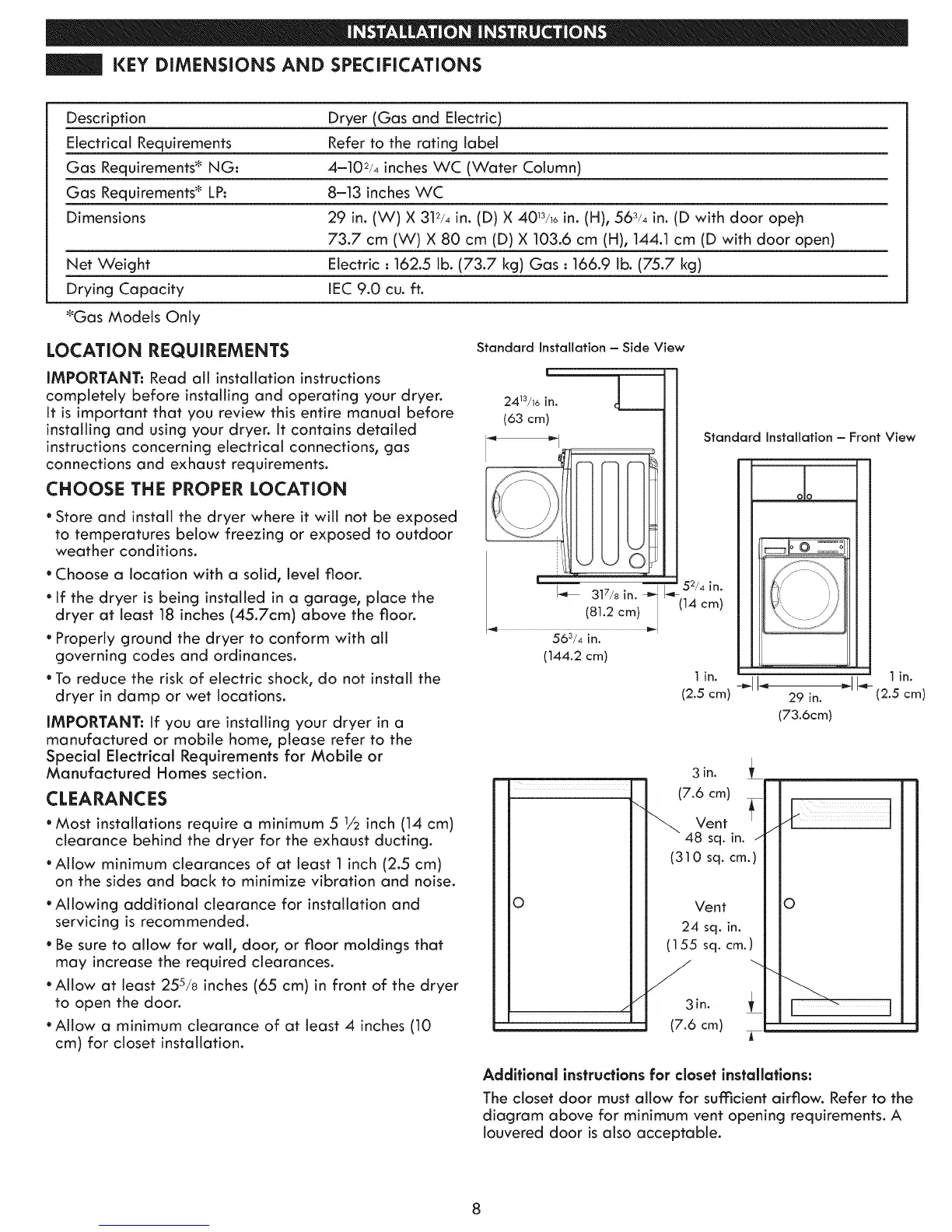

KEY DiMENSiONS AND SPECiFiCATiONS
Description Dryer (Gas and Electric)
Electrical Requirements Refer to the rating label
Gas Requirements _ NG: 4-102/4 inches WC (Water Column)
Gas Requirements _ LP: 8-13 inches WC
Dimensions 29 in. (W) X 3t2/4 in. (D) X 40_3/_6in. (H), 563/4 in. (D with door opeh
73.7 cm (W) X 80 cm (D) X 103.6 cm (H), 144.1 cm (D with door open)
Net Weight Electric : 162.5 lb. (73.7 kg) Gas : 166.9 lb. (75.7 kg)
Drying Capacity IEC 9.0 cu. ft.
_Gas Models Only
LOCATION REQUIREMENTS
Standard Installation - Side View
iMPORTANT: Read att installation instructions
completely before installing and operating your dryer. 24_3/16in.
It is important that you review this entire manual before (63 cm)
installing and using your dryer, it contains detailed
instructions concerning electrical connections, gas
connections and exhaust requirements.
CHOOSE THE PROPER LOCATION
*Store and install the dryer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions.
*Choose a location with a solid, level floor.
*If the dryer is being installed in a garage, place the
dryer at least 18 inches (45.7cm) above the floor.
* Properly ground the dryer to conform with all
governing codes and ordinances.
*To reduce the risk of electric shock, do not install the
dryer in damp or wet locations.
iMPORTANT: If you are installing your dryer in a
manufactured or mobile home, please refer to the
Special Electrical Requirements for Mobile or
Manufactured Homes section.
CLEARANCES
*Most installations require a minimum 5 1/2 inch (14 cm)
clearance behind the dryer for the exhaust ducting.
"Allow minimum clearances of at least 1 inch (2.5 cm)
on the sides and back to minimize vibration and noise.
Allowing additional clearance for installation and
servicing is recommended.
Be sure to allow for wall, door, or floor moldings that
may increase the required clearances.
Allow at least 25s/8 inches (65 cm) in front of the dryer
to open the door.
Allow a minimum clearance of at least 4 inches (10
cm) for closet installation.
Standard Installation - Front View
1!
J_ 317/8 in. _ J_52/4 in.
cm)/ (14 cm)
(81.2
_ J
563/4 in.
(144.2 cm)
1 in.
(2.5 cm)
oL
l in.
29 in. (2.5 cm)
(73.6cm)
7¸¸¸¸¸¸¸¸
O
J
3 in.
(7.6 cm)
_ Vent
48 sq. in. -"
(310 sq. cm.)
Vent
24 sq. in.
(155 sq. cm.)
J -
3in. _
(7.6 cm)
0
Additional instructions for closet installations:
The closet door must allow for sufficient airflow. Refer to the
diagram above for minimum vent opening requirements. A
louvered door is also acceptable.
