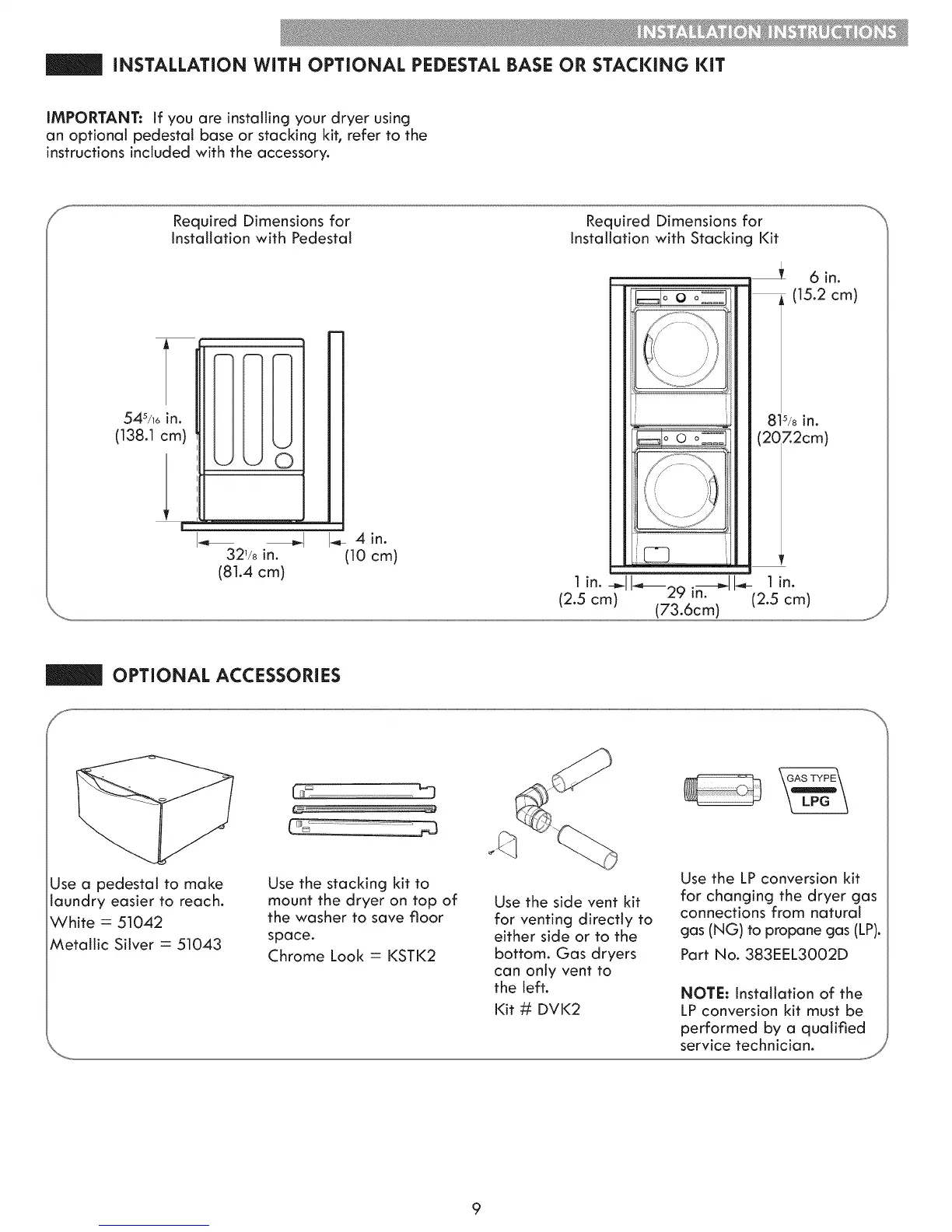

iNSTALLATiON WiTH OPTIONAL PEDESTAL BASE OR STACKING KiT
IMPORTANT: If you are installing your dryer using
an optional pedestal base or stacking kit, refer to the
instructions included with the accessory.
Required Dimensions for
installation with Pedestal
54s/16in.
(138.1 cm)
32V8 in. (10 cm)
(81.4 cm)
Required Dimensions for
installation with Stacking Kit
ik',\ /,,
m
(2C
I in. _11_29 in.-_ I_-
6in.
(15.2 cm)
81s/8in.
Z2cm)
1 in.
OPTIONAL ACCESSORIES
Use a pedestal to make
laundry easier to reach.
White = 51042
Metallic Silver : 51043
Use the stacking kit to
mount the dryer on top of
the washer to save floor
space.
Chrome Look = KSTK2
Use the side vent kit
for venting directly to
either side or to the
bottom. Gas dryers
can only vent to
the left.
Kit # DVK2
Use the LP conversion kit
for changing the dryer gas
connections from natural
gas (NG) to propane gas (LP).
Part No. 383EEL3002D
NOTE: installation of the
LP conversion kit must be
performed by a qualified
service technician,
