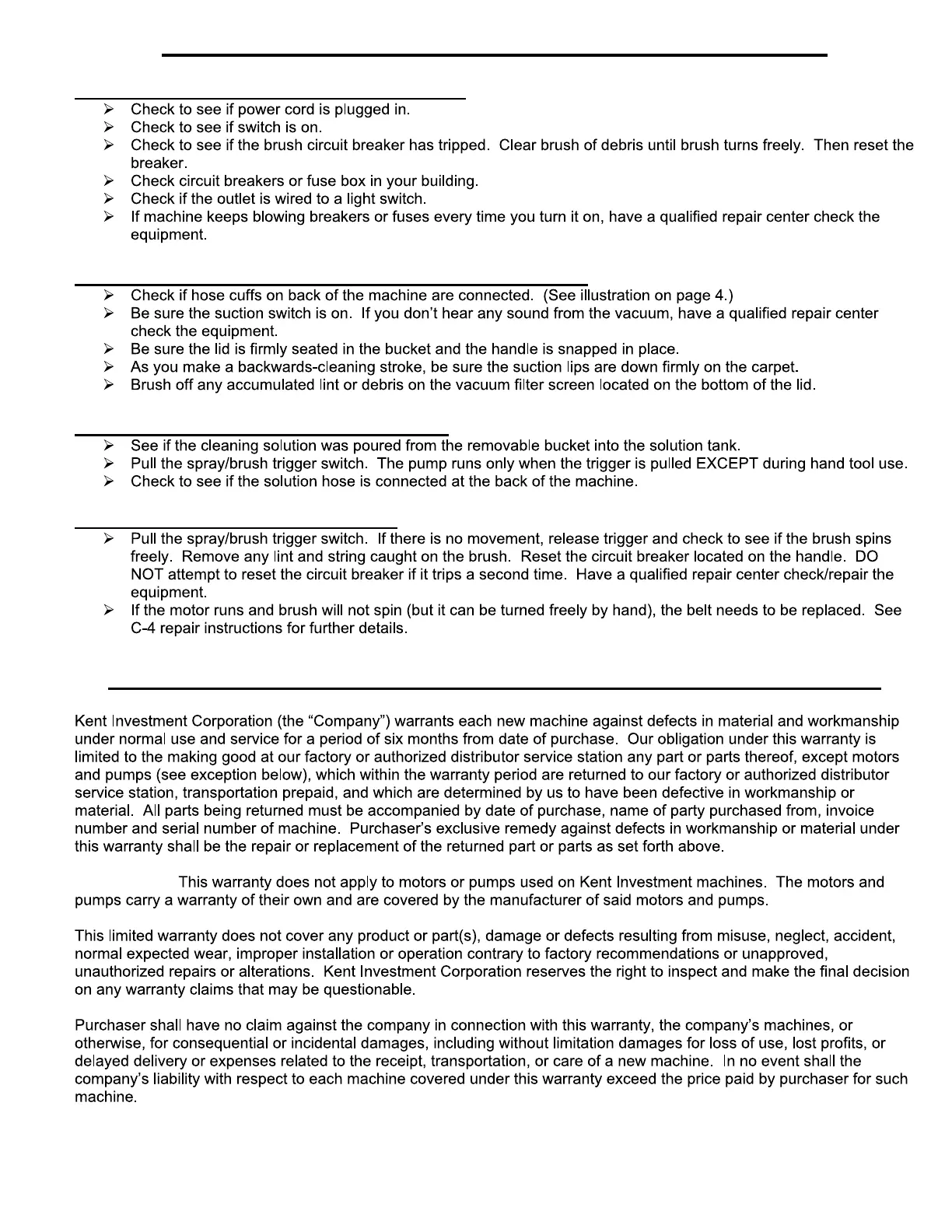

MACHINE OPERATION AND TROUBLESHOOTING
PROBLEM: LOSS OF ELECTRICAL POWER
PROBLEM: LOSS OF VACUUM / LITTLE OR NO SUCTION
PROBLEM: LACK OF WATER PRESSURE
PROBLEM: NO BRUSH MOVEMENT
KENT INVESTMENT CORPORATION LIMITED WARRANTY
EXCEPTION:
5
5
7
Table of Contents
