Upper Indicators

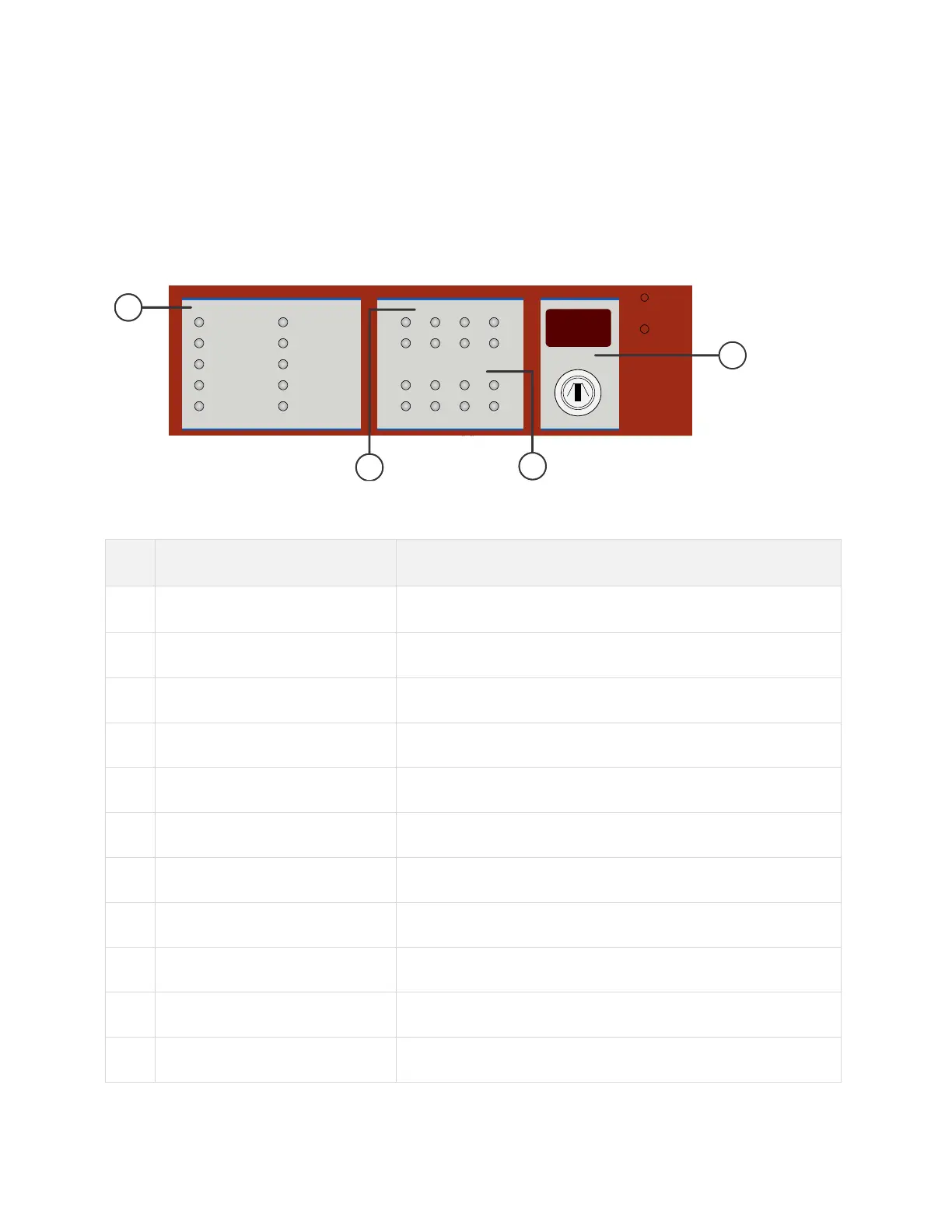

The figure below illustrates upper indicators of the Sigma A-CP Fire Control Panel:
Figure 2-4
Upper Indicators
The table below describes upper indicators of the Sigma A-CP Fire Control Panel:
Key Upper Indicators LED Color
A
General System Status
Fire
Red
AC Power On
Green
Delay On
Yellow
Test Mode On
Yellow
Disablement
Yellow
Supervisory
Yellow
NAC Trouble Disabled
Yellow
General Trouble
Yellow
System Trouble
Yellow
Alarm Silenced
Yellow
General System Status
Disabled
NAC Trouble
Mode
Trouble/Test/Disablement
Trouble/Test/Disablement
Enable Access
Test Mode On
Delay On
AC Power On
Alarm Silenced
Supervisory
Disablement
System Trouble
General Trouble
8765
4321
Fire
Alarm In Zone
Alarm In Zone
AA
B
B
C
C
D
