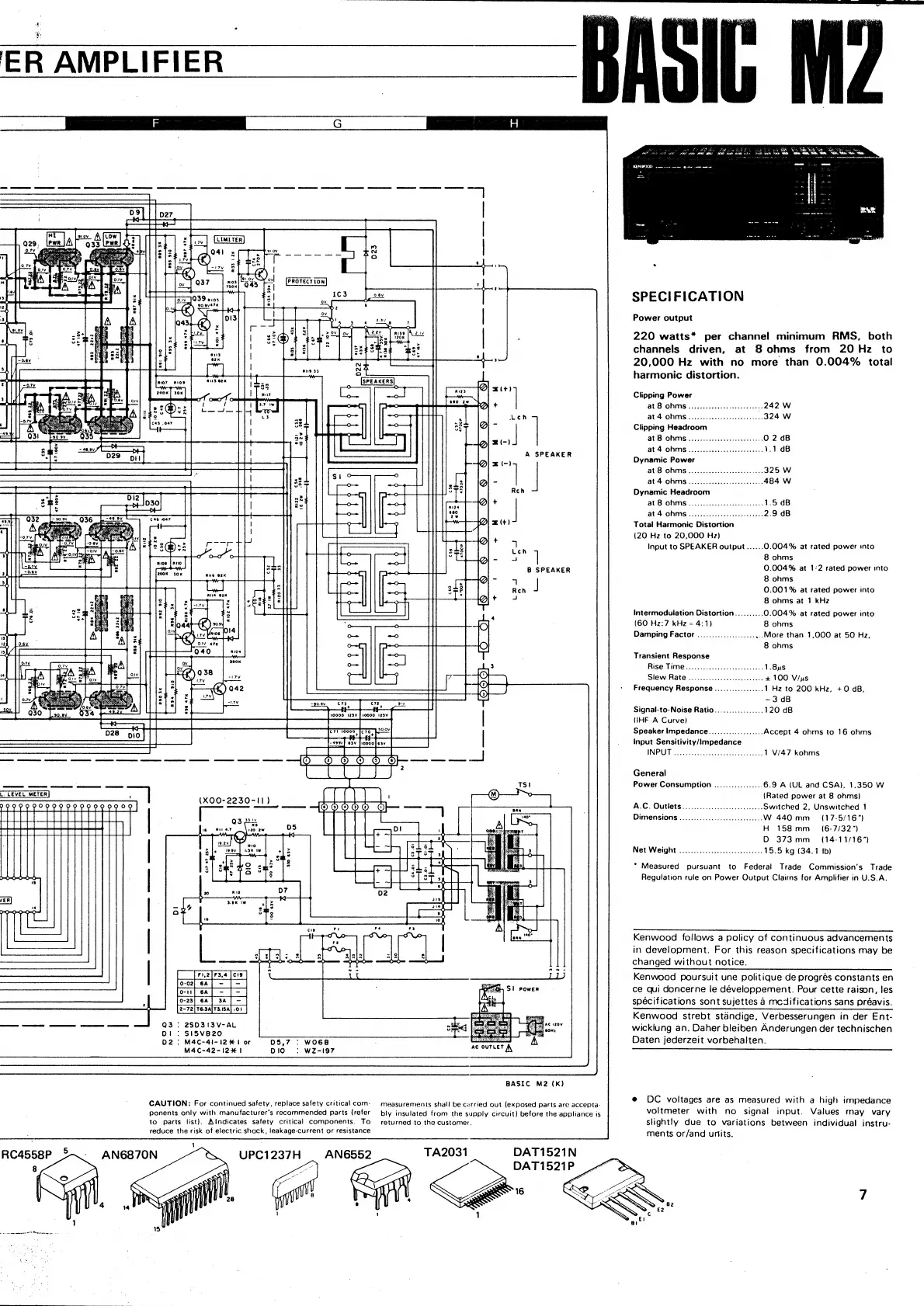

Kenwood BASIC M2 - Specification

ER AMPLIFIER
@i2i ¢c3$3
wo 2w .068
B SPEAKER
nen J
a
me To = Th
fatten [I
oe ere
a
L_ LEVEL METER] (X00-2230-11} fff | || i (M)
wea | D ®OOOO® O ===]
BRGdURARESRRAEUS i | Fans
aan SERRE aon Lu
16 Ri ar 120 2w
PEP tay Pt .
Ee
Ct? 47 25v
Ol: SISVB20
D2 : M4C-4I- 12% 1 or 05,7 : wWO6B
M4C-42-12% |! DIO | WZ-197
ac OUTLET A
BASIC M2 (K)
CAUTION: For continued safety, replace safety critical com- measurements shall be carried out (exposed parts are accepta-
ponents only with manufacturer's recommended parts (refer bly insulated from the supply circuit) before the appliance is
to parts list). Atndicates safety critical components. To returned to the customer.
reduce the risk of electric shock, leakage-current or resistance
DAT1521N
DAT1521P
TA2031
RC4558P UPC1237H AN6552
«at
Se
sear separ: ot te ny may
KERIO ewe ne ene Beate nee ee oe
.
SPECIFICATION
Power output
220 watts* per channel minimum RMS, both
channels driven, at 8 ohms from 20 Hz to
20,000 Hz with no more than 0.004% total
harmonic distortion.
Clipping Power
at 8 OhMS .................0cce es ..242 W
at 4 OWMS.................e eee 324 W
Clipping Headroom
at 8 OHMS................ cece eee O 2 dB
at 4 OWMS .............. cece eee 1.1 dB
Dynamic Power
at-B-ORMS fc65) Aw ieescctees 325 W
at 4:-ODMS .ceiceiiaeeddeees teaties 484 W
Dynamic Headroom
at 8 OHWMS ......... cece eee es 1.5 dB
at 4 OWMS ........... 0. cece ences 2.9 dB
Total Harmonic Distortion
(20 Hz to 20,000 Hz)
Input to SPEAKER output ...... 0.004% at rated power into
8 ohms
0.004% at 1:2 rated power into
8 ohms
0.001% at rated power into
8 ohms at 3 kHz
intermodulation Distortion.......... 0.004% at rated power into
(60 Hz:7 kHz = 4:1) 8 ohms
Damping Factor .................... ..-More than 1,000 at 50 Hz,
8 ohms
Transient Response
Ris@ TWM@ ee. cc odcas sees vies uae sos 1.8yus
Slew Rate ...............ccsceeeeee + 100 V/us
Frequency Response................. 1 Hz to 200 kHz, +0 dB,
~3 dB
Signal-to-Noise Ratio................. 120 dB
(IHF-A Curve)
Speaker Impedance................... Accept 4 ohms to 16 ohms
input Sensitivity/Impedance
INPUT sick cette topeatanse Wun ret: 1 V/47 kohms
General
Power Consumption ................. 6.9 A (UL and CSA), 1,350 W
(Rated power at 8 ohms)
A.C. Outlets 0... Switched 2, Unswitched 1
Dimensions .....................000.0005 W 440mm (17-5/16")
H 158mm_ (6-7/32”)
D 373mm_= (14-11/16")
Net Weight ........0..cccccccececeees 15.5 kg (34.1 tb)
* Measured pursuant to Federal Trade Commission's Trade
Regulation rule on Power Output Clairns for Amplifier in U.S.A.
Kenwood follows a policy of continuous advancements
in development. For this reason specifications may be
changed without notice.
Kenwood poursuit une politique de progrés constants en
ce qui doncerne le développement. Pour cette raison, les
specifications sont sujettes a mcdifications sans préavis.
Kenwood strebt standige, Verbesserungen in der Ent-
wicklung an. Daher bleiben Anderungen der technischen
Daten jederzeit vorbehalten.
e DC voltages are as measured with a high impedance
voltmeter with no signal input. Values may vary
slightly due to variations between individual instru-
ments or/and units.
