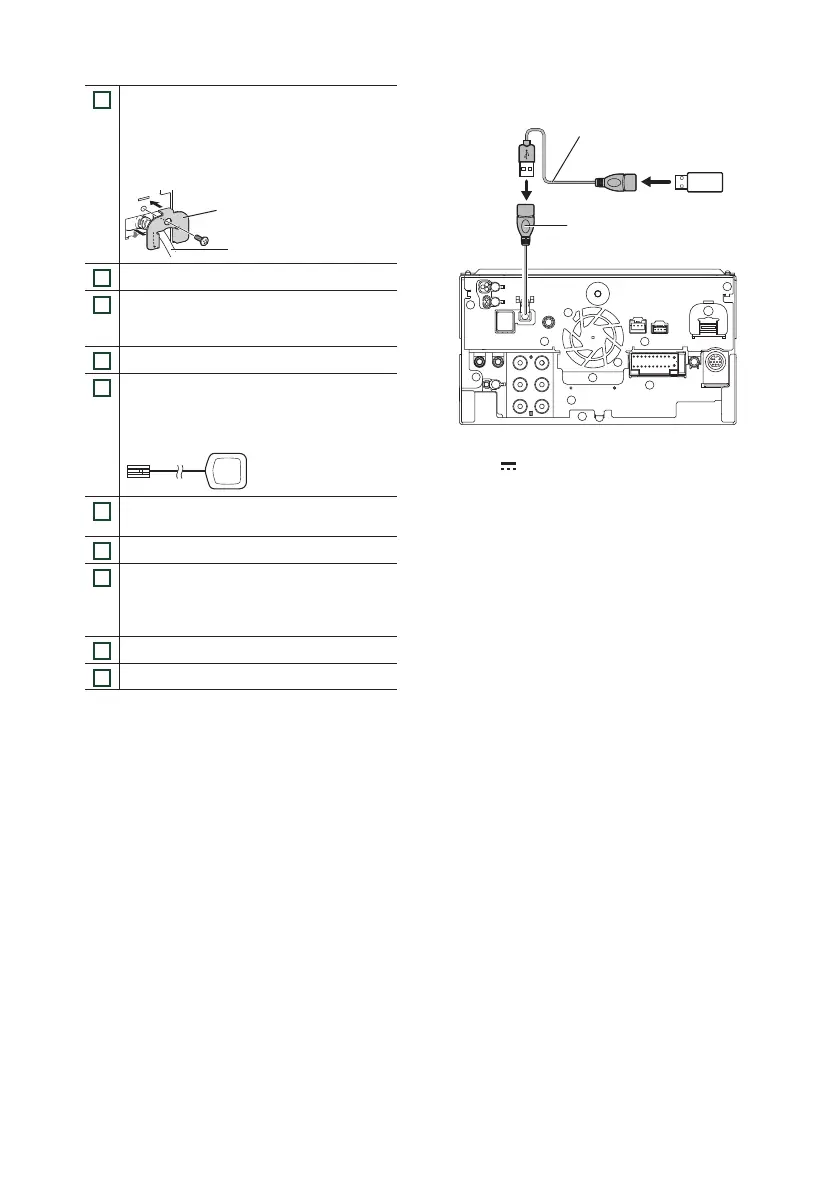

Connection/Installation
92
6
HDMI input
Use HDMI cable KCA-HD100 (optional
accessory).
When you connect the cable to HDMI terminal,
remove the fixture. After connecting the cable,
put the fixture again.
HDMI connector
Fixture
7
iDatalink connector
8
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.94)
9
AV Audio input (ø3.5 mini jack)
10
Accessory 6: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
11
3rd view camera input (Yellow). See To set up
the camera assignment settings (P.57).
12
Rear view camera input (Yellow) *
1
13
Front view camera/Dashboard camera input
(Yellow).
See To set up the camera assignment
settings (P.57). *
2
14
Video output (Yellow)
15
Video input (Yellow)
*1 Connect an HD camera to Rear view camera
input terminal to use HD video.
*2 Connect an HD camera to Front view camera/
Dashboard camera input terminal to use HD
video.
Ñ Connecting a USB device
USB device
[2]
USB terminal
[1]
Accessory 2 (1 m)
[3]
[1]
USB maximum power supply current :
DC 5 V 1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.93).
To Next Page
