Connection/Installation
108

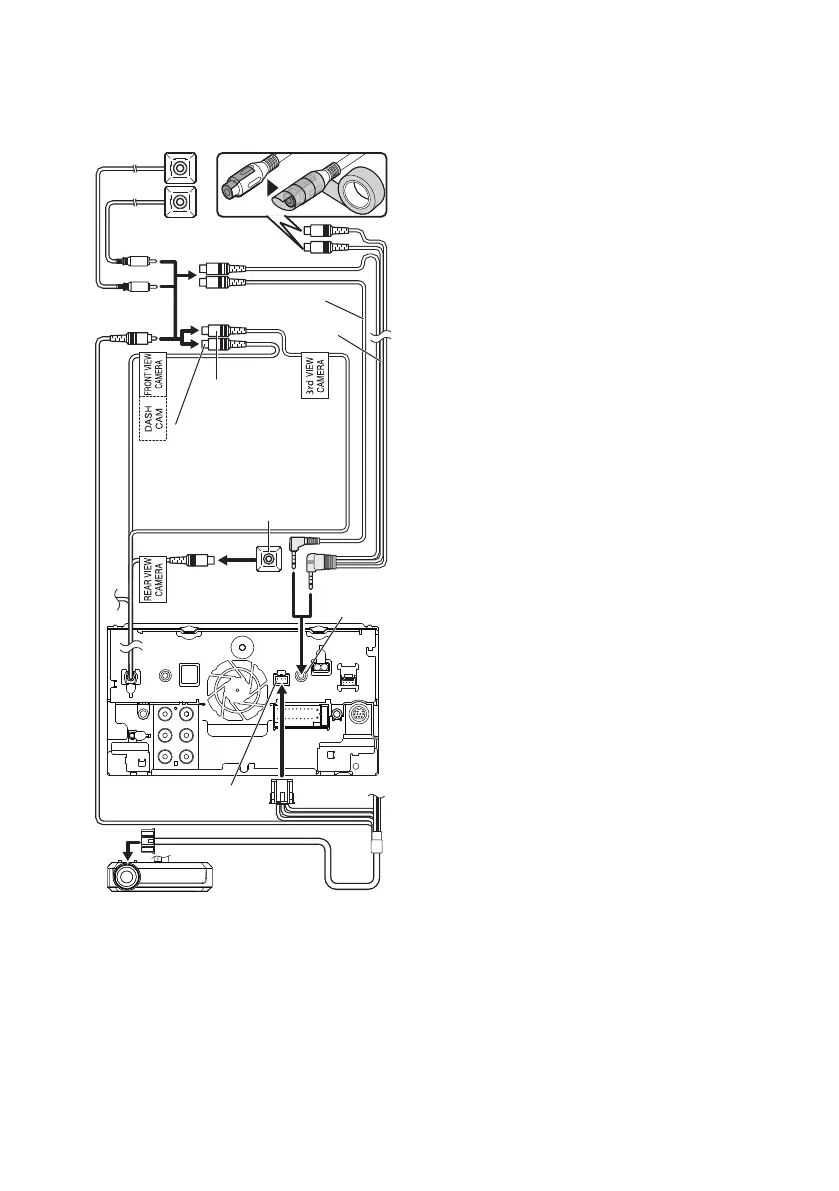

Ñ Connecting the camera
DRV-N520
[1]
3rd view camera
input (Yellow)
Front view camera/
Dashboard camera
input (Yellow)
[4]
[3]
Front view camera
[5] [7]
Left side view camera and
Right side view camera
[2]
Accessory -
[8]
CA-C3AV
[1]
VIDEO input (Yellow)
AV-IN input
Rear view camera
input (Yellow)
Dashboard camera interface
Rear view camera
[5] [6]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
more information, see Camera Assignment
Settings (P.76).
[4]
Insulate audio input terminals of a CA-C3AV
(optional accessory) when connecting to the
Camera.
[5]
CMOS-3xx series (optional accessory) or
commercially available camera.
[6]
For HD video, an HD camera is also used as
Rear view camera. (DDX9907XR / DMX957XR
only)
[7]
For HD video, an HD camera is also used as
Front view camera. (DDX9907XR / DMX957XR
only)
[8]
DDX9907XR / DMX957XR / DMX907S only
To Next Page
