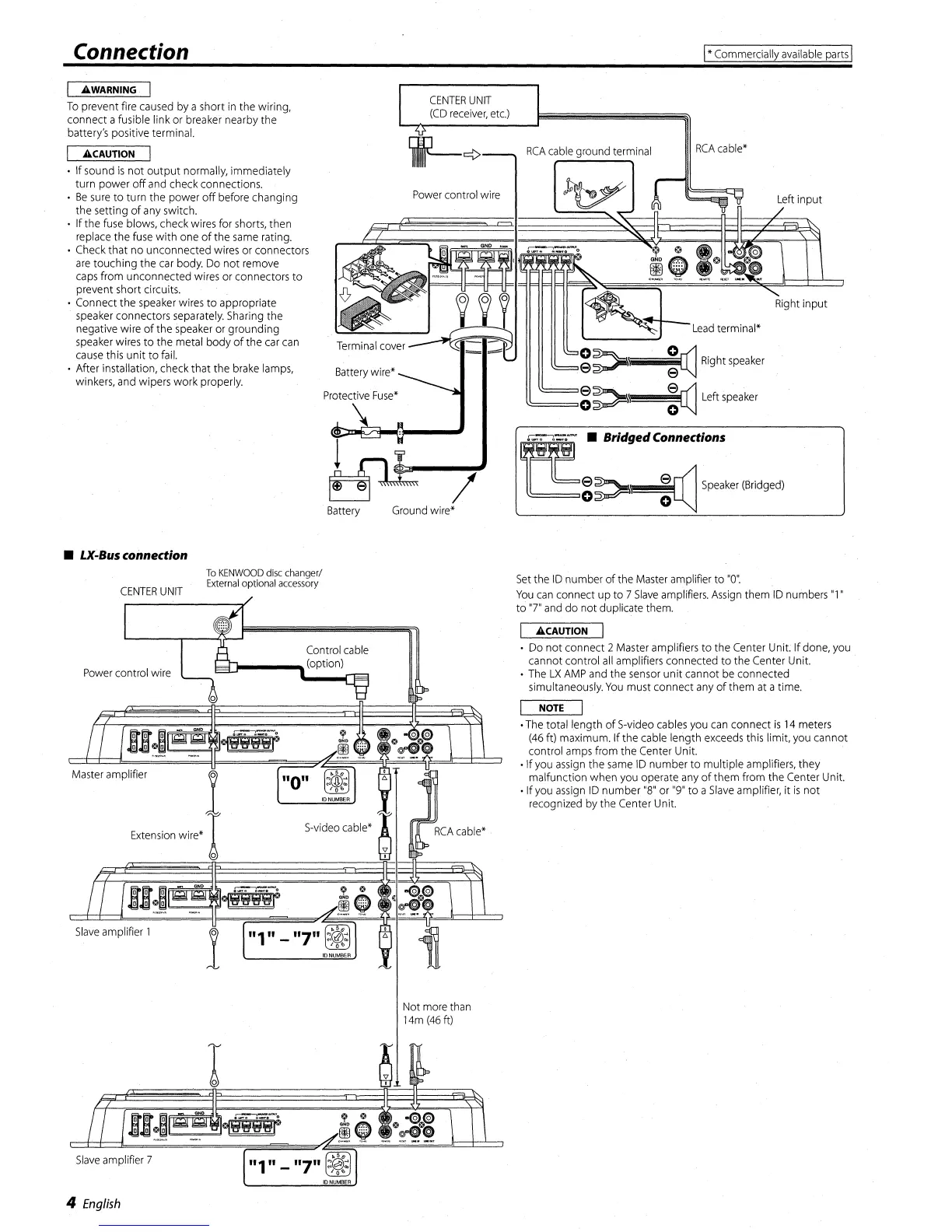

Connection
I* Commercially available parts I
Right input
RCA cable*
Lead terminal*
l_iiiiiiiiii;;i°~r1 Right speaker
8~
8r1
\'.!!!!!!!!!!!!~O~~ Left speaker
RCA cable ground terminal
.... -:-:":.- • BridgedConnections
~~~ Sp,,",'BMg,dl
CENTER UNIT
(CD receiver, etc.)
Power control wire
I
Ground wire* Battery
Protective Fuse*
o If sound is not output normally, immediately
turn power off
and check connections.
o Be sure to turn the power off before changing
the setting of
any switch.
o If the fuse blows, check wires for shorts, then
replace the fuse with one ofthe same rating.
•
Check that no unconnected wires or connectors
are touching the car body. Do not remove
caps from unconnected wires or connectors to
prevent short circuits.
o Connect the speaker wires to appropriate
speaker connectors separately. Sharing the
negative wire ofthe
speaker or grounding
speaker wires to the metal body of the car can
cause this unit to fail.
o After installation, check that the brake lamps,
winkers, and wipers work properly.
I AWARNING I
To prevent fire caused by a short in the wiring,
connect a fusible link
or breaker nearby the
battery's positive terminal.
ACAUTION
• LX-Bus connection
ACAUTION
• Do not connect 2 Master amplifiers to the Center Unit. If done, you
cannot control all amplifiers connected to the Center Unit.
•
The LX AMP and the sensor unit cannot be connected
simultaneously.
You must connect any ofthem at a time.
NOTE
• The total length of S-video cables you can connect is 14 meters
(46 ft) maximum. If the cable length exceeds this limit, you cannot
control
amps from the Center Unit.
•If
you assign the same ID number to multiple amplifiers, they
malfunction when
you operate any of them from the Center Unit.
·
If you assign ID number "8" or "9" to a Slave amplifier, it is not
recognized
by the Center Unit.
Set the ID number of the Master amplifier to "0".
You can connect up to 7 Slave amplifiers. Assign them ID numbers "1"
to "7" and do not duplicate them.
Control cable
I§:J----- .. (option)
o
To KENWOOD disc changerl
External optional accessory
I
ExtenSion wlre* r
CENTER UNIT
Power control wire
Master amplifier
Slave amplifier 1
Not
more than
14m (46 ft)
r
Slave amplifier 7
4 English
