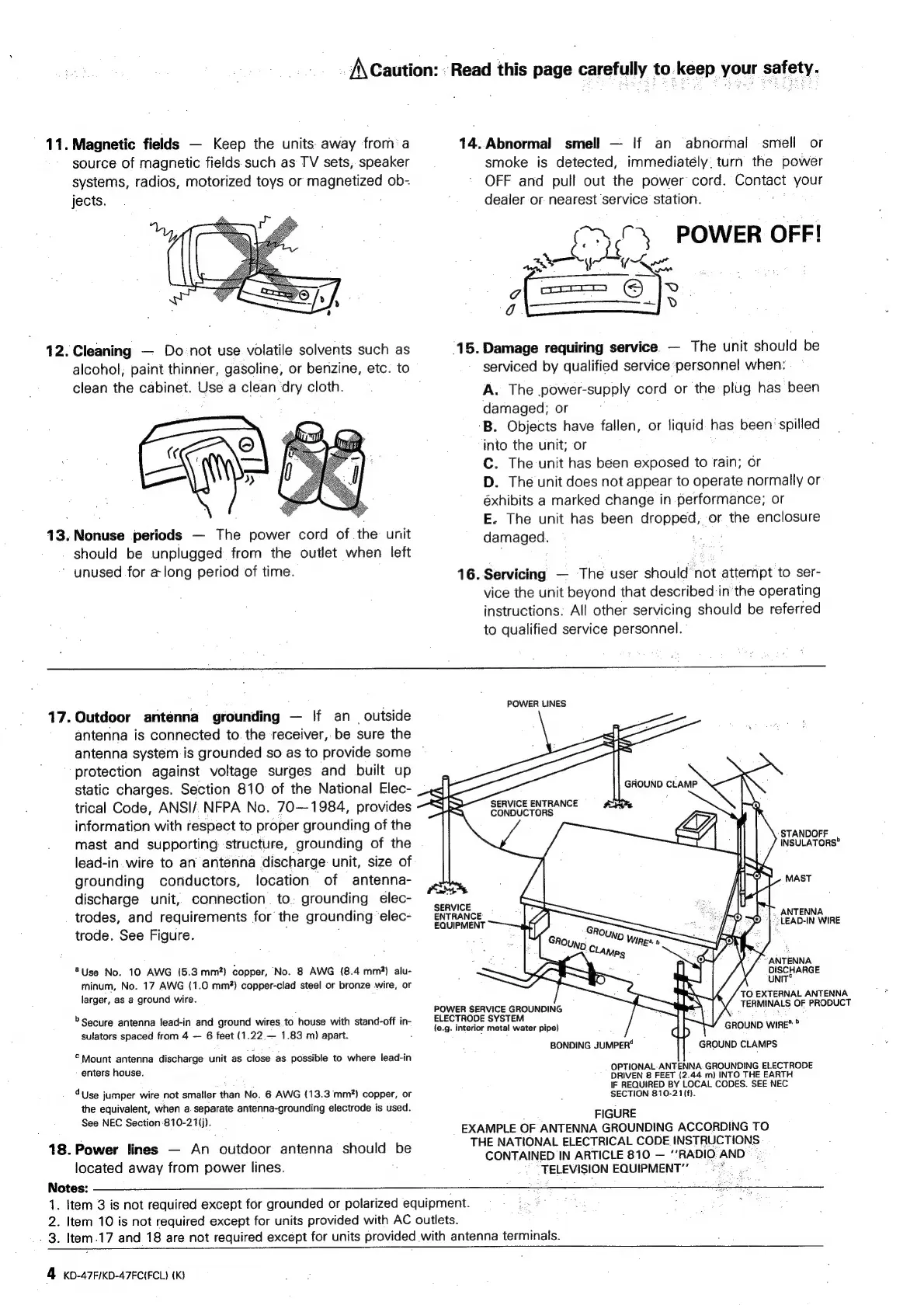

Kenwood KD-47F User Manual

A\Caution:
-Read
this
page
carefully
to.
keep
your
safety.
11. Magnetic fields — Keep the units: away from’a
source of magnetic fields such as TV sets, speaker
systems, radios, motorized toys or magnetized ob-
jects. .
12. Cleaning — Do not use volatile solvents such as
alcohol, paint thinner, gasoline, or benzine, etc. to
clean the cabinet. Use a clean dry cloth.
13.Nonuse periods — The power cord of. the unit
should be unplugged from the outlet when left
’ unused for along period of time.
14. Abnormal smell — If an abnormal smell or
smoke is detected, immediately. turn the power
OFF and pull out the power cord. Contact your
dealer or nearest service station.
rice POWER OFF!
it & 3
15.
Damage
requiring
service.
—
The
unit
should
be
serviced
by
qualified
service
‘personnel
when:
A. The power-supply cord or the plug has been
damaged; or
‘B.
Objects
have
fallen,
or
liquid
has
been
‘spilled
into
the
unit;
or
,
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or
éxhibits a marked change in performance; or
E. The unit has been dropped, or the enclosure
damaged. ba
16. Servicing — The user should not attempt to ser-
vice the unit beyond that described:in'the operating
instructions. All other servicing should be referred
to qualified service personnel.
17. Outdoor antenna grounding — |f an_ outside
antenna is connected to. the receiver, be sure the
antenna system is grounded so as to provide some
protection against voltage surges and built up
static charges. Section 810 of the National Elec-
trical Code, ANSI/, NFPA No. 70—1984, provides
information with respect to proper grounding of the
mast and supporting structure, grounding of the
lead-in. wire to an antenna discharge: unit, size of
grounding conductors, location of antenna-
discharge unit, connection. to. grounding elec-
trodes, and requirements for the grounding ‘elec-
trode. See Figure. ,
®Usea No. 10 AWG (5.3 mm?) copper, No. 8 AWG (8.4 mm?) alu-
minum, No. 17 AWG (1.0 mm?) copper-clad steel or bronze wire, or
larger, as a ground wire.
>Secure antenna lead-in and ground wires to house with stand-off in-
sulators spaced from 4 — 6 feet (1.22.— 1.83 m) apart. :
© Mount antenna discharge unit as close as possible to where lead-in
enters house.
4Use jumper wire not smaller than No. 6 AWG (13.3 mm?) copper, or
the equivalent, when a. separate antenna-grounding electrode is used.
See NEC Section:810-21(j).
18. Power lines — An outdoor antenna should be
located away from power lines.
Notes:
POWER LINES
SERVICE ENTRANCE
CONDUCTORS
“STANDOFF
INSULATORS?
MAST
SERVICE
ENTRANCE
EQUIPMENT
ANTENNA
=LEAD-IN WIRE
ANTENNA
DISCHARGE
UNIT®
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
{e.g. interior metal water pipe}
BONDING JUMPER*® GROUND CLAMPS
OPTIONAL ANTENNA GROUNDING ELECTRODE
DRIVEN 8 FEET (2.44 m) INTO THE EARTH
IF REQUIRED BY LOCAL CODES. SEE NEC
SECTION 810-21(f).
. FIGURE
EXAMPLE OF ANTENNA GROUNDING ACCORDING TO
THE NATIONAL ELECTRICAL CODE INSTRUCTIONS
CONTAINED IN ARTICLE 810 — ‘'RADIO. AND
TELEVISION EQUIPMENT’’ i.
1. ltem 3 is not required except for grounded or polarized equipment.
2. Item 10 is not required except for units provided with AC outlets.
.
3.
Item.17
and
18
are
not
required
except
for
units
provided
with
antenna
terminals.
4 KD-47F/KD-47FC(FCL) (K)
