Kenwood KVT-819DVD User Manual

• For the basic method of how to watch DVDNCD, refer to <Basic Operations> (page 12).
• Set the remote controller mode switch to "DVD" mode before starting operation, refer to <Remote Controller mode switch>
(page
92).

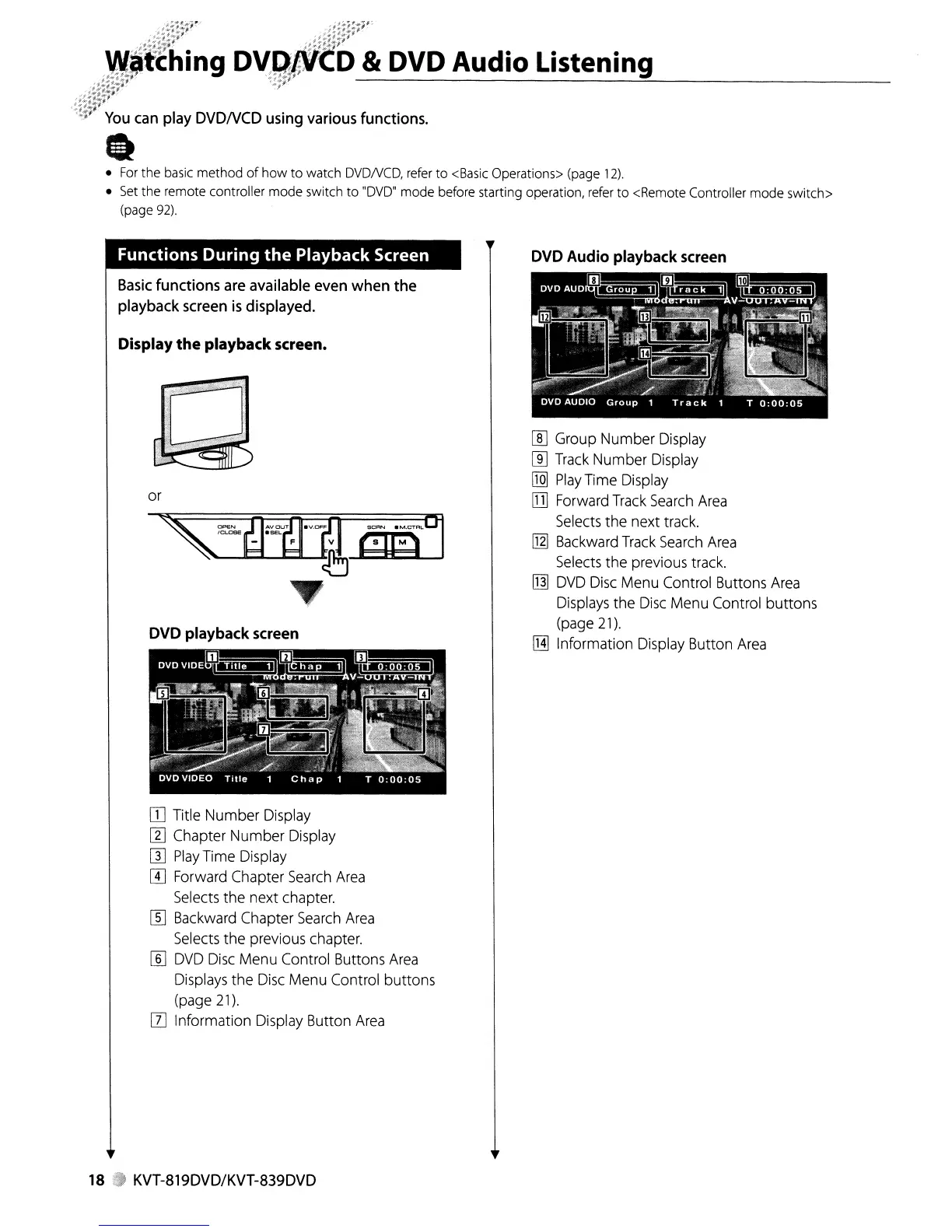

Functions During the Playback Screen
Basic functions are available even when the
playback screen is displayed.
Display the playback screen.
or
OJ Title Number Display
[1J Chapter Number Display
W Play Time Display
[I] Forward Chapter Search Area
Selects the next chapter.
[[] Backward Chapter Search Area
Selects the previous chapter.
[§] DVD Disc Menu Control Buttons Area
Displays the Disc Menu Control buttons
(page 21).
[I] Information Display Button Area
18 KVT-819DVD/KVT-839DVD
DVD Audio playback screen
[[] Group Number Display
[ID Track Number Display
[IQ] Play Time Display
[IT] Forward Track Search Area
Selects the next track.
[g] Backward Track Search Area
Selects the previous track.
[DJ DVD Disc Menu Control Buttons Area
Displays the Disc Menu Control buttons
(page 21).
[H] Information Display Button Area

Kenwood KVT-819DVD Specifications

Display

picture size	6.97 inches
display resolution	336, 960 pixels
display dimensions	154.1 x 87.1 mm

Power

operating voltage	14.4 V
current consumption	15 A
maximum power supply current	500 mA

Operating Environment

operational temperature range	-10°C~+60°C
storage temperature range	-20°C~+85°C

Audio

maximum power (front & rear)	50W x 4
preout level	5V/10kΩ
speaker impedance	4~8Ω

Weight and Dimensions

main unit weight	2.2 kg
hideaway unit weight	1.1 kg
main unit dimensions	182 × 53 × 161 mm
hideaway unit dimensions	228 x 40 x176 mm
