Kenwood KVT-819DVD User Manual

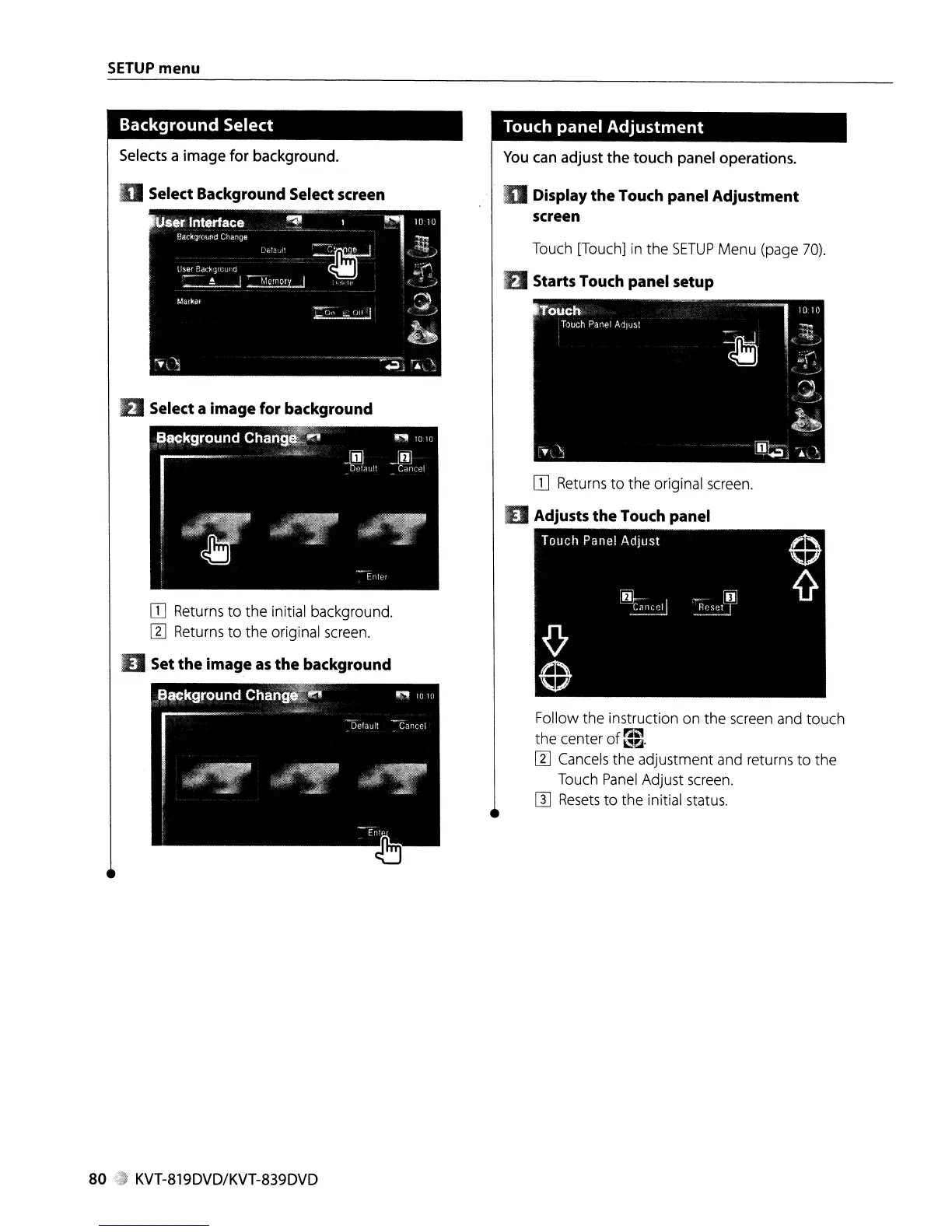

SETUP menu
Follow the instruction on the screen and touch
rat
the center of £l!m.
rn Cancels the adjustment and returns to the
Touch Panel Adjust screen.
[I] Resets to the initial status.
rn Returns to the original screen.
Adjusts the Touch panel
Display
the Touch panel Adjustment
screen
Touch [Touch] in the SETUP Menu (page 70).
Starts Touch panel setup
Select a
image for background
rn Returns to the initial background.
rn Returns to the original screen.
D Set the image as the background
Selects a image for background.
Background Select
D Select Background Select screen
80 KVT-819DVD/KVT-839DVD

Kenwood KVT-819DVD Specifications

Display

picture size	6.97 inches
display resolution	336, 960 pixels
display dimensions	154.1 x 87.1 mm

Power

operating voltage	14.4 V
current consumption	15 A
maximum power supply current	500 mA

Operating Environment

operational temperature range	-10°C~+60°C
storage temperature range	-20°C~+85°C

Audio

maximum power (front & rear)	50W x 4
preout level	5V/10kΩ
speaker impedance	4~8Ω

Weight and Dimensions

main unit weight	2.2 kg
hideaway unit weight	1.1 kg
main unit dimensions	182 × 53 × 161 mm
hideaway unit dimensions	228 x 40 x176 mm
