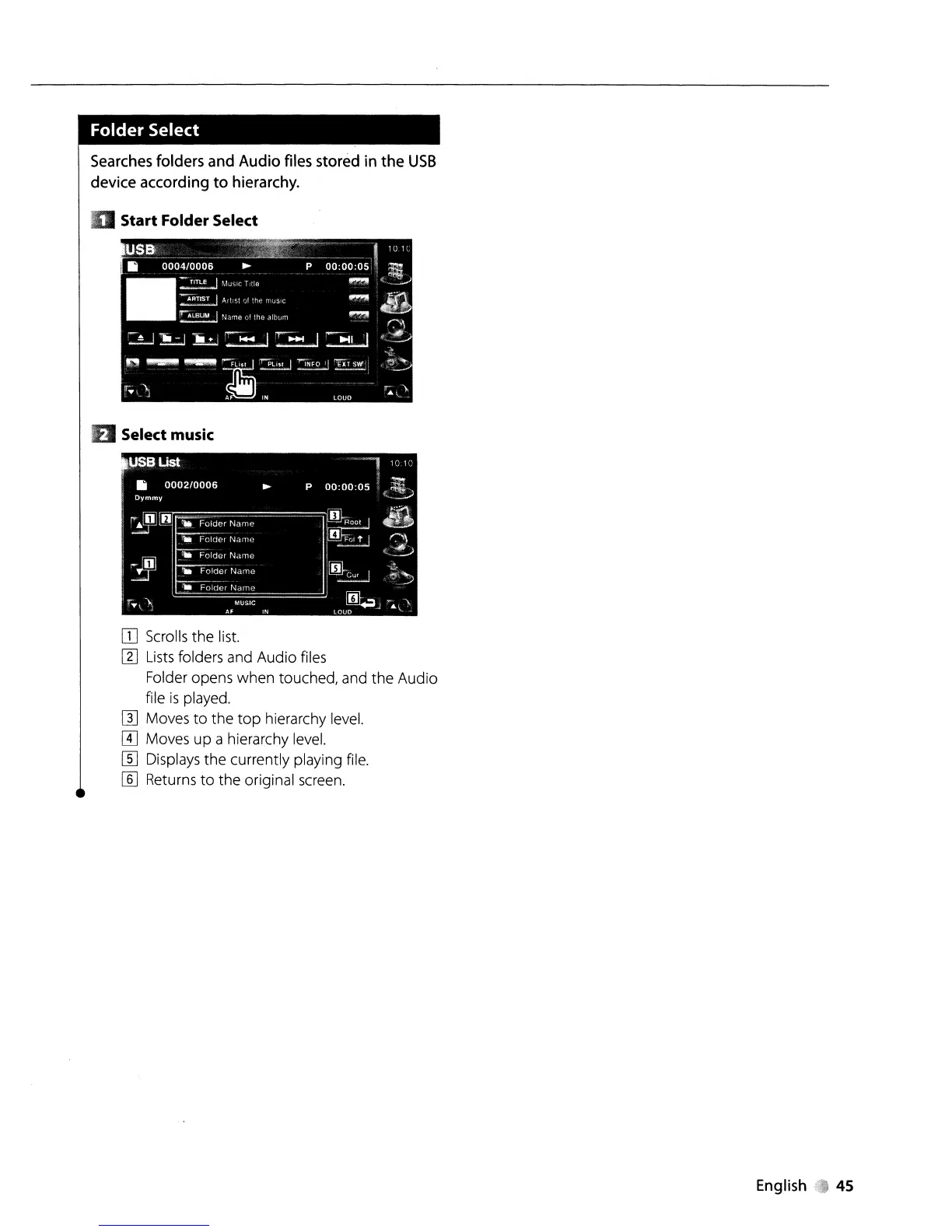

Folder Select
Searches folders and Audio files stored in the USB
device according to hierarchy.
Start Folder Select
D Select music
OJ Scrolls the list.
[I] Lists folders and Audio files
Folder opens when touched, and
the Audio
file
is played.
W Moves to the top hierarchy level.
[I] Moves up a hierarchy level.
[[] Displays the currently playing file.
[§] Returns to the original screen.
English 4S

Kenwood KVT-819DVD Specifications

Display

picture size	6.97 inches
display resolution	336, 960 pixels
display dimensions	154.1 x 87.1 mm

Power

operating voltage	14.4 V
current consumption	15 A
maximum power supply current	500 mA

Operating Environment

operational temperature range	-10°C~+60°C
storage temperature range	-20°C~+85°C

Audio

maximum power (front & rear)	50W x 4
preout level	5V/10kΩ
speaker impedance	4~8Ω

Weight and Dimensions

main unit weight	2.2 kg
hideaway unit weight	1.1 kg
main unit dimensions	182 × 53 × 161 mm
hideaway unit dimensions	228 x 40 x176 mm
