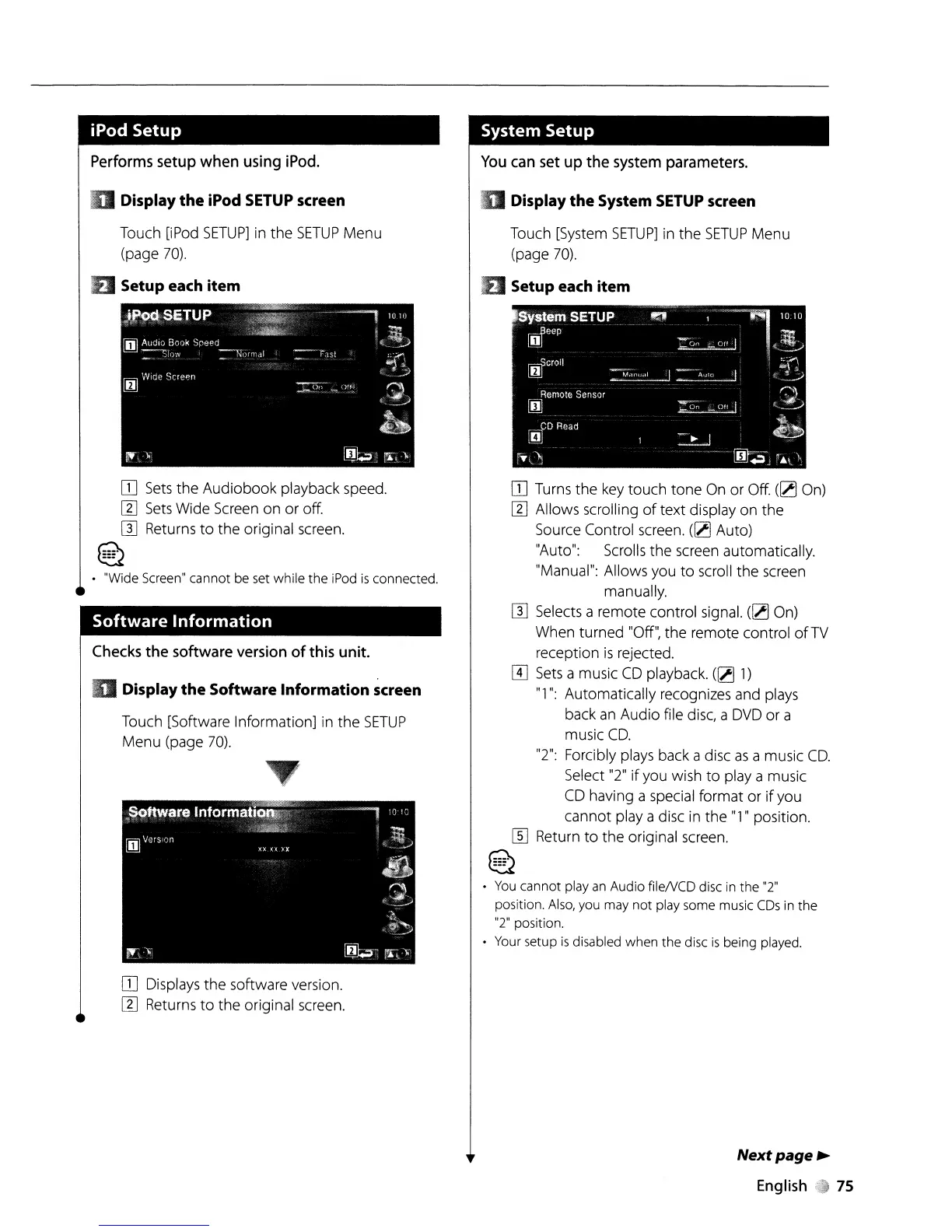

Kenwood KVT-819DVD User Manual

Display the iPod SETUP screen
Touch [iPod SETUP] in the SETUP Menu
(page 70).
Setup each item
IT] Sets the Audiobook playback speed.
[?J Sets Wide Screen on or off.
W Returns to the original screen.
~
~
• "Wide Screen" cannot be set while the iPod is connected.
Display the Software Information screen
Touch [Software Information] in the SETUP
Menu (page 70).
IT] Displays the software version.
[?J Returns to the original screen.
You can set up the system parameters.
Display the System SETUP screen
Touch [System SETUP] in the SETUP Menu
(page
70).
Setup each item
IT] Turns the key touch tone On or Off. ([2] On)
[?J Allows scrolling of text display on the
Source Control screen. ([2] Auto)
"Auto": Scrolls
the screen automatically.
"Manual": Allows you
to scroll the screen
manually.
[[] Selects a remote control signal. ([2] On)
When
turned "Off", the remote control of TV
reception is rejected.
[i] Sets a music CD playback. ([2] 1)
"1 ": Automatically recognizes and plays
back
an Audio file disc, a DVD or a
music
CD.
"2": Forcibly plays back a disc as a music CD.
Select "2" if you wish to playa music
CD having a special format or if you
cannot playa disc in the "1" position.
[]] Return to the original screen.
~
~
• You cannot play an Audio fileNCD disc in the "2"
position. Also, you may not play some music CDs in the
"2" position.
• Your setup
is disabled when the disc is being played.
Nextpage~
English 7S

Kenwood KVT-819DVD Specifications

Display

picture size	6.97 inches
display resolution	336, 960 pixels
display dimensions	154.1 x 87.1 mm

Power

operating voltage	14.4 V
current consumption	15 A
maximum power supply current	500 mA

Operating Environment

operational temperature range	-10°C~+60°C
storage temperature range	-20°C~+85°C

Audio

maximum power (front & rear)	50W x 4
preout level	5V/10kΩ
speaker impedance	4~8Ω

Weight and Dimensions

main unit weight	2.2 kg
hideaway unit weight	1.1 kg
main unit dimensions	182 × 53 × 161 mm
hideaway unit dimensions	228 x 40 x176 mm
