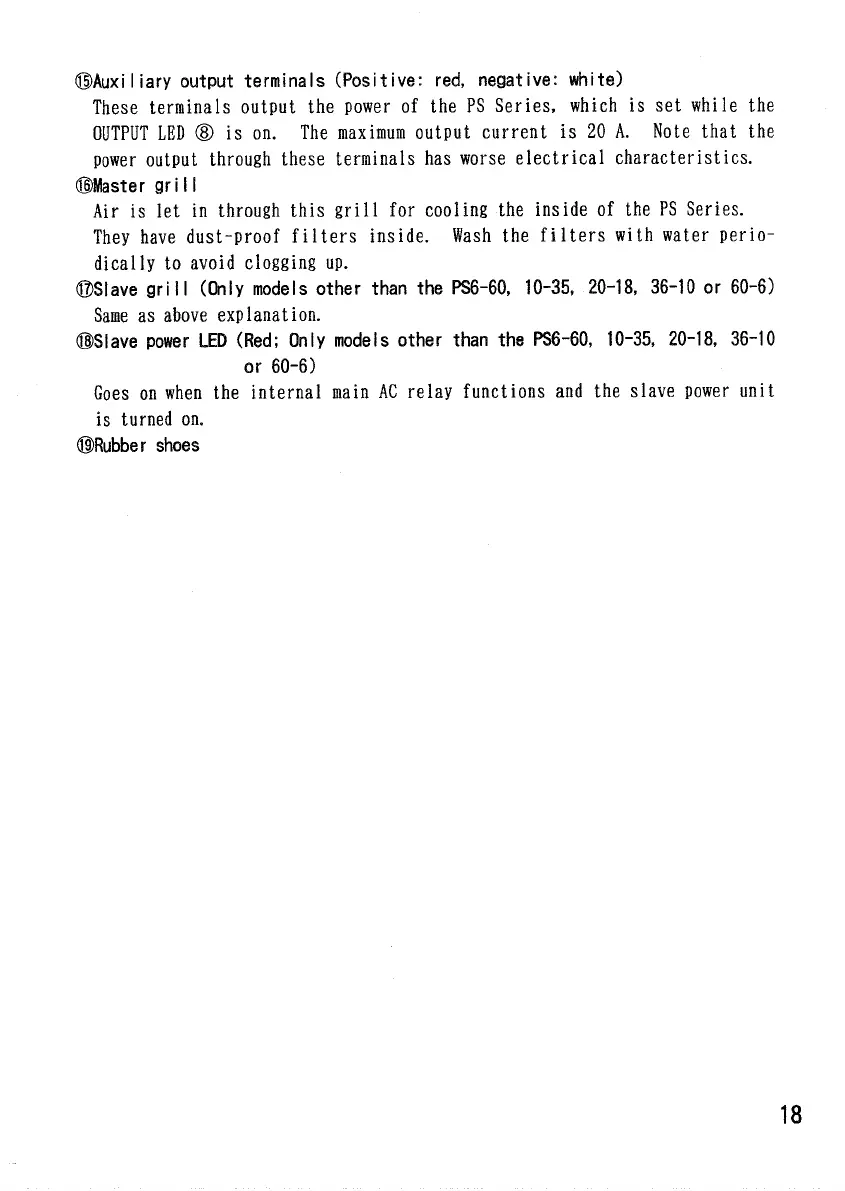

©Auxiliary
output
terminals
(Positive:
red
negative: white)
These
terminals
output the
power
of the PS
Series,
which is set
while
the
OUTPUT
LED ® is on. The
maximum
output
current
is 20 A.
Note
that
the
power
output through
these terminals
has worse
electrical
characteristics.
©Master
or
ill
Air
is let in through
this
grill
for
cooling
the
inside
of the PS
Series.
They
have dust-proof
filters
inside.
Wash
the
filters
with
water
perio-
dically
to
avoid clogging
up.
©Slave
grill
(Only
models
other than the
PS6-60,
10-35,
20-18,
36-10 or 60-6)
Same
as
above
explanation.
©Slave
power
LED (Red;
Only
models
other than the
PS6-60,
10-35,
20-18,
36-10
or 60-6)
Goes
on
when
the
internal
main
AC
relay
functions
and the
slave
power
unit
is
turned on.
©Rubber
shoes
18
