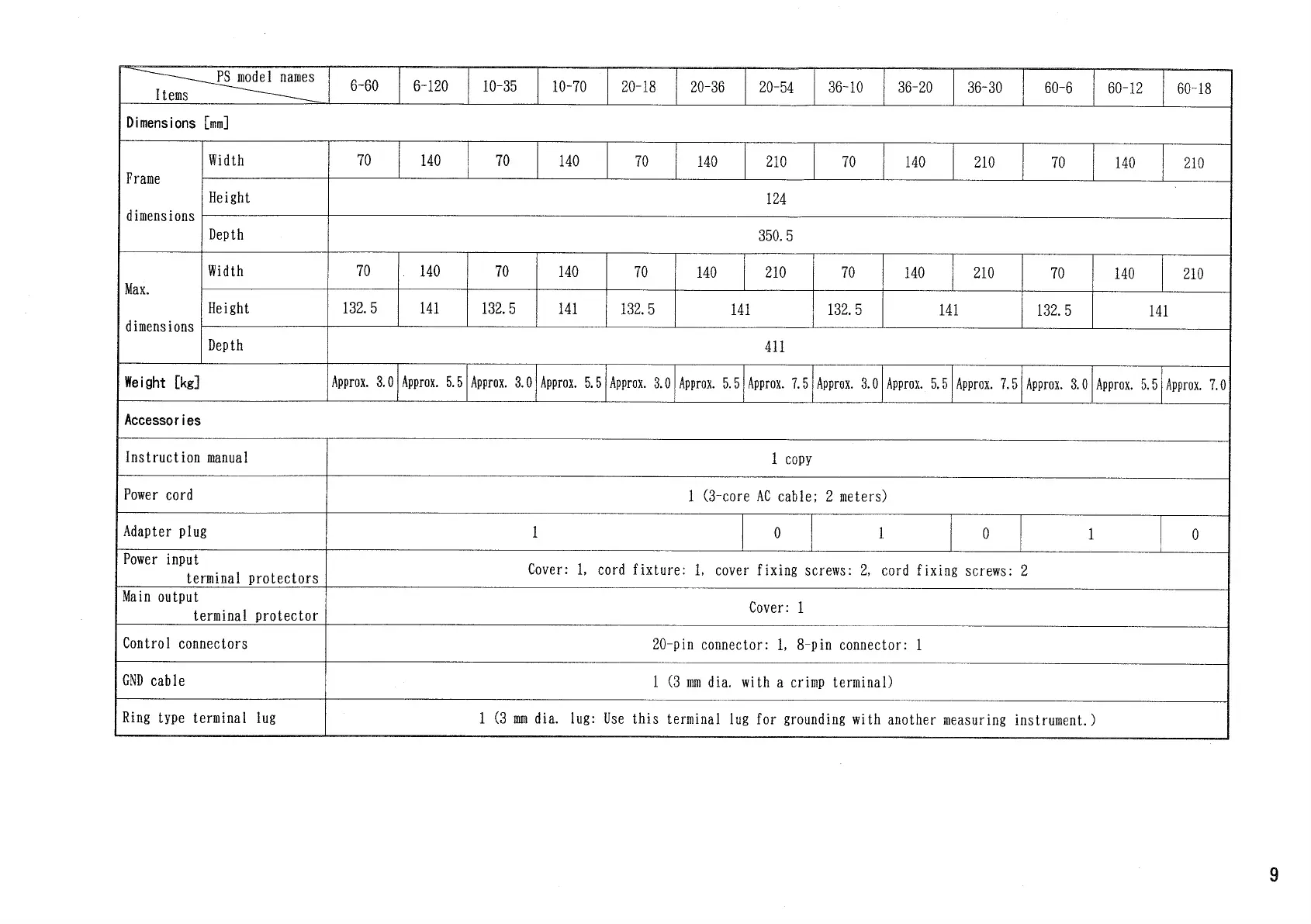

Kenwood PS Series User Manual

-—____PSraodel names
Items ———.
6-60
6-120 10-35
10-70
20-18 20-36
20-54
36-10 36-20
36-30
60-6 60-12
60-18
Dimensions [mm]
Frame
dimensions
Width 70
140 70
140
70 140
210 70 140
210
70
140
210
Frame
dimensions
Height
124
Frame
dimensions
Depth
350. 5
Max.
dimensions
Width 70
140 70
140
70
140 210 70
140 210
70
140
210
Max.
dimensions
Height 132.5 141
132.5
141
132.5
141 132.5
141
132.5
141
Max.
dimensions
Depth
411
Weight [kg]
Approx. 3.0
Approx. 5.5
Approx. 3.0
Approx. 5.5
Approx. 3.0
Approx. 5.5
Approx. 7.5 Approx. 3.0 Approx. 5.5
Approx. 7.5
Approx. 3.0
Approx. 5.5
Approx. 7.0
Accessories
Instruction manual
1 copy
Power cord
1 (3-core AC cable; 2 meters)
Adapter plug
1
0
1
0
1
0
Power input
terminal protectors
Cover: 1, cord fixture: 1, cover fixing screws: 2, cord fixing screws: 2
Main output
terminal protector
Cover: 1
Control connectors
20-pin connector: 1, 8-pin connector: 1
GND cable
1 (3 mm dia. with a crimp terminal)
Ring type terminal lug
1 (3 mm dia. lug: Use this terminal lug for grounding with another measuring instrument.)
9

Kenwood PS Series Specifications

General

Category	Power Supply
Manufacturer	Kenwood
Input Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	Adjustable
Line Regulation	≤0.01% + 3mV
Load Regulation	≤ 0.01% + 3 mV
Ripple and Noise	≤1mVrms
Display	Digital LED
Model	PS Series
Protection	overvoltage, overtemperature
Input Voltage	100/110/120/220/230/240 VAC (depending on the model and region)
