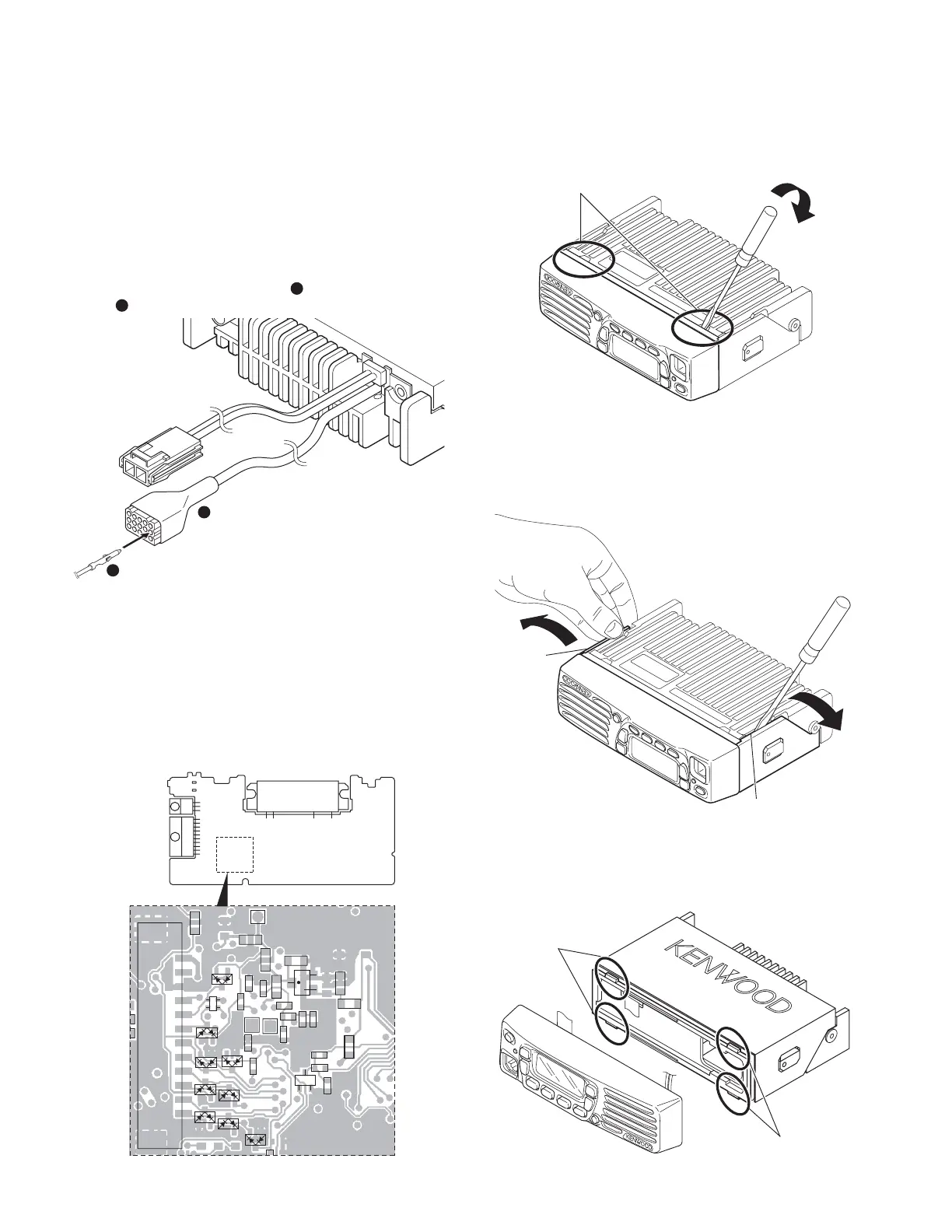

7. Ignition Sense Cable (KCT-18)
The KCT-18 is an optional cable for enabling the ignition
function. The ignition function lets you turn the power to the
transceiver on and off with the car ignition key.
7-2. Connecting the KCT-18 to the Transceiver
1. Install the KCT-39 in the transceiver. (See the KCT-39 sec-
tion)
2. Insert the KCT-18 lead terminal (
1
) into pin 2 of the KCT-
39 (
2
).
2
1
13
15
1
3
7-3. Modifying the Transceiver
Modify the transceiver as follows to turn the power on and
off with the ignition key.
1. Remove the resistor R95 of the TX-RX unit.
■ Setting With the KPG-99D(E)
Select “Function port” from the “Edit” menu and enable
the “Ignition Sense”.
Fig. 7
Fig. 8
REALIGNMENT / DISASSEMBLY FOR REPAIR
1. When you remove the panel, turn the transceiver up side
down. Detach the panel by lifting the tabs as shown be-
low.
2. To remove the cabinet, first turn the transceiver up side
down. Detach the cabinet by prying the tabs as shown
below.
3. When mounting the front panel, match the 4 tabs of the
chassis with the panel, being sure they attach securely.
Fig. 1
Fig. 2
Fig. 3
Tabs
Tabs
Tabs
Tabs
Tabs
TX-RX UNIT
Component side
CN2
R95
To Next Page
