TK-7160/7162
3
SERVICE
This radio is designed for easy servicing. Refer to the
schematic diagrams, printed circuit board views, and align-
ment procedures contained in this manual.

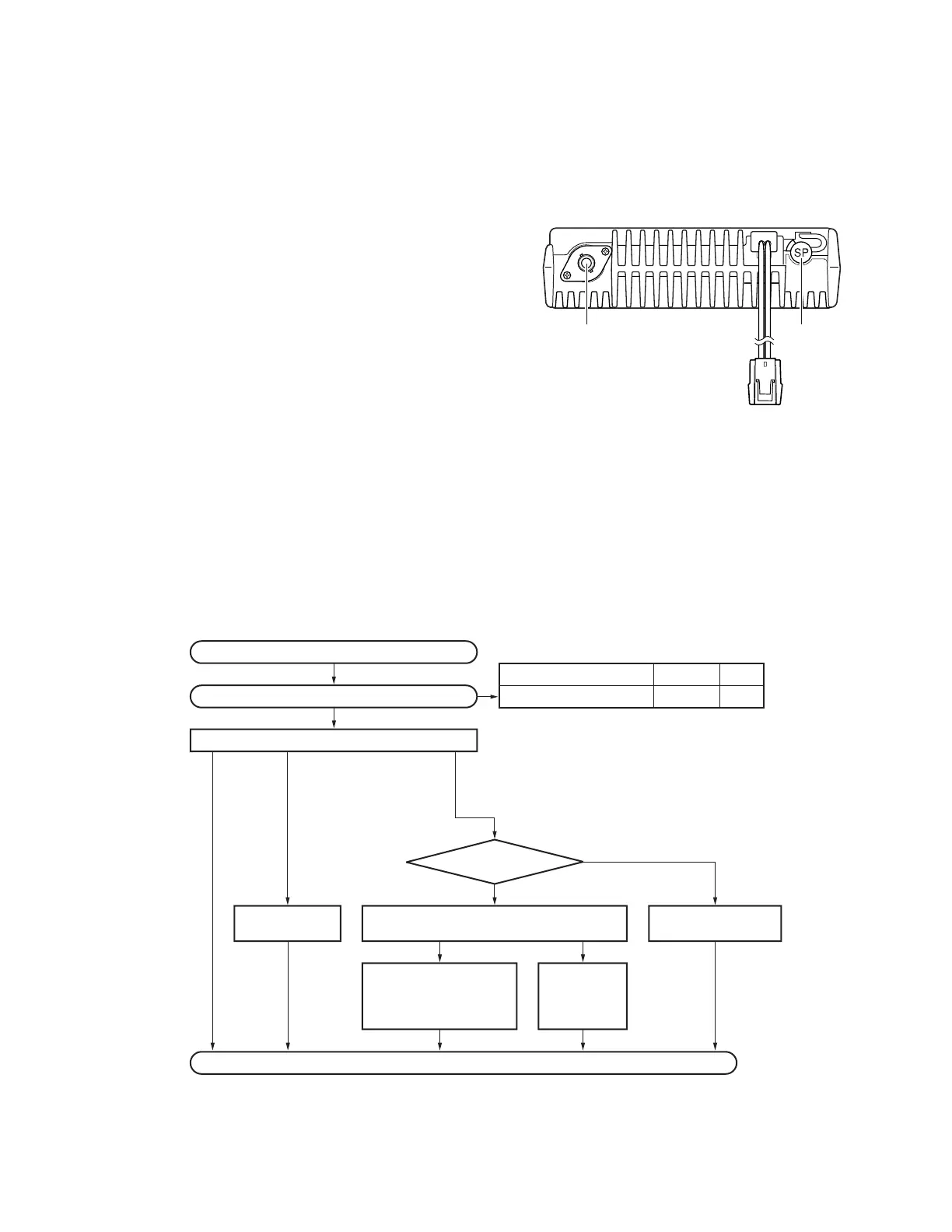

GENERAL / SYSTEM SET-UP
External
speaker jack
Power input
connector
Antenna
connector
Merchandise received
Choose the type of transceiver
Transceiver programming
KCT-39
Connection cable
KCT-18
Ignition sense cable
KCT-36
Extension cable
KDS-100
Mobile data
terminal
KGP-2A
Modem GPS receiver or
KGP-2B
Modem GPS controller
KES-3
External speaker
See page 6.
A personal computer (IBM PC or compatible),
programming interface (KPG-46),
and programming software (KPG-99D(E))
are required for programming.
Frequency range (MHz) RF power
Type
136~174 25W E
(Option)
(Option) (Option)
(Option)(Option)
(Option)
or
Delivery
SYSTEM SET-UP
NOTE
If you do not intend to use the 3.5-mm jack for the external
speaker, fit the supplied speaker-jack cap to stop dust and
sand from getting in.
