Kenwood TM-V7A Service Manual

TM-V7A/E
@Squelch signal output circuit
CIRCUIT DESCRIPTION
This is the squelch output input to the TNC in reer to SQC terminal output L:SQ CLOSE
prevent collisions in packet communications. The logic is (8402 pin 6) H:SQ BUSY
as shown in Table 9. This is digital transistor output pulled
up to 5V. Table9
°)|
R519 J |
MeN “Ny IC503
To
VCO
modulation
°
=
“Apin
Variable capacitor diode R520 «| C526 © \
CN 503 Lag AN, Hf f
microprocessor MOU — —
P34}
—
:
oe
(1200bps) \
vss mi
1t
icroprocessor
microp! 30F C576
(9600bps)
microprocessor
>
(DTMF Monitor) C567 C566
TF tF
C571 C570 R591 R590
tI {| ANY + + ANY
al
wo ike)
al ce
—4 o—
D506 D507
Path®
50pin microprocessor ~«
=
microprocessor th) (Repeater RD mute)
P37
8
a
TIT IC507
23pin
Cross point switch (IC510) C543 R552 cTCSS 2
Bh BH Ri an Dawe
a {} MIC RD PKDL—
7 C fe)
Al Fs Re Q508 BUFFER AMP PKS PRO
5 ) Noe
3 pu R3 Q506 PRI sac
® § BUFFER AMP
: $ N,
o 5 Lh
= = Bi Ra LL
B . BUFFER AMP
Pa
N
tee-
IC 506
x Js Fai R5 ~
{}> DTMF
Ba iB P R6 Recorder
C4
Microprocessor 5 " we
e1 ce c3 sQ output control
oO R425 IC503
CLOCK DATA RESET] LOAD Microprocessor 10 NM
N
N Packet stanb’
RDU RDV Fe Bonet taney 1C503
P52 P51 P53 3
. , r-—--—-< MIC RD
microprocessor Path© R527
14
1C507

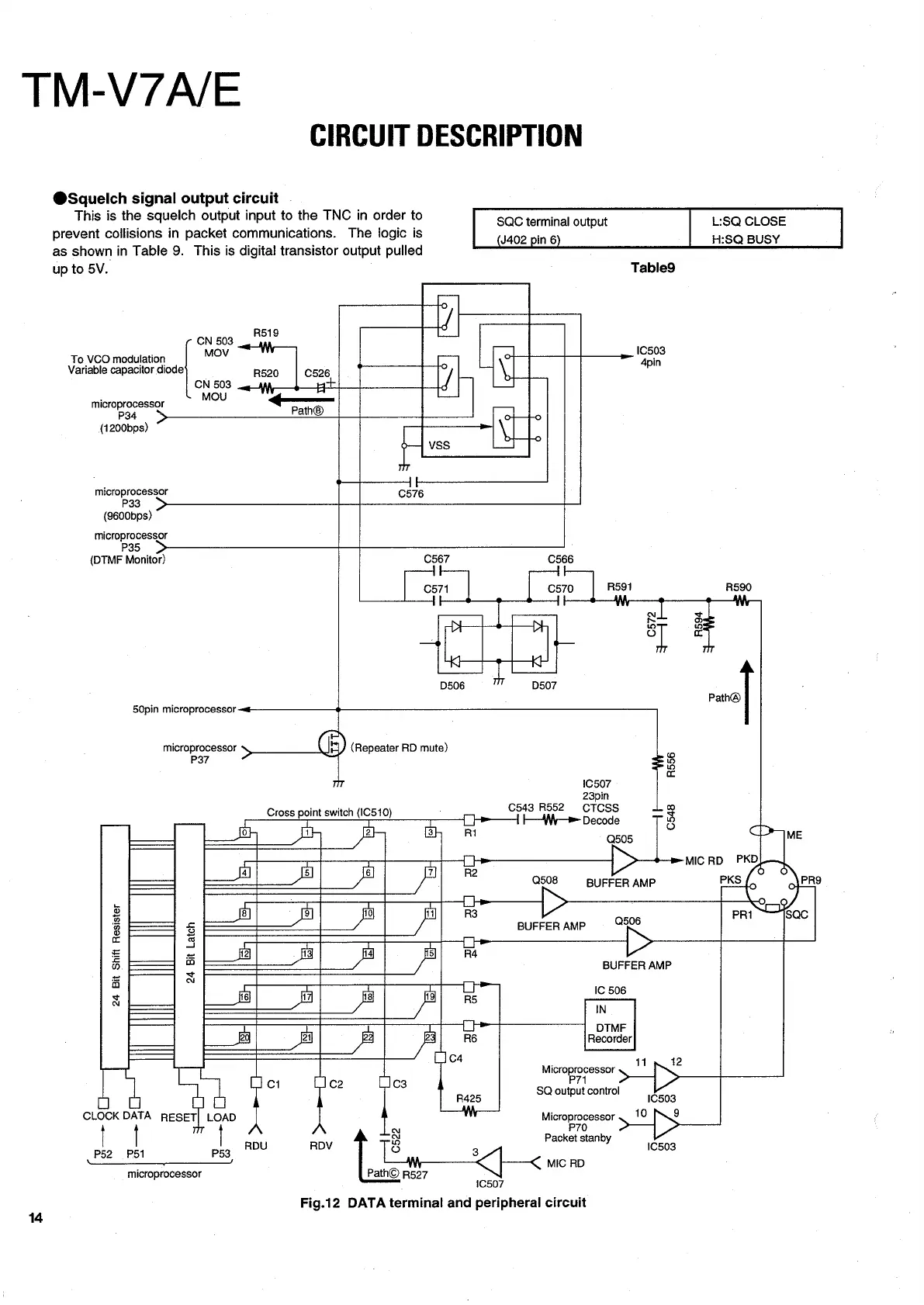

Fig.12 DATA terminal and peripheral circuit

Kenwood TM-V7A Specifications

General Specifications

VHF frequency range	144~148MHz
UHF frequency range	438~450MHz (U.S.A/Canada)
Antenna impedance	50Ω
Usable temperature range	-20°C to +60°C (-4°F to +140°F)
Power supply	13.8V DC ±15% (11.7~15.8V)
Grounding method	Negative-ground
Frequency stability	±3ppm (-10°C to +50°C)
Dimensions (W x H x D)	140 x 54.5 x 205.5 mm

Transmitter Specifications

High power output	50W (VHF) / 35W (UHF)
Mid power output	Approx. 10W
Low power output	Approx. 5W
Spurious emissions	-60dB or less
Maximum frequency deviation	±5kHz
Audio distortion	3% or less (at 60% modulation)
Microphone impedance	600Ω

Receiver Specifications

Circuitry	Double conversion
Intermediate frequency (1st / 2nd)	38.85MHz / 450kHz and 45.05MHz / 455kHz
Sensitivity (VHF or UHF band)	0.16μV or less (12dB SINAD)
Sensitivity (Sub VHF or UHF band)	0.25μV or less
Selectivity (-6dB)	12kHz or more
Selectivity (-60dB)	28kHz or less
Squelch sensitivity	0.1μV or less
Audio output	2W or higher (8 ohms, 5% distortion)
Audio output impedance	8Ω

Weight and Dimensions

Weight	1.2 kg (2.6 lb)
Dimensions (W x H x D)	5.51" x 2.15" x 8.09"
