Kenwood TM-V7A Service Manual

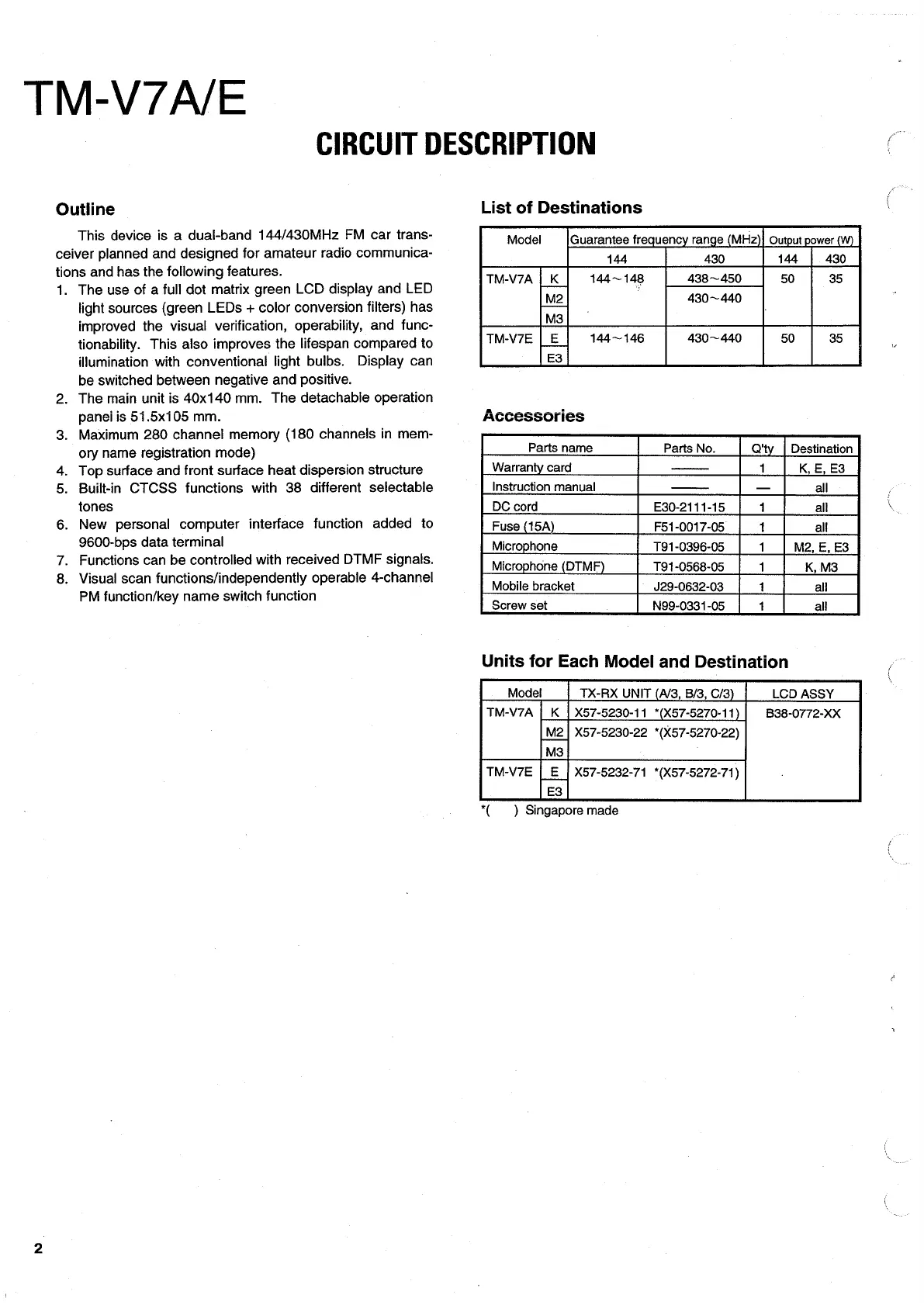

TM-V7A/E
CIRCUIT DESCRIPTION
Outline
This device is a dual-band 144/430MHz FM car trans-
ceiver planned and designed for amateur radio communica-
tions and has the following features.
1.
The use of a full dot matrix green LCD display and LED
light sources (green LEDs + color conversion filters) has
improved the visual verification, operability, and func-
tionability. This also improves the lifespan compared to
illumination with conventional light bulbs. Display can
be switched between negative and positive.
The main unit is 40x140 mm. The detachabie operation
panei is 51.5x105 mm.
Maximum 280 channel memory (180 channels in mem-
ory name registration mode)
Top surface and front surface heat dispersion structure
Built-in CTCSS functions with 38 different selectable
tones
New personal computer interface function added to
9600-bps data terminal
Functions can be controlled with received DTMF signals.
Visual scan functions/independently operable 4-channel
PM function/key name switch function
List of Destinations
Model Guarantee frequency range (MHz) Output power (W)
144 430 144 430
TM-V7A | K 144~148 438 ~ 450 50 35
M2 430~440
M3
TM-V7E | E 144~146 430~440 50 35
E3
Accessories
Parts name Parts No. Q'ty_| Destination
Warranty card 1 K,E, E3
Instruction manual _ all
DC cord E30-2111-15 1 all
Fuse (15A) F51-0017-05 1 all
Microphone T91-0396-05 1 M2, E, E3
Microphone (DTMF) T91-0568-05 1 K, M3
Mobile bracket J29-0632-03 1 all
Screw set N99-0331-05 1 all
Units for Each Model and Destination
Model TX-RX UNIT (A/3, B/S, C/3) LCD ASSY
TM-V7A {_K_| X57-5230-11 *(X57-5270-11) B38-0772-XX
M2 | X57-5230-22 *(X57-5270-22)
TM-V7E |_E | X57-5232-71
E3
*(X57-5272-71)
*(
) Singapore made

Kenwood TM-V7A Specifications

General Specifications

VHF frequency range	144~148MHz
UHF frequency range	438~450MHz (U.S.A/Canada)
Antenna impedance	50Ω
Usable temperature range	-20°C to +60°C (-4°F to +140°F)
Power supply	13.8V DC ±15% (11.7~15.8V)
Grounding method	Negative-ground
Frequency stability	±3ppm (-10°C to +50°C)
Dimensions (W x H x D)	140 x 54.5 x 205.5 mm

Transmitter Specifications

High power output	50W (VHF) / 35W (UHF)
Mid power output	Approx. 10W
Low power output	Approx. 5W
Spurious emissions	-60dB or less
Maximum frequency deviation	±5kHz
Audio distortion	3% or less (at 60% modulation)
Microphone impedance	600Ω

Receiver Specifications

Circuitry	Double conversion
Intermediate frequency (1st / 2nd)	38.85MHz / 450kHz and 45.05MHz / 455kHz
Sensitivity (VHF or UHF band)	0.16μV or less (12dB SINAD)
Sensitivity (Sub VHF or UHF band)	0.25μV or less
Selectivity (-6dB)	12kHz or more
Selectivity (-60dB)	28kHz or less
Squelch sensitivity	0.1μV or less
Audio output	2W or higher (8 ohms, 5% distortion)
Audio output impedance	8Ω

Weight and Dimensions

Weight	1.2 kg (2.6 lb)
Dimensions (W x H x D)	5.51" x 2.15" x 8.09"
