Kenwood TM-V7A Service Manual

TM-V7A/E
A

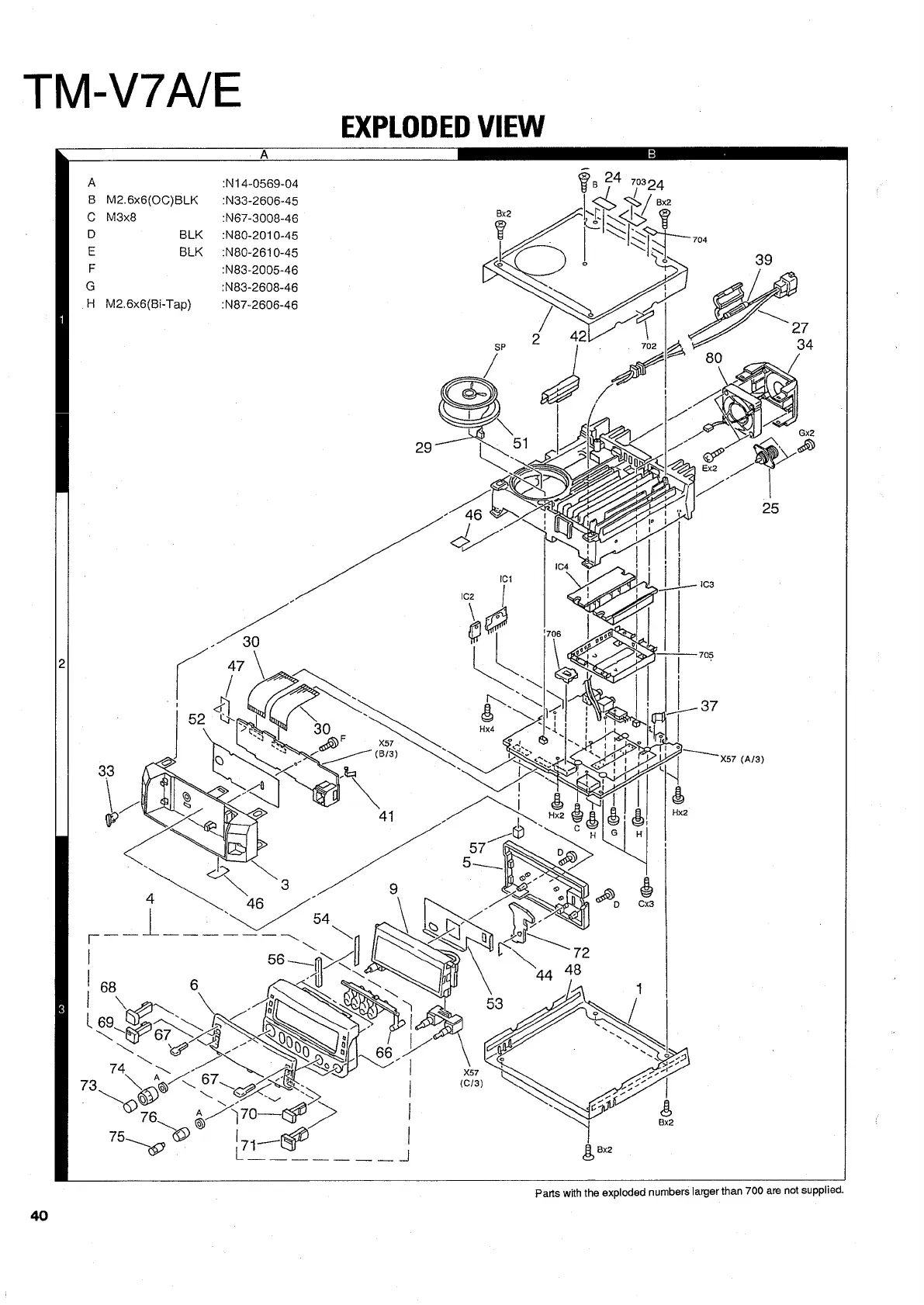

EXPLODED VIEW
A :N14-0569-04
B M2.6x6(OC)BLK ‘N33-2606-45
C M3x8 :N67-3008-46
D BLK — :N80-2010-45
E BLK — :N80-2610-45
F :N83-2005-46
G :N83-2608-46
H M2.6x6(Bi-Tap) :N87-2606-46
N
wey q “= xg7 (A/3)
SSK &
Hx2
\ Ae 67 aL
os
SN
DAOSS,
76 &- 0-H" >
“Or |
D5 1 —-F
Parts
with
the
exploded
numbers
larger
than
700
are
not
supplied.
40

Kenwood TM-V7A Specifications

General Specifications

VHF frequency range	144~148MHz
UHF frequency range	438~450MHz (U.S.A/Canada)
Antenna impedance	50Ω
Usable temperature range	-20°C to +60°C (-4°F to +140°F)
Power supply	13.8V DC ±15% (11.7~15.8V)
Grounding method	Negative-ground
Frequency stability	±3ppm (-10°C to +50°C)
Dimensions (W x H x D)	140 x 54.5 x 205.5 mm

Transmitter Specifications

High power output	50W (VHF) / 35W (UHF)
Mid power output	Approx. 10W
Low power output	Approx. 5W
Spurious emissions	-60dB or less
Maximum frequency deviation	±5kHz
Audio distortion	3% or less (at 60% modulation)
Microphone impedance	600Ω

Receiver Specifications

Circuitry	Double conversion
Intermediate frequency (1st / 2nd)	38.85MHz / 450kHz and 45.05MHz / 455kHz
Sensitivity (VHF or UHF band)	0.16μV or less (12dB SINAD)
Sensitivity (Sub VHF or UHF band)	0.25μV or less
Selectivity (-6dB)	12kHz or more
Selectivity (-60dB)	28kHz or less
Squelch sensitivity	0.1μV or less
Audio output	2W or higher (8 ohms, 5% distortion)
Audio output impedance	8Ω

Weight and Dimensions

Weight	1.2 kg (2.6 lb)
Dimensions (W x H x D)	5.51" x 2.15" x 8.09"
