Kenwood TM-V7A Service Manual

MIC
(T91-0396-05) : M2, E,
(T91-0568-05) : K, M3

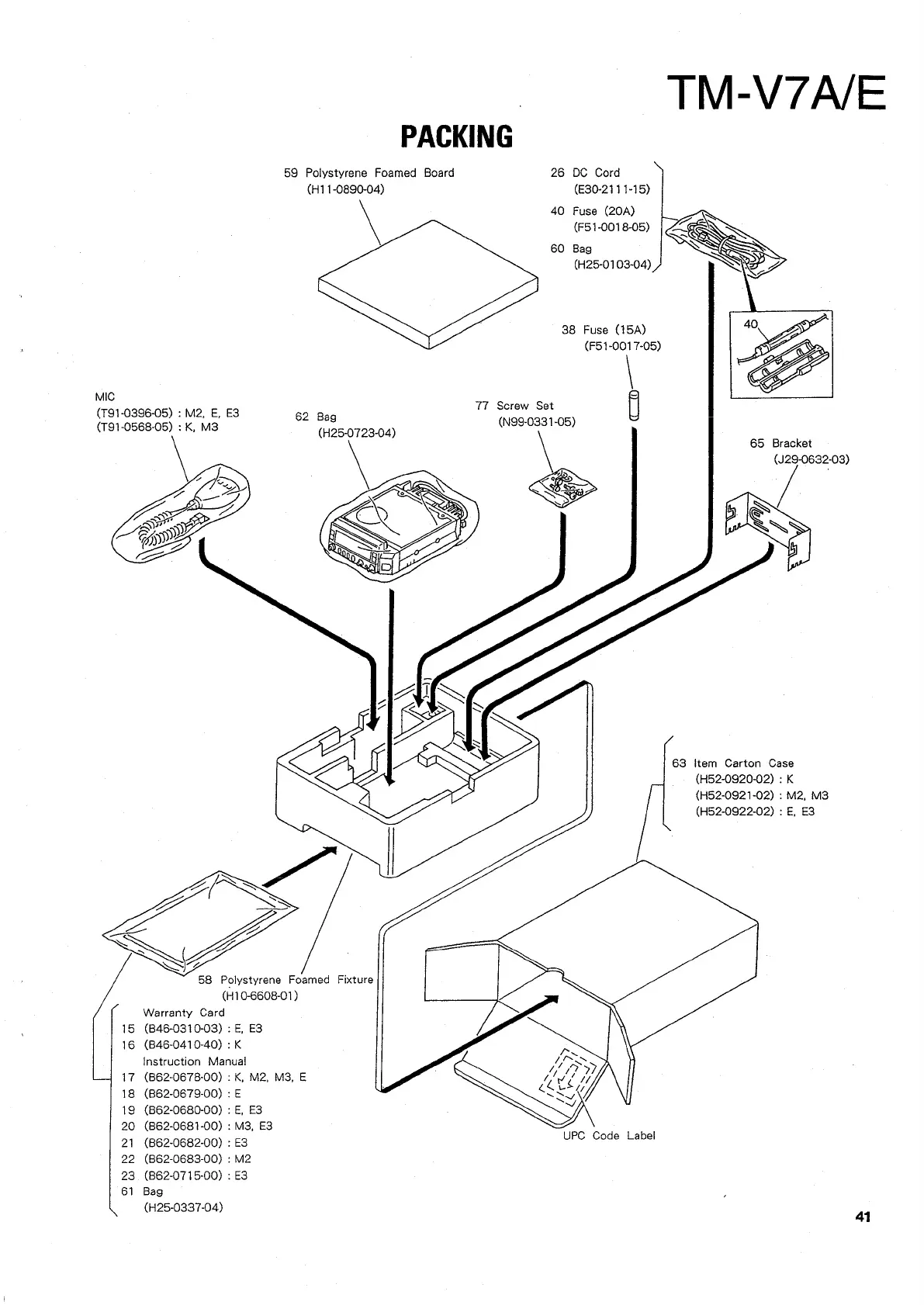

58 Polystyrene Foamed Fixture
TM-V7A/E
PACKING
59 Polystyrene Foamed Board 26 DC Cord
ES 62 Bag
(H11-0890-04) (E30-21 11-15)
40 Fuse (20A)
\ (F51-0018-05)
60 Bag
(H25-0103-04)
38 Fuse (154A)
(F51-001 7-05)
|
77 Screw Set i
(N99-0331-05) “
(H25-0723-04)
65 Bracket
(J29-0632-03)
S
BIS
a
63 ttem Carton Case
(H52-0920-02) : K
(H52-0921-02) : M2, M3
a
LES
(H10-6608-01)
15 (B46-0310-03)
16 (B46-0410-40)
17 (B62-0678-00)
18 (B62-0679-00)
19 (B62-0680-00)
20 (B62-0681-00)
21 (B62-0682-00)
22 (B62-0683-00)
23. (B62-0715-00)
61 Bag
(H25-0337-04)
Warranty Card
:E, E3
iK
Instruction Manual
2K, M2, M3, E
:E
:E, £3
: M3, E3
:E3
:M2
:E3
UPC Code Label
41

Kenwood TM-V7A Specifications

General Specifications

VHF frequency range	144~148MHz
UHF frequency range	438~450MHz (U.S.A/Canada)
Antenna impedance	50Ω
Usable temperature range	-20°C to +60°C (-4°F to +140°F)
Power supply	13.8V DC ±15% (11.7~15.8V)
Grounding method	Negative-ground
Frequency stability	±3ppm (-10°C to +50°C)
Dimensions (W x H x D)	140 x 54.5 x 205.5 mm

Transmitter Specifications

High power output	50W (VHF) / 35W (UHF)
Mid power output	Approx. 10W
Low power output	Approx. 5W
Spurious emissions	-60dB or less
Maximum frequency deviation	±5kHz
Audio distortion	3% or less (at 60% modulation)
Microphone impedance	600Ω

Receiver Specifications

Circuitry	Double conversion
Intermediate frequency (1st / 2nd)	38.85MHz / 450kHz and 45.05MHz / 455kHz
Sensitivity (VHF or UHF band)	0.16μV or less (12dB SINAD)
Sensitivity (Sub VHF or UHF band)	0.25μV or less
Selectivity (-6dB)	12kHz or more
Selectivity (-60dB)	28kHz or less
Squelch sensitivity	0.1μV or less
Audio output	2W or higher (8 ohms, 5% distortion)
Audio output impedance	8Ω

Weight and Dimensions

Weight	1.2 kg (2.6 lb)
Dimensions (W x H x D)	5.51" x 2.15" x 8.09"
