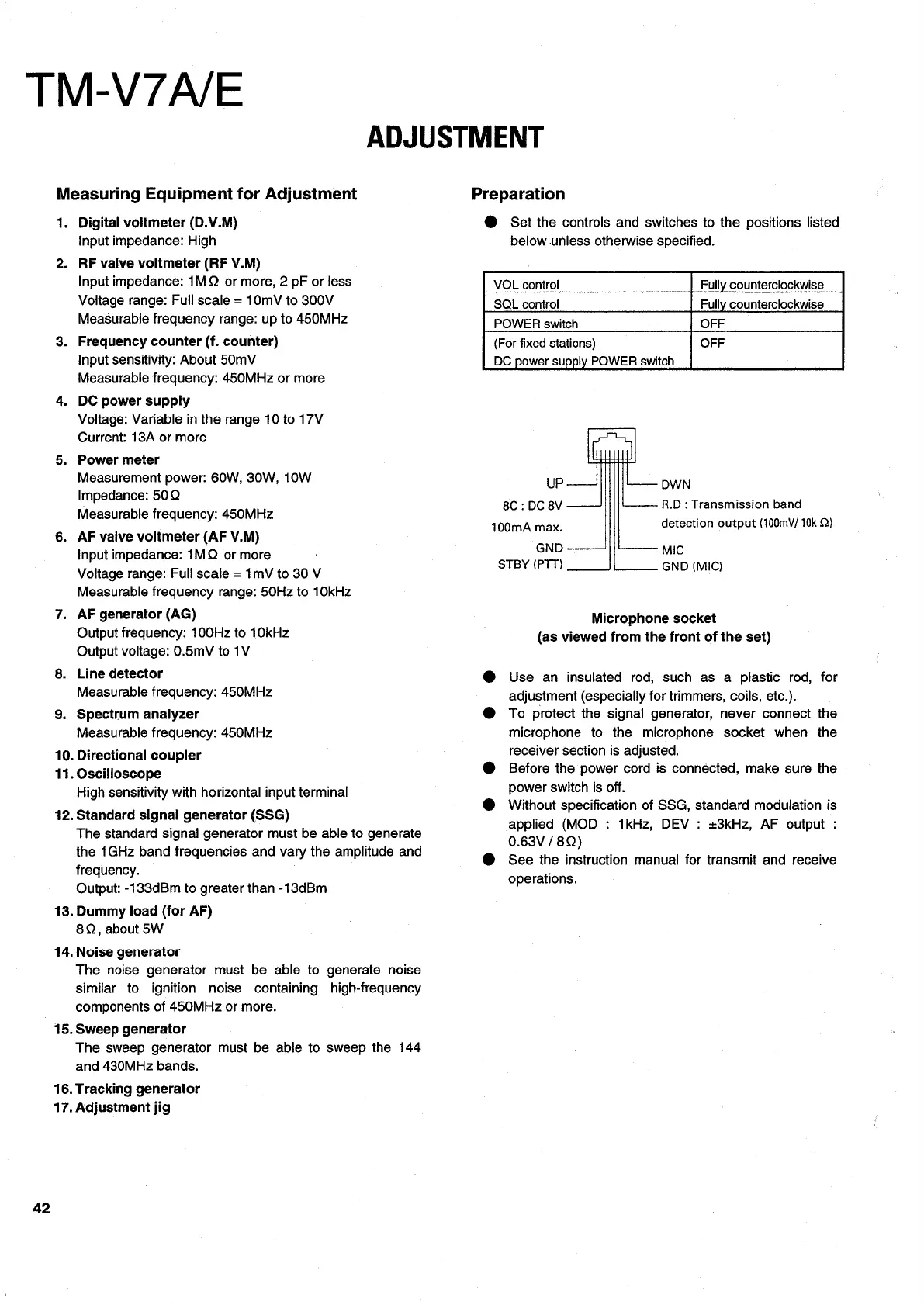

TM-V7A/E
42
ADJUSTMENT
Measuring
Equipment
for
Adjustment
1.
Digital
voltmeter
(D.V.M)
Input
impedance:
High
2.
RF
valve
voltmeter
(RF
V.M)
input
impedance:
1MQ
or
more,
2
pF
or
jess
Voltage
range:
Full
scale
=
10mV
to
300V
Measurable
frequency
range:
up
to
450MHz
3.
Frequency
counter
(f.
counter)
Input
sensitivity:
About
50mV
Measurable
frequency:
450MHz
or
more
4.
DC
power
supply
Voltage:
Variable
in
the
range
10
to
17V
Current:
13A
or
more
5.
Power
meter
Measurement
power:
GOW,
SOW,
10W
Impedance:
500
Measurable
frequency:
450MHz
6.
AF
vaive
voltmeter
(AF
V.M)
Input
impedance:
1MQ
or
more
Voltage
range:
Full
scale
=
1mV
to
30
V
Measurable
frequency
range:
50Hz
to
10kHz
7.
AF
generator
(AG)
Output
frequency:
100Hz
to
10kHz
Output
voltage:
0.5mV
to
1V
8.
Line
detector
Measurable
frequency:
450MHz
9.
Spectrum
analyzer
Measurable
frequency:
450MHz
10.
Directional
coupler
11.
Oscilloscope
High
sensitivity
with
horizontal
input
terminal
12.
Standard
signal
generator
(SSG)
The
standard
signal
generator
must
be
able
to
generate
the
1GHz
band
frequencies
and
vary
the
amplitude
and
frequency.
Output:
-133dBm
to
greater
than
-13dBm
13.
Dummy
load
(for
AF)
8Q,
about
5W
14.
Noise
generator
The
noise
generator
must
be
able
to
generate
noise
similar
to
ignition
noise
containing
high-frequency
components
of
450MHz
or
more.
15.
Sweep
generator
The
sweep
generator
must
be
able
to
sweep
the
144
and
430MHz
bands.
16.
Tracking
generator
17.
Adjustment
jig
Preparation
@
Set
the
controls
and
switches
to
the
positions
listed
below
unless
otherwise
specified.
VOL
control
Fully
counterclockwise
SQL
control
Fully
counterclockwise
POWER
switch
OFF
(For
fixed
stations)
_
OFF
DC
power
supply
POWER
switch
Cann
UP
DWN
8c
:
DC
8V
R.D
:
Transmission
band
100mMA
max.
detection
output
(100mV/
10k
Q)
GND
MIC
STBY
(PTT)
GND
(MIC)
Microphone
socket
(as
viewed
from
the
front
of
the
set)
@
Use
an
insulated
rod,
such
as
a
plastic
rod,
for
adjustment
(especially
for
trimmers,
coils,
etc.).
@
To
protect
the
signal
generator,
never
connect
the
microphone
to
the
microphone
socket
when
the
receiver
section
is
adjusted.
Before
the
power
cord
is
connected,
make
sure
the
power
switch
is
off.
Without
specification
of
SSG,
standard
modulation
is
applied
(MOD
:
1kHz,
DEV
:
+3kHz,
AF
output
:
0.63V
/8Q)
@
See
the
instruction
manual
for
transmit
and
receive
operations.
