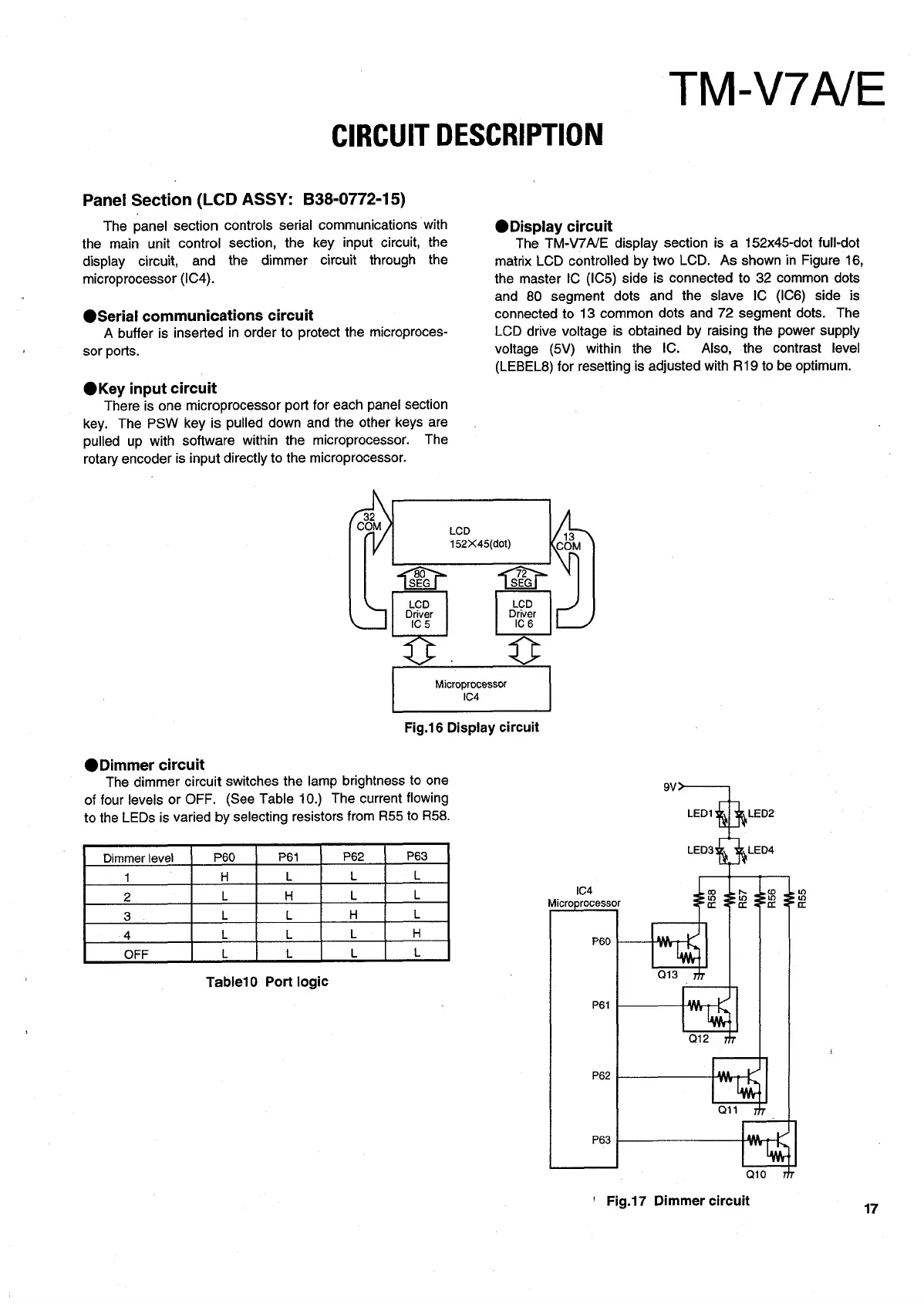

CIRCUIT
DESCRIPTION
Panel
Section
(LCD
ASSY:
B38-0772-15)
The
panel
section
controls
serial
communications
with
the
main
unit
control
section,
the
key
input
circuit,
the
display
circuit,
and
the
dimmer
circuit
through
the
microprocessor
(iC4).
@Serial
communications
circuit
A
buffer
is
inserted
in
order
to
protect
the
microproces-
sor
ports.
@Key
input
circuit
There
is
one
microprocessor
port
for
each
panel
section
key.
The
PSW
key
is
pulled
down
and
the
other
keys
are
pulled
up
with
software
within
the
microprocessor.
The
rotary
encoder
is
input
directly
to
the
microprocessor.
@Display
circuit
The
TM-V7AVE
display
section
is
a
152x45-dot
full-dot
matrix
LCD
controlled
by
two
LCD.
As
shown
in
Figure
16,
the
master
IC
(IC5)
side
is
connected
to
32
common
dots
and
80
segment
dots
and
the
slave
IC
(IC6)
side
is
connected
to
13
common
dots
and
72
segment
dots.
The
LCD
drive
voltage
is
obtained
by
raising
the
power
supply
voltage
(5V)
within
the
IC.
Also,
the
contrast
level
(LEBEL8)
for
resetting
is
adjusted
with
R19
to
be
optimum.
LCD
152X45(dot)
Microprocessor
1C4
Fig.16
Display
circuit
@Dimmer
circuit
The
dimmer
circuit
switches
the
lamp
brightness
to
one
of
four
levels
or
OFF.
(See
Table
10.)
The
current
flowing
to
the
LEDs
is
varied
by
selecting
resistors
from
R55
to
R58.
Dimmer
level
P60
P61
P62
P63
1
H
L
L
L
2
L
H
L
L
3
L
L
H
L
4
L
L
L
H
OFF
L
L L L
Table10
Port
logic
OV
LED1
LED2
LED3
LED4
IC4
£2
S
tg
a)
Microprocessor
Se
Se
Sr
Fe
P60
Q13°
ont
P61
Wy
K
Q12
>
{
P62
Wer
"
Qi
om
P63
aa
'
Fig.17
Dimmer
circuit
M-V7A/E
17
