KEOFITT W9 USER MANUAL V.4 PAGE 32
10.MOUNTING INSTRUCTIONS
10.1 Location

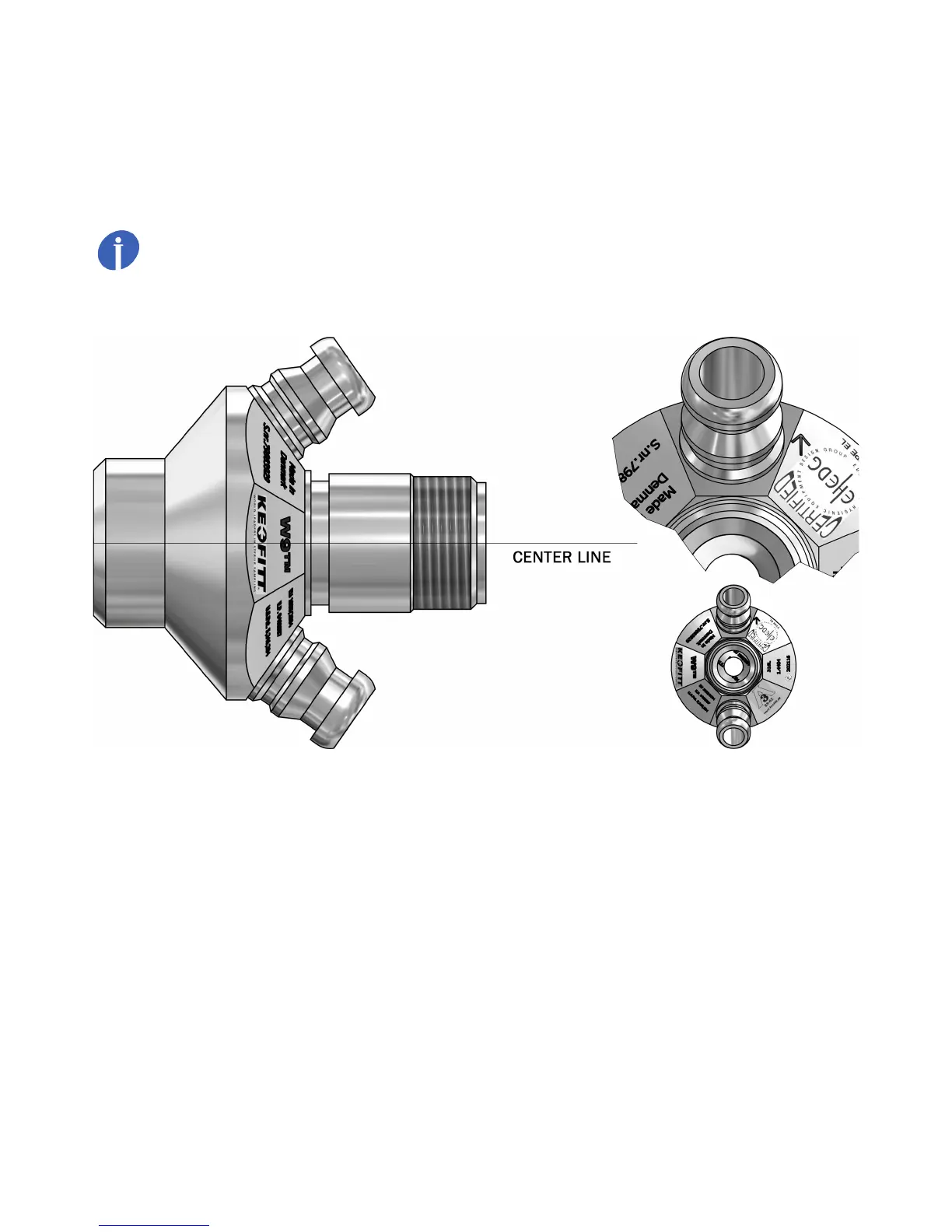

The valve should always be located with its centre line in a horizontal position and with the two hose
pieces in a vertical position with the arrow pointing upwards as shown on the gure. Only with this
orientation the valve will be self draining.
IMPORTANT
• The tank-side of the valve body must be positioned ush with the inside of the tank or the pipe in
order to avoid any dead space.
10.2 Before welding
Remember to disassemble the valve body and head. The valve body and head must be separated during
welding. Rubber plugs, chain and membrane must be removed from the valve body, as otherwise heat
from the welding process will damage them.
