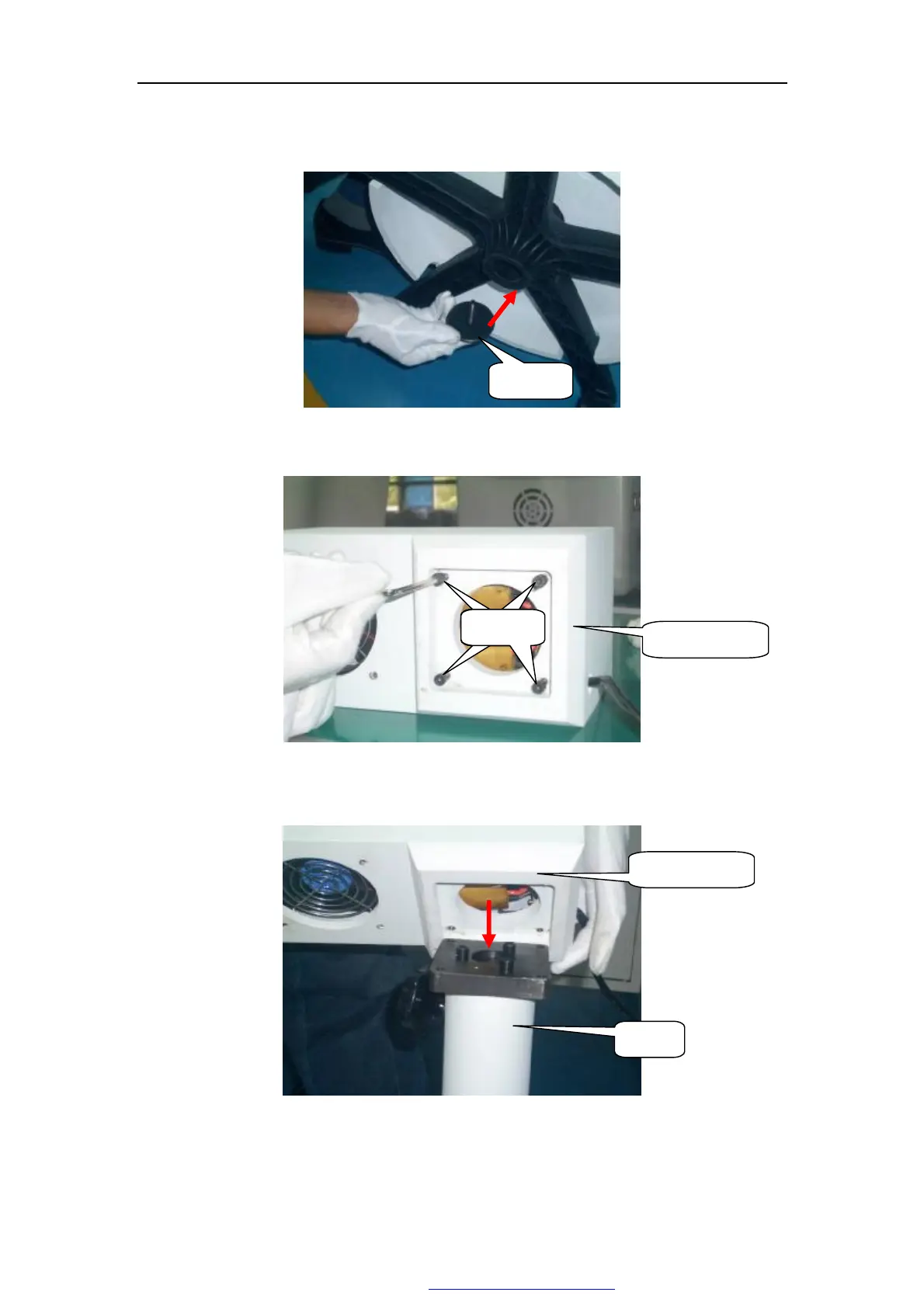

3. Fix the screw A to the position of the bottom which the red arrows indicate, and
tighten：
Pic 3-3
4. Remove the screws B in the bottom of light source:
Pic 3-4
5. Fix the light source to the top of strut：
Pic 3-5
Screw A
螺钉 螺钉 螺钉 Screw B
Light source
strut
Light source
