22
EN
22
4.5 - Connecting the radio receiver
Connect the radio receiver, removing the plastic cover and taking
care to position it as shown in the diagram in point 2.1.
For programming, follow the receiver instructions, remembering that
the 4 outputs which can be activated are:
OUTPUT 1 = STEP BY STEP, OUTPUT 2 = PEDESTRIAN, OU-
TPUT 3 = OPEN, OUTPUT 4 = CLOSE.
UP
UP
UP
UP
UP UP
UP
DOWN
DOWN
DOWN
DOWN
DOWN DOWN
DOWN
MENU
MENU
MENU
MENU
MENU MENU
MENU
After accessing the BASIC
MENU, press the + and – keys
to scroll through the functions.
Press the MENU key quickly to
quit the menu.
Press the MENU key for 1 se-
cond to access the basic menu.
Press the + and – keys to scroll
through the functions to modify
other parameters.
Press the + and – keys to to
modify the value.
Press the MENU key for 1 se-
cond to display the parameter
in order to save the modied
value, or MENU quickly to quit
the function without saving.
To access the value modica-
tion function, press the MENU
key for 1 second, until the va-
lue starts to ash quickly.

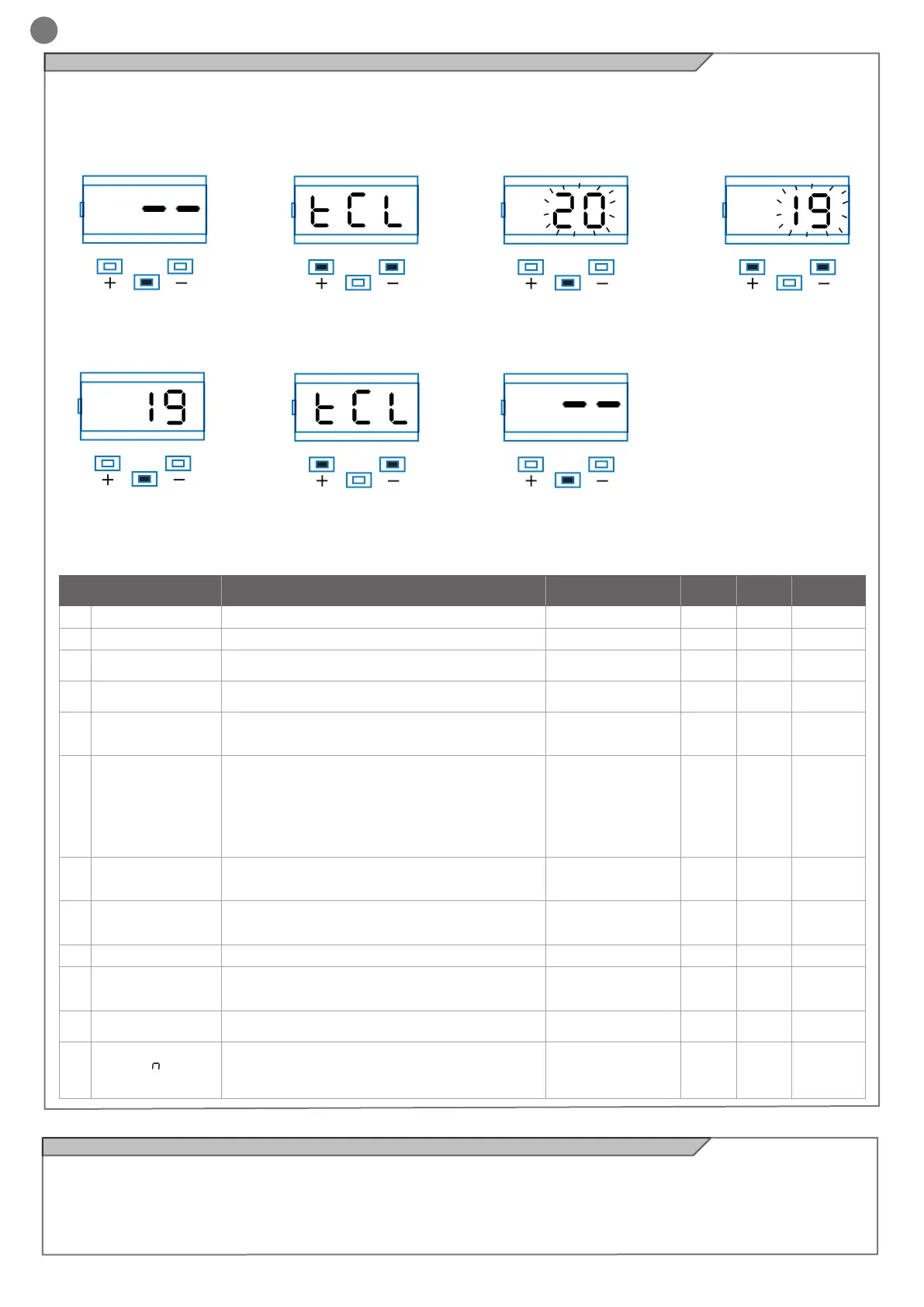

Exampling of modifying a BASIC MENU parameter
4.4 - Customising the system - BASIC MENU
If necessary, users may select a BASIC MENU which allows modi-
cation of the control unit’s basic parameters. To select the BASIC
MENU proceed as described below.
WARNING: to be certain of accessing the NORMAL OPERATION
display state, the starting point for accessing the BASIC MENU,
press the MENU key twice
PARAMETERS DESCRIPTION
DEFAULT
CONFIGURATION
MIN MAX UNIT
1
TCL
Automatic reclosing time (0 = disabled) 20 0 900 s
2
ttr
Reclosing after transit time (0 = disabled) 0 0 30 s
3
SEI
Obstacle sensitivity
(0 = disabled)
0 0 100
% (steps
of 1)
4
trq
Motor force (torque at operating speed) 100 10 100
% (steps
of 1)
5
SSL
Deceleration mode
0 = deceleration 1/3 (slow)
1 = deceleration 2/3 (fast)
0 0 1
6
SbS
SS conguration:
0 = Normal (OP-ST-CL-ST-OP-ST…)
1 = Alternate STOP (OP-ST-CL-OP-ST-CL…)
2 = Alternate (OP-CL-OP-CL…)
3 = Apartment block – timer
4 = Apartment block with immediate reclosing
0 0 4
7
bLt
Response after black out
0 = no action, as per before failure
1 = Closing
0 0 1
8
SST
Soft start (slow start-up)
0 = disabled
1 = enabled
0 0 1
9
dLY
Second leaf delay 2 0 300 s
10
LSI
Deceleration range
P = personalised from learning cycle
0...100% = travel percentage
15 0 100
% (steps
of 1)
11
ASL
Anti-slip: extension of set work time (useful in areas
subject to strong winds)
0 0 300 s
12
nMt
Number of motors
1 = 1 motor
2 = 2 motors
1 0 1
