Key Automation HALO 900HA7 User Manual

EN
6

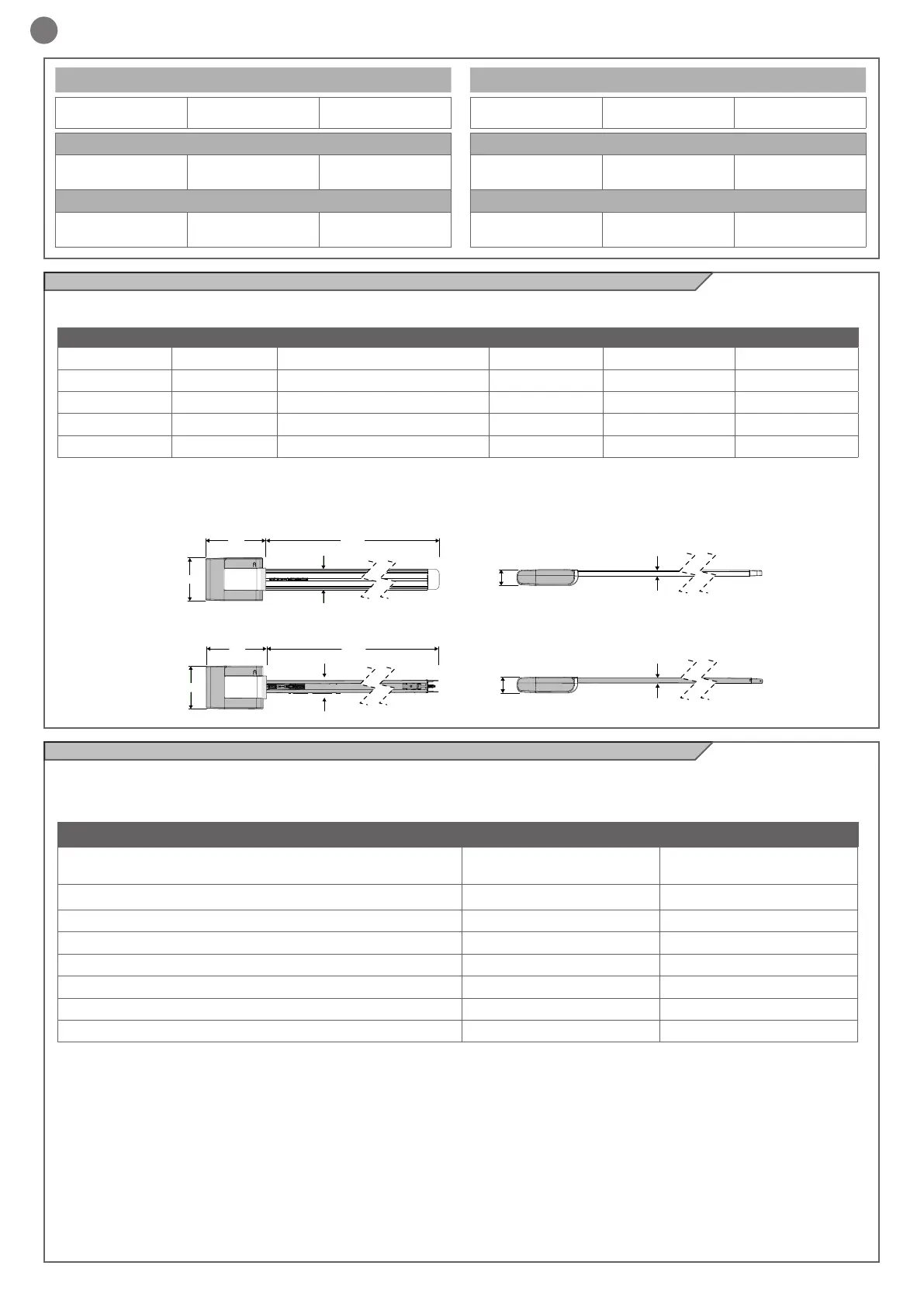

2.4 - Technical specications
USE LIMITS
Sectional
Up-and-over
non slide-away
Up-and-over
slide-away
900HA7 with 3 m rail
H max = 2.6m
S max=10m²
H max = 3m
S max=9m²
H max = 2.4m
S max=9m²
900HA7 with 4 m rail
H max = 3.6m
S max=11m²
H max = 3.4m
S max=10m²
H max = 3.4m
S max=10m²
USE LIMITS
Sectional
Up-and-over
non slide-away
Up-and-over
slide-away
900HA10, 900HA10E, 900HA10L with 3 m rail
H max = 2.6m
S max=13m²
H max = 3m
S max=13m²
H max = 2.4m
S max=13m²
900HA10, 900HA10E, 900HA10L with 4 m rail
H max = 3.6m
S max=16m²
H max = 3.4m
S max=14m²
H max = 3.4m
S max=14m²
The data shown may vary according to the sliding and balancing performance of the door and the type of rail used.
Recommended model and use - Available rails and dimensions
WITH RAL30
WITH OTHER
RAILS
MODEL MATERIAL NOTES DRIVE TYPE TOTAL LENGTH RAIL TRAVEL
900RAL30 Aluminium With integrated LED lighting Belt
3090 mm (1x3m) 2660 mm
900RAL40 Aluminium With integrated LED lighting Belt
4090 mm (1x4m) 3660 mm
900RAB3X1 Steel Belt
3100 mm (3x1.03m) 2670 mm
900RAB3 Steel Belt
3100 mm (1x3.1m) 2670 mm
900RAB4 Steel Belt
4100 mm (1x4.1m) 3670 mm
2.5 - List of cables required
In a typical plant, the cables necessary for connection of the various
devices are shown in the cable list table. The cables used must be
suitable for the type of installation, for example we recommend a
H03VV-F type cable for indoor installation or H07RN-F for outdoor
installation.
CABLE LIST TABLE
CONNECTION CABLE TYPE MAX LENGTH
PERMITTED
Power supply line Schuko CEE 7/4
Flashing light, courtesy light 1 x cable 3 x 0.5 mm
2
20 m
Antenna 1 x RG58 type cable 20 m (recommended < 5 m)
Transmitter photocells 1 x cable 2 x 0.5 mm
2
20 m
Receiver photocells 1 x cable 4 x 0.5 mm
2
20 m
Radio sensitive edge (*) 1 x cable 4 x 0.5 mm
2
<2 m
Key selector 1 x cable 2 x 0.5 mm
2
20 m
235
330 3065
114
235
330 3075
70,5
84
31
84
28
If there is not a suitable power outlet near the equipment, contact
qualied personnel for its installation.
(*): refer to the manufacturer’s instructions
