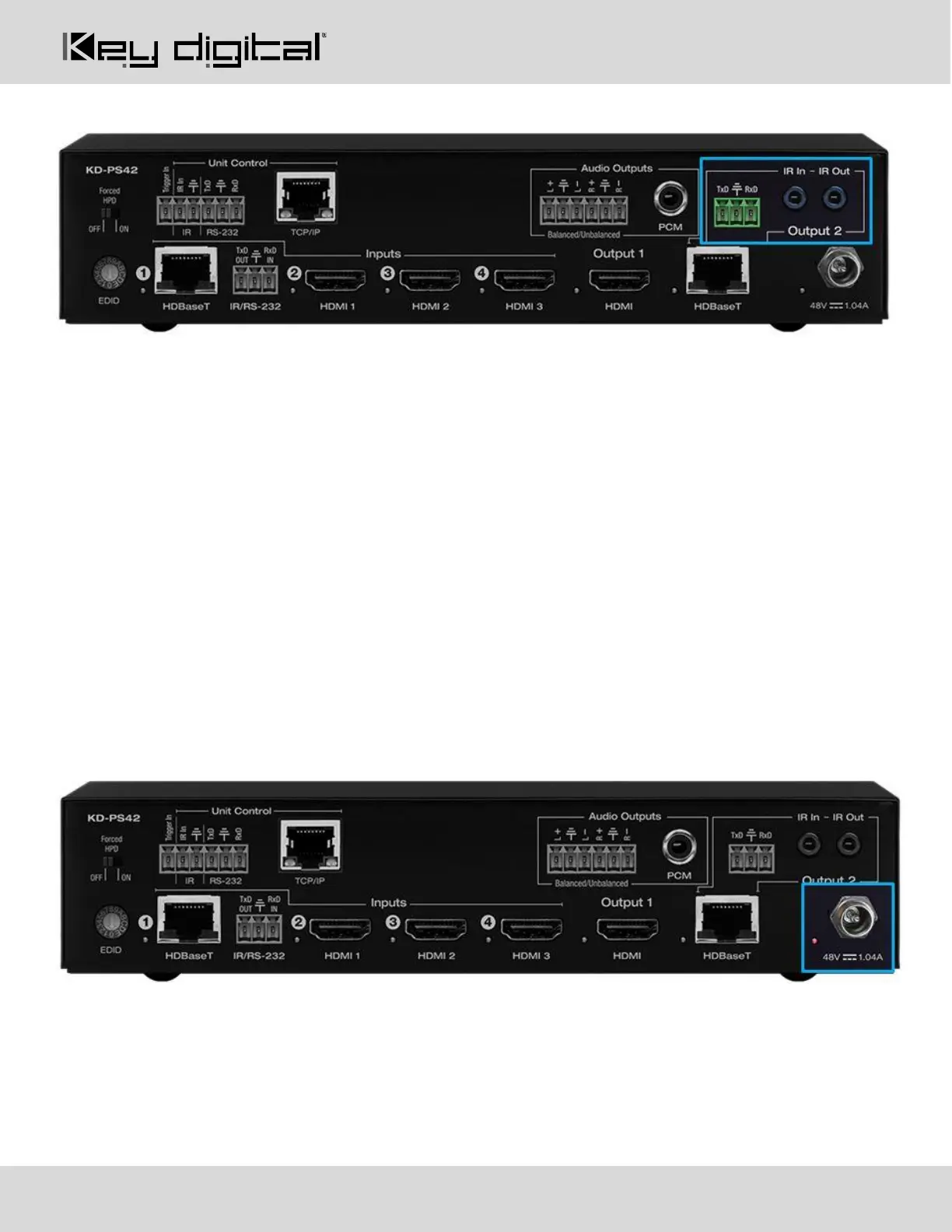

HDBaseT Control Pass-Thru Ports
Output 2 HDBaseT IR In & Out Pass-Thru
• 2x 3.5mm mono
• Pinout
o Tip = Signal
o Sleeve = Ground
• IR In corresponds with IR Out port of KD-X40MRx
• IR Out corresponds with IR In port of KD-X40MRx
• Maximum supported IR burst frequency = 55kHz
Output 2 HDBaseT RS-232 Pass-Thru
• 3-pin terminal block
• Pinout:
o Pin 1 = RS-232 Tx Data
o Pin 2 = Ground
o Pin 3 = RS-232 Rx Data
• Corresponds with RS-232 control ports of KD-X40MRx
Power
• 48V/1.04A (50W) Power Supply
• Provides power to KD-PS42, and KD-X40MRx.
