General Operation
◆Switching the E-bike System On/Off
Briefly press the power button to switch on the E-bike system.
When display is on, hold the power button for 2s, the E-bike system will be switched off and
no longer uses the battery power.
When switching off the E-bike system, the leakage current is less than 1 μA.
■When parking the E-bike for more than 5 minutes, the E-bike system switches off
automatically.
◆Display Interface
After switching on the E-bike system, the display will show real-time Speed and Trip
Distance by default. Press the “i” button to switch between following elements:
Trip (Km) →ODO (Km)→Max. Speed (Km/h)→ Avg. Speed (Km/h) →Time (Min.) .

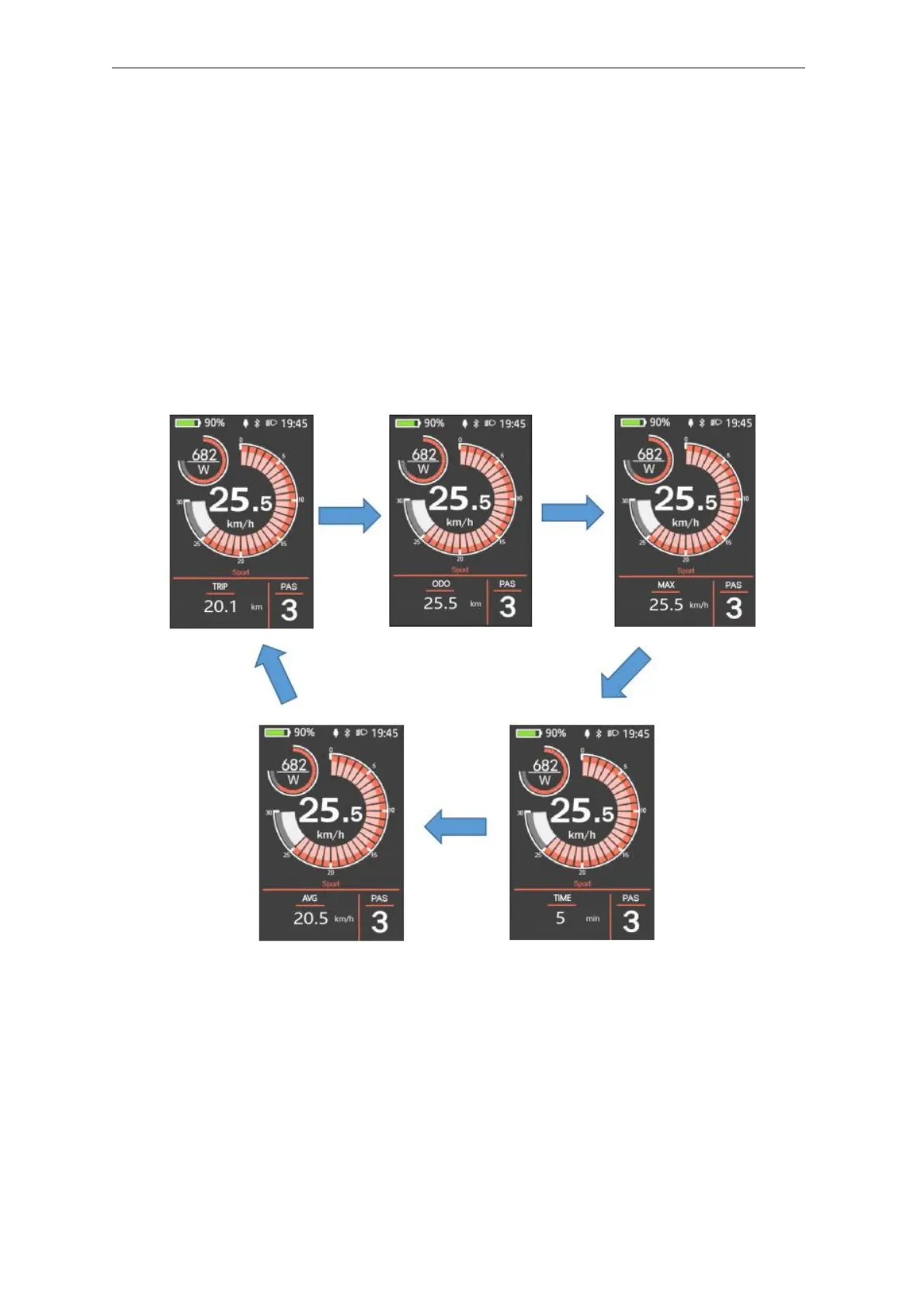

Display Indication Cycle Interface
User
Manual-KD718
