IL Series-IM_E
CE Marking
Keyence corporation has confirmed that this product complies with the essential
requirements of the applicable EC Directives, based on the following specifications.
Be sure to consider the following specifications when using this product in the
Member States of European Union.
EMC Directive
• Applicable standards EN61326-1, Class A
• The length of the sensor head cable and all I/O cables must be less than 30m.
Remarks
These specifications do not give any guarantee that the end-product with this product
incorporated complies with the essential requirements of EMC Directive. The
manufacturer of the end-product is solely responsible for the compliance on the
end-product itself according to EMC Directive.
CSA Certificate
IL series complies with the following CSA and UL standards and has been certified
by CSA (Class 2252 05 / Class 2252 85).
• Applicable standard: CAN/CSA C22.2 No.61010-1
UL61010-1
• Use the following power supply.
CSA/UL certified power supply that provides Class 2 output as defined in
the CEC (Canadian Electrical Code) and NEC (National Electrical Code), or
CSA/UL certified power supply that has been evaluated as a Limited Power
Source as defined in CAN/ CSA-C22.2 No. 60950-1/UL60950-1
• Use this product at the altitude of 2000 m or less.
• Indoor use only.
• The sensor head cable and the sensor head connection cable must be
installed with avoiding mechanical damage (e.g.: crushing).
• The power/input-output cable for amplifier unit is for internal wiring only.
• The following cables are rated 30 V.
- sensor head cable
- sensor head connection cable
- power/input-output cable for amplifier unit
Install these cables where it is separated from the circuit over 30 V.
Before using the unit, confirm that the parts and equipment listed below are included
in the package of the model you purchased.
Sensor amplifier unit
DIN rail mount type
Panel mount type
Sensor head
Sensor head
We have thoroughly inspected the package contents before shipment. However, in
the event of defective or broken items, contact your nearest KEYENCE office.
Precautions on Regulations and Standards

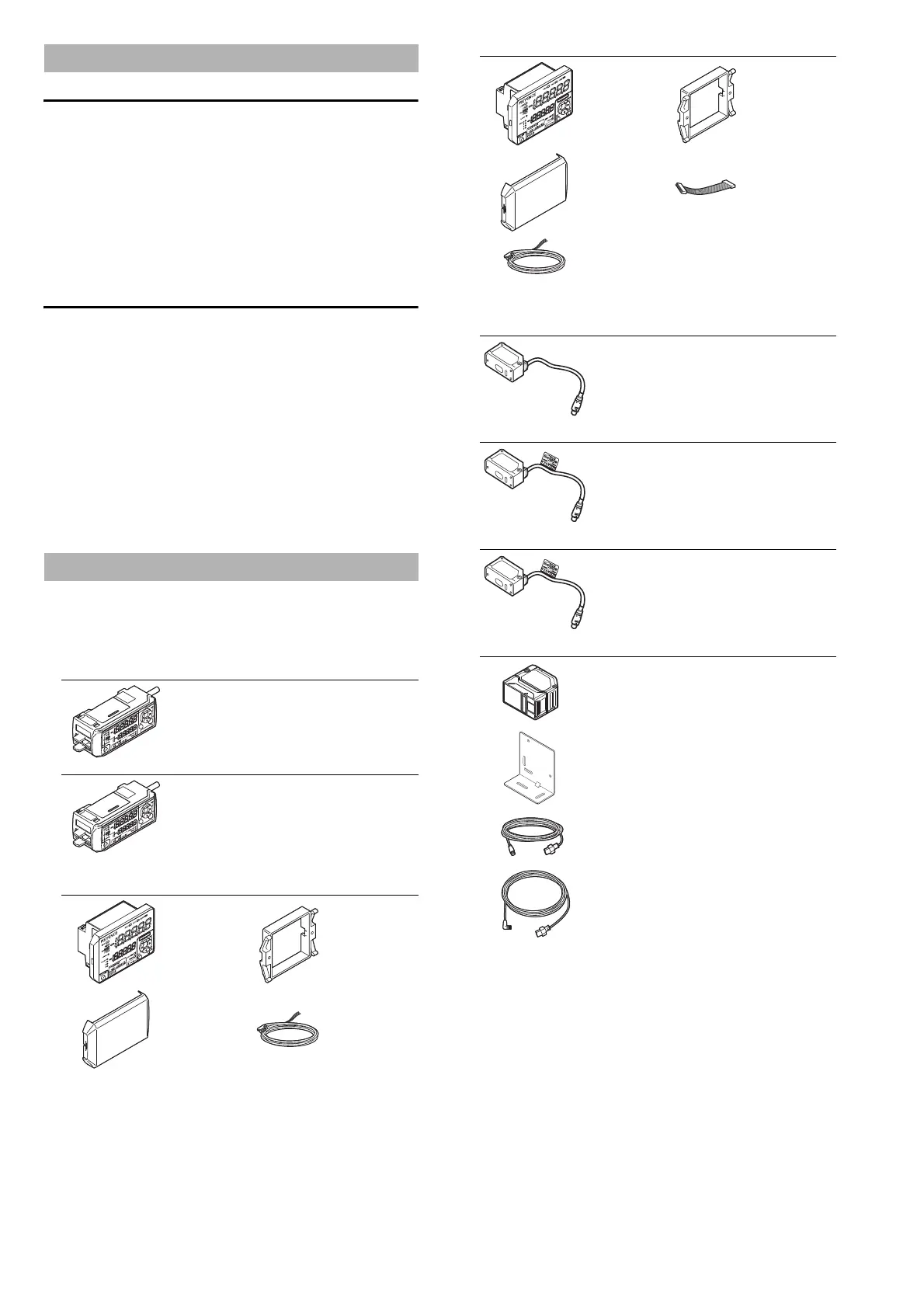

Checking the Package Contents
IL-1000 (main unit)
Amplifier x 1 Instruction manual x 1
IL-1050 (expansion unit)
Amplifier x 1
IL-1500 (main unit)
Amplifier x 1
Panel mounting
bracket
x 1
Front protection
cover
x 1
Power/Input-output
cable (2 m) x 1
(Number of cable
cores: 12)
Instruction manual x 1
IL-1550 (expansion unit)
Amplifier x 1
Panel mounting
bracket
x 1
Front protection
cover × 1
Expansion cable
(50 mm) x 1
Input-output cable (2 m) x 1
(Number of cable cores: 8)
IL-030 (30 mm width)
Sensor head x 1
Mounting bracket x 1
Insulating sheet x 1
Flat nut x 1
M3 x L30 screw x 2
IL-065 (65 mm type)/IL-100 (100 mm type)
Sensor head x 1
Mounting bracket x 1
Insulating sheet x 1
Flat nut x 1
M3 x L30 screw x 2
Laser warning sticker x 1
IL-300 (300 mm type)/IL-600 (600 mm type)
Sensor head x 1
Mounting bracket x 1
Insulating sheet x 1
Flat nut x 1
M4 x L35 screw x 2
Laser warning sticker x 1
IL-2000 (2000 mm type)
Sensor head x 1
M5 x L60 screw x 2
Laser warning sticker x 1
IL-2000 head mounting bracket x 1
Flat nut x 1
M5 x L60 screw x 2
OP-87606
Sensor head connection cable
(M8 straight connector) x 1
OP-87056 (2 m)
OP-87057 (5 m)
OP-87058 (10 m)
OP-87059 (20 m)
Sensor head connection cable
(M8 L-shaped connector) x 1
OP-87660 (2 m)
OP-87661 (5 m)
OP-87662 (10 m)
OP-87663 (20 m)
